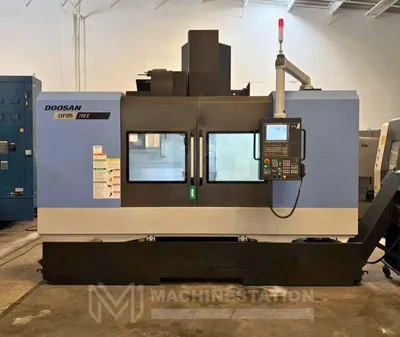

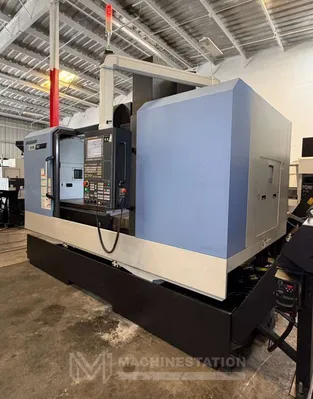

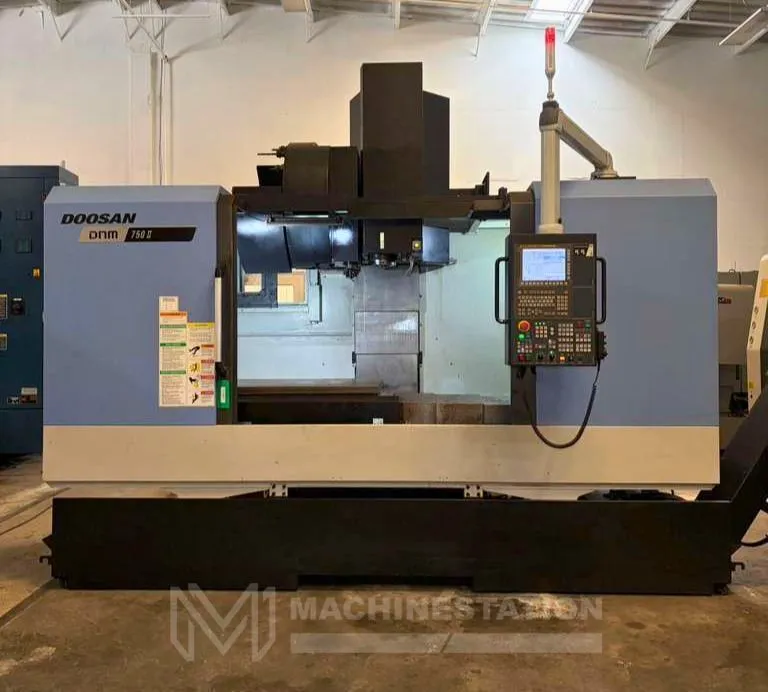

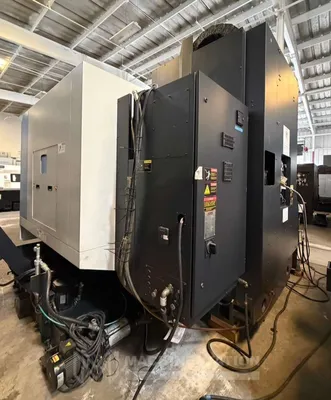

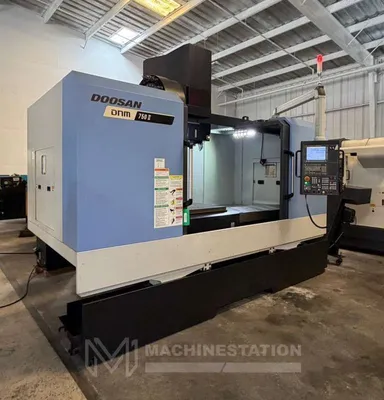

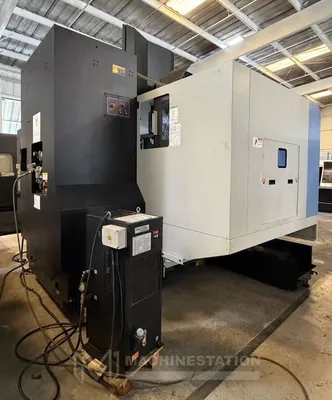

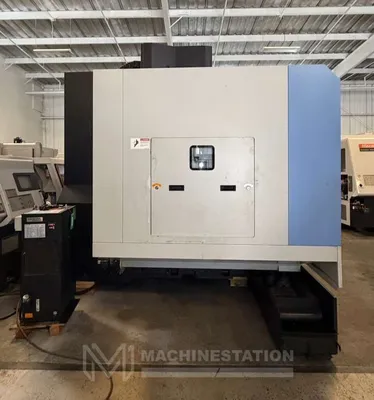

USED 2018 DOOSAN DNM 750II

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

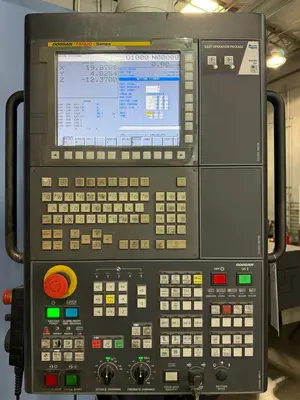

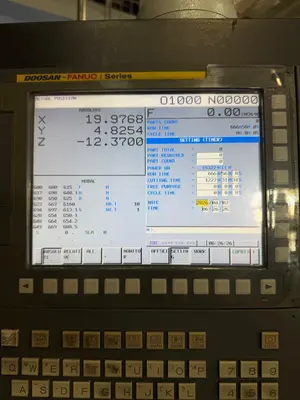

Doosan Fanuc i-Series CNC Control
1,222 Hours Cutting Time
Big Plus CAT-40 Taper Spindle
USB Drive
PCMCIA Card Slot
Automatic Lubrication System
Rigid Tapping
Coolant System

Travels:
X-Axis: 64.2″
Y-Axis: 30.0″
Z-Axis: 25.6″
Rapid Traverse Rates X & Y Axis: 1181 IPM
Rapid Traverse Rates Z Axis: 945 IPM
Spindle Nose to Table (Min.- Max.): 5.9″ – 31.5″

Table:
Length: 64.2″
Width: 29.9″
Number of Std T-Slots: 5
T-Slot Width: 4.9″ x 0.7″
Max Weight on Table: 3306 lbs

Spindle:
Taper Size: Big PLus CAT-40
Speed Range: 12,000 RPM
Spindle Power: 30 HP

Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Weight: 17.6 lbs
Max Tool Dia: 3.1″ -4.9″
Max Tool Length: 11.81″
Tool Changing Time : 1.3 Seconds

General:
Air Required: 90 psi 4 scfm

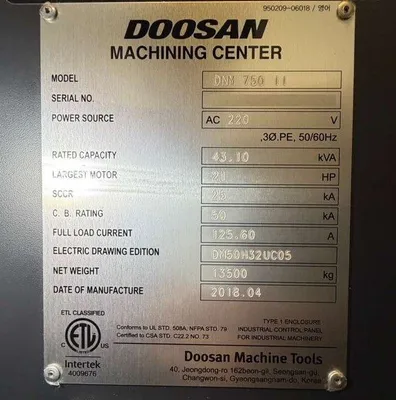

Power: 220v / 43.1 kva / 3-Phase / 50/60 Hz
Overall Dimensions: 151″ x 137″ x 125″ High Approx.
Weight: 29,760 lbs

12,000 RPM High Speed Spindle
Through Spindle Coolant
30 Station Automatic Tool changer
MPG Hand Wheel Control
Spindle Chiller Unit
Chip Conveyor
