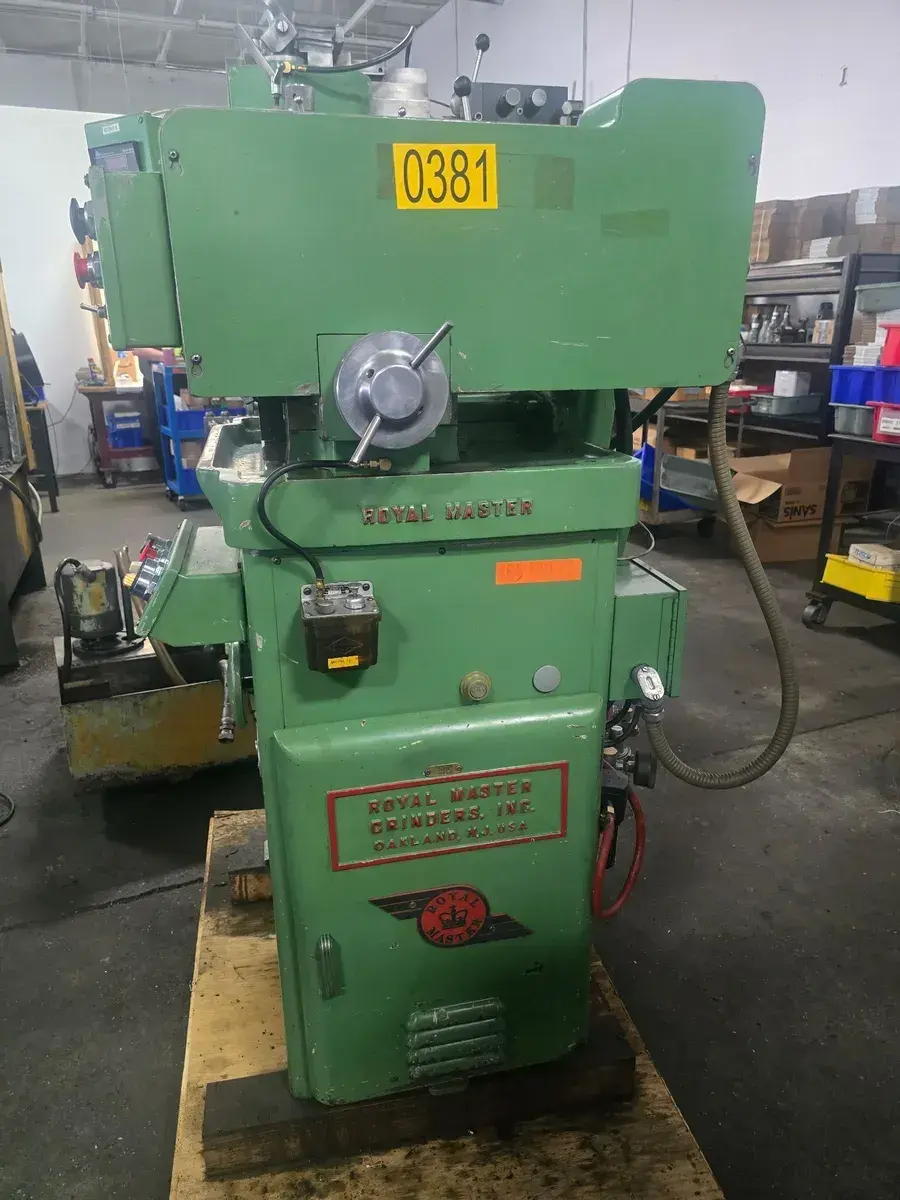

USED ROYAL MASTER TG12X4

Royal Master TG-12X4 Centerless Grinder for sale in used condition. Features a 1.5" capacity, 12" grinding wheel, 7.5 hp power, and 2,040 RPM. Equipped with a coolant tank and versatile spindle speeds. Ideal for precision grinding tasks.

Specifications:

Capacity 1.5"
Grinding Wheel Dia. 12"
GW Power 7.5 hp
GW RPM 2,040 RPM
Regulating Wheel Dia 6"
RW Power 7.5 hp
RW RPM 500 RPM
Control CNC
Dimensions 24x48
Weight 3800
Royal Master TG-12X4 Centerless Grinder

STANDARD SPECIFICATIONS
CAPACITY
In feed……………………………………………………………. 0.004” to 1.5” dia
Thru feed…………………………………………………………. 0.004” to 1.5” dia
Length…………………………………………...………………. 12 ft on .5” dia

WHEELS
Grinding Wheel (max)…………………………………………....12” dia x 4” wide
Grinding Wheel (min)…………………………………………… 10” dia x ” wide
Regulating Wheel (max)…………………...……………………. 6” dia x 4” wide
Regulating Wheel (min)…………….…………………………… ” wide with spool

SPINDLE SPEEDS
Grinding Wheel……………………………..…………………… 2,040 RPM (constant)
Regulating Wheel………………………………………………... 25 to 480 RPM (varies)

COOLANT EQUIPMENT
Coolant Tank (3 stage)………………………………………….. 40 gallons

DIAMOND TOOLS
Wheel……………………………………………………………. 10” dia (min)
Work Wheel Dresser…..………………………………………… 1 ct. Part# TG 199 105
Regulating Wheel Dresser……………………………………….. 1/3 ct. Part# TG 222 50

FLOOR SPACE………………………………………………….24”x 48”

WEIGHT
Approximate Weight……………………………………………. 2,000 lbs.

MOTOR
Main Drive………………………………...7.5 HP, 1,725 RPM, double end spindle
Coolant Pump……………………………...1/6 HP, 3,450 RPM, 12 gal. per min. at 5 PSI
Hydraulic Pump…………………………… HP, 1,725 RPM, .5 gal. per min.at 150 PSI
Hydraulic Tank…………………………… 3 to 3 gallons of Mobil DTE-24
Wired 460V 3 Phase
Specifications are deemed accurate, however, subject to verification or prior sale.

In feed work rest.
Thru feed work rest.
Coolant tank pump.
