Used Pattyn Automated Packaging System – High-Speed Case Erecting and Bag Inserting Solution

Manufacturer’s Info:

Manufacturer: Pattyn Packaging Lines​

Model: MTM12​

Year Built: 2022​

Description: The Pattyn Automated Packaging System is designed for high-speed, efficient packaging operations, capable of handling up to 300 parts per minute with a capacity of 440 parts per box. This comprehensive system integrates multiple components to streamline the packaging process, ensuring precision and reliability.​
System Components:

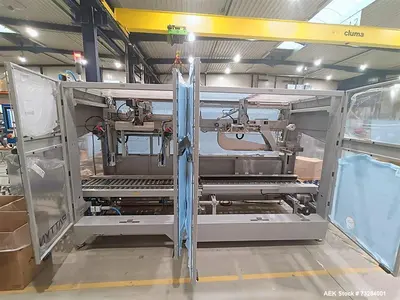

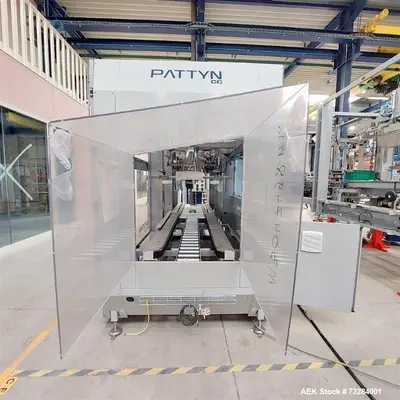

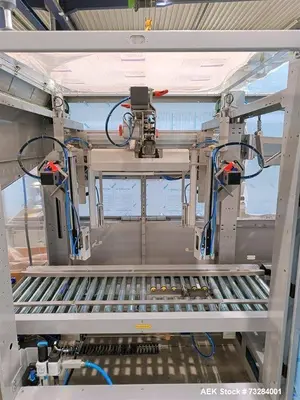

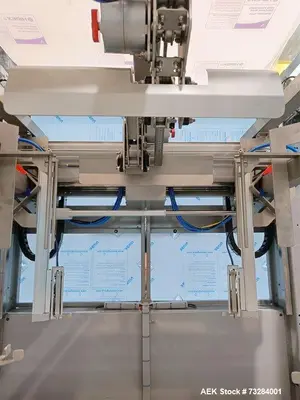

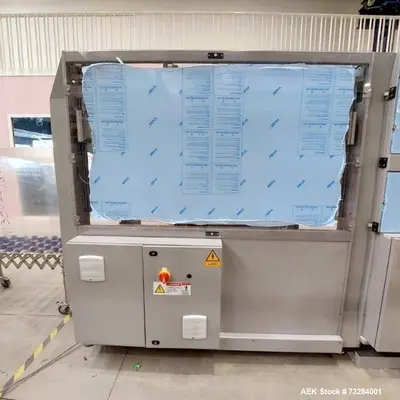

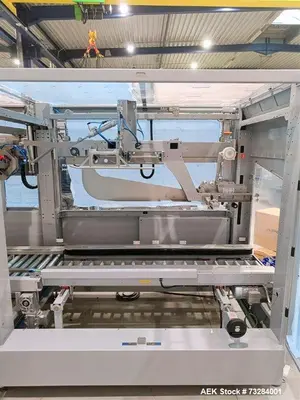

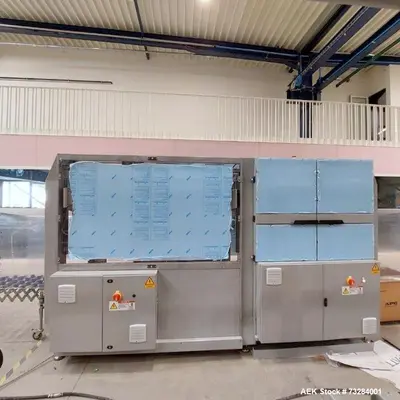

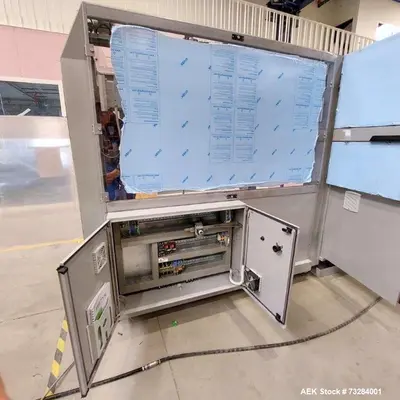

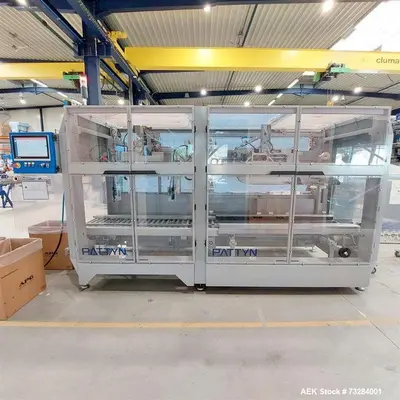

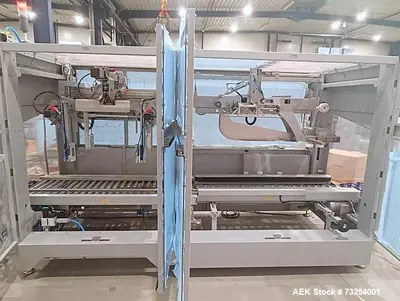

Combination Case Erector and Bag Inserter (Model MTM12): Automates the formation of cases and insertion of bags, enhancing efficiency. ​

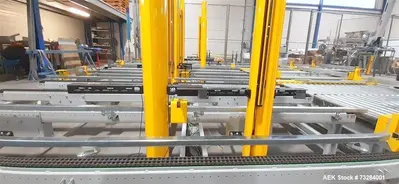

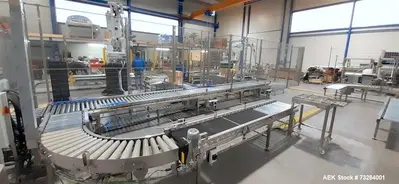

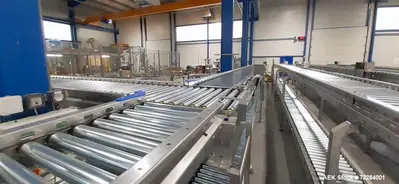

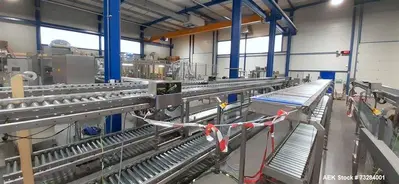

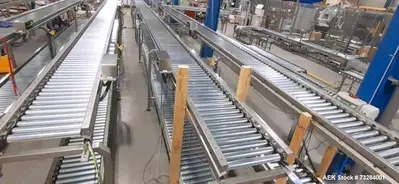

Driven Roll Conveyors: Facilitate smooth and consistent movement of cases through the packaging line.​

Bag Decuffer Folder (American): Ensures proper bag positioning and sealing within cases.

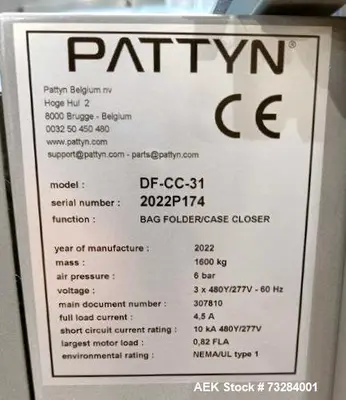

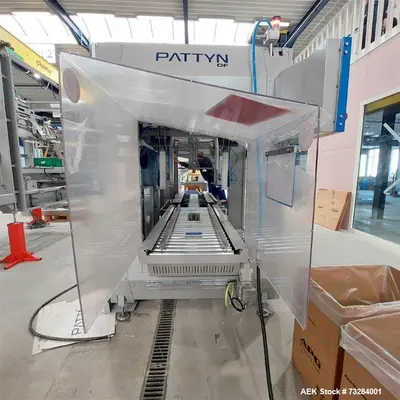

Case Closer (Model 31 Case Closer Tape): Secures cases with tape, maintaining package integrity.​

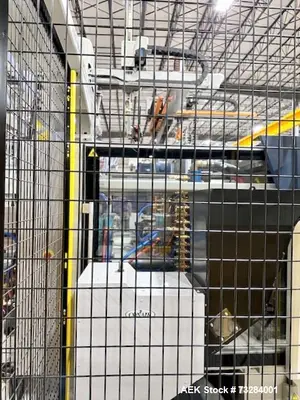

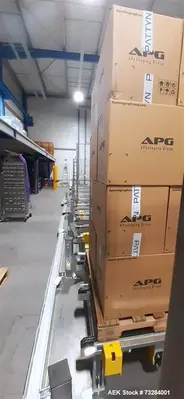

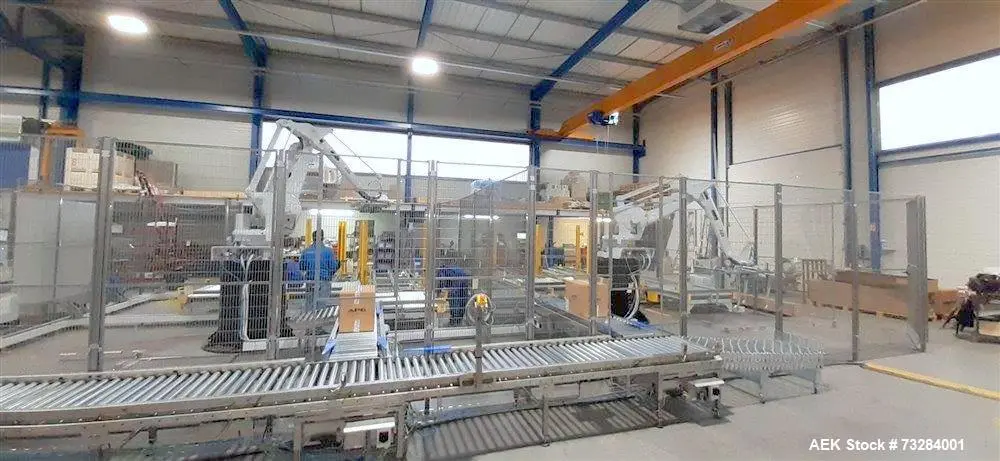

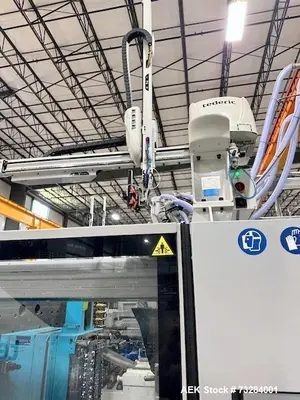

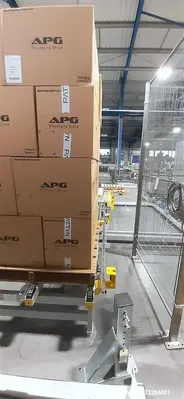

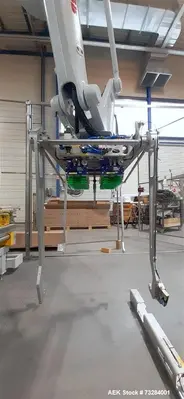

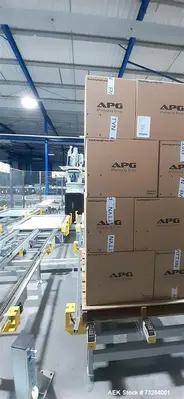

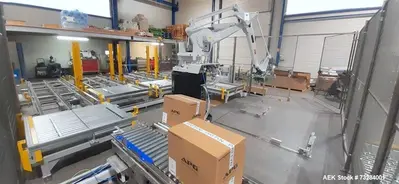

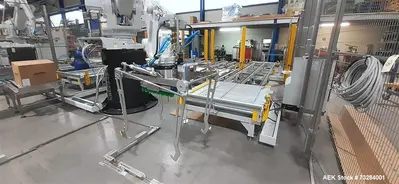

Robotic Palletizer: Automates the stacking of cases onto pallets, reducing manual labor and increasing safety.​

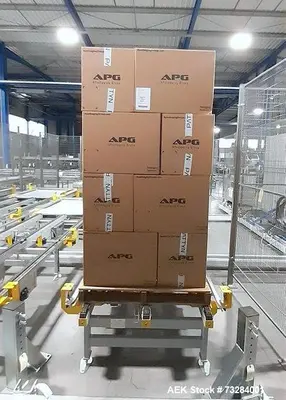

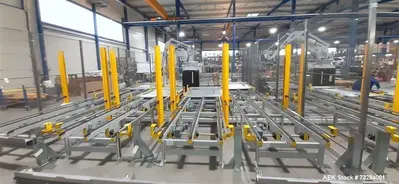

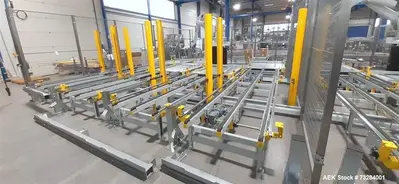

Pallet Conveyor: Transports loaded pallets efficiently within the facility.​

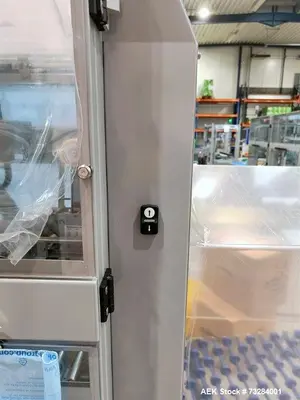

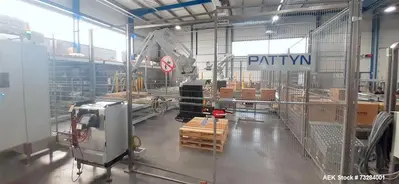

Perimeter Safety Fencing: Provides a secure environment by enclosing the operational area.​

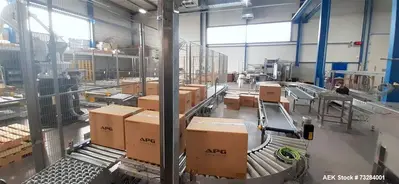

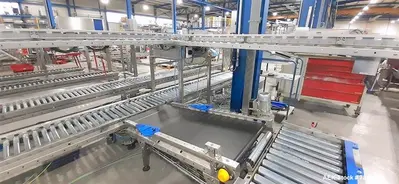

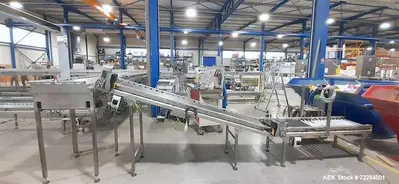

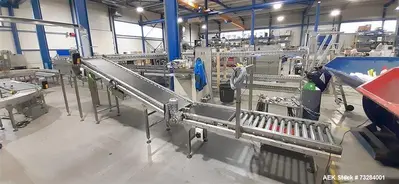

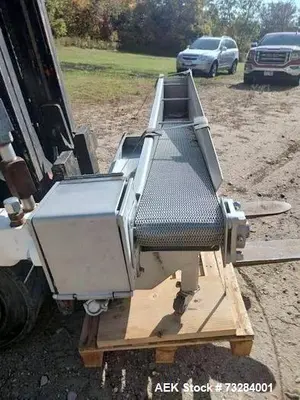

Decline Belt Conveyors and Pop-up Transfers: Manage product flow and orientation throughout the system.​

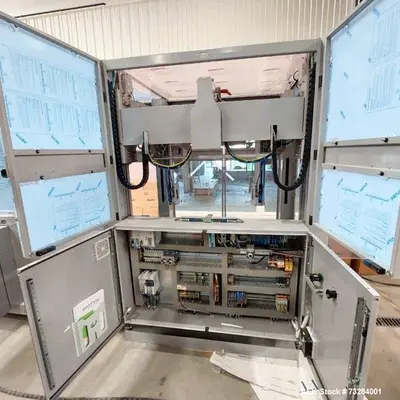

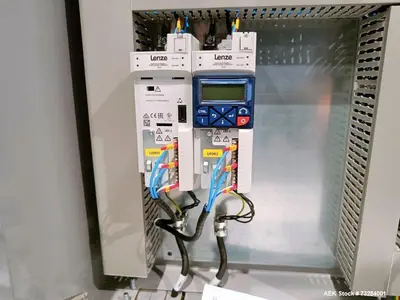

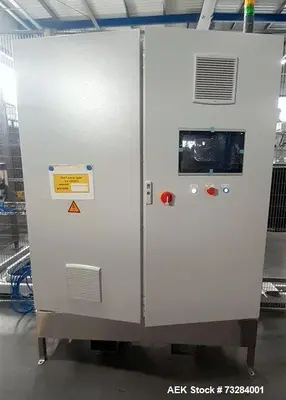

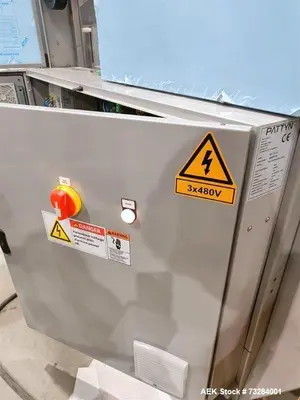

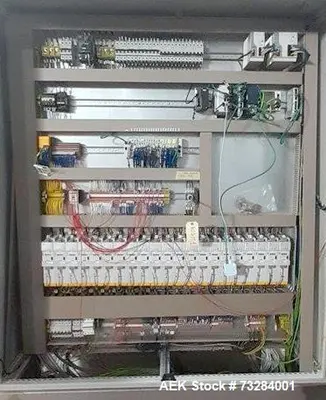

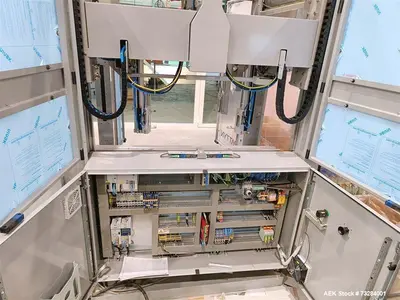

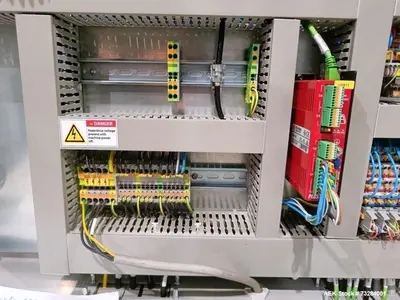

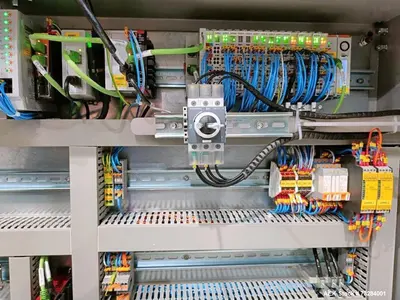

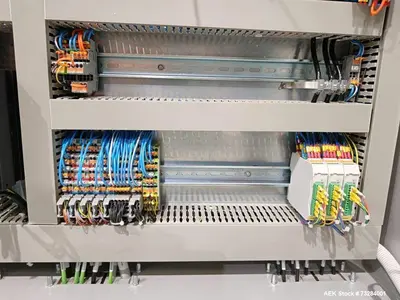

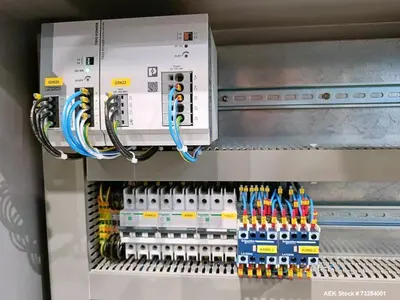

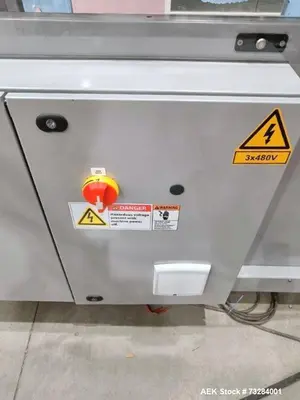

Power Supplies and Electrical Controls: Ensure consistent and reliable operation of all components.​

TIJ Printers (6) with Side-Mount Stands: Enable on-the-fly printing of labels or barcodes on packages.​

Barcode Scanner: Facilitates tracking and quality control by scanning package barcodes.​

ID Tech Labeling Machine (Model 252) with Stand: Applies labels accurately to packages, enhancing product identification.​

Specifications:

Speed: Up to 300 parts per minute​

Box Capacity: 440 parts per box​

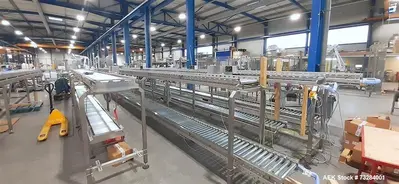

Conveyor Details:

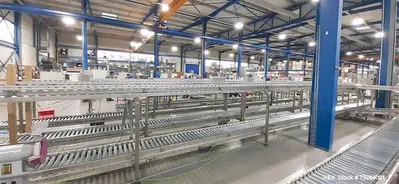

Lower Conveyor: 30 meters (20 zones of 1500mm), 24 meters (16 zones of 1500mm)​

Overhead Conveyor: 30 meters (20 zones of 1500mm), 22.5 meters (15 zones of 1500mm) with extended legs​

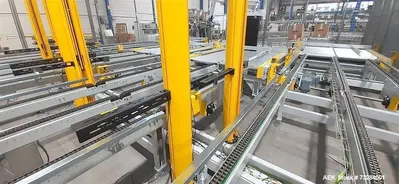

Pop-up Transfers: Various zones including 750mm, 1050mm (650mm width), and 1500mm zones​

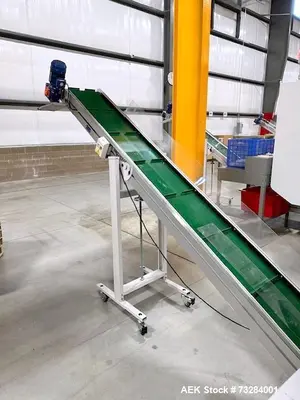

Decline Belt Conveyor: 750mm zone with 90-degree curves and additional zones​

Applications: This automated packaging system is ideal for industries requiring high-speed, precise packaging solutions, including:​

Food and Beverage: Efficiently packages food products into cases with protective bag inserts.​

Pharmaceuticals: Ensures secure and contamination-free packaging of medical products.​

Consumer Goods: Handles a variety of products, enhancing packaging efficiency and consistency.​

What Products Would This Be Used For?

Bakery Items: Bread, pastries, and other baked goods requiring protective packaging.​

Frozen Foods: Products needing secure packaging to maintain quality during storage and transport.​

Industrial Components: Small parts or components packaged in bulk for distribution.
