USED AMPCO AZP1-018-SM
Overview
Description

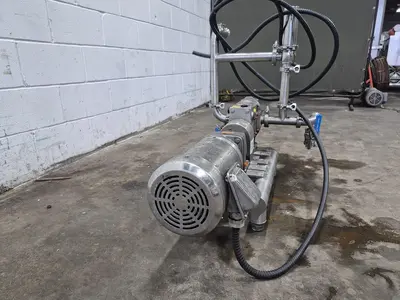

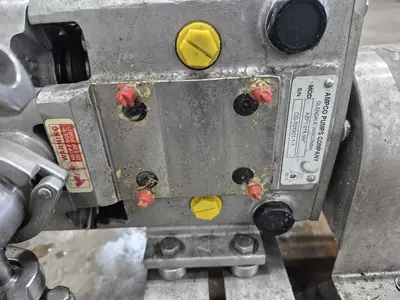

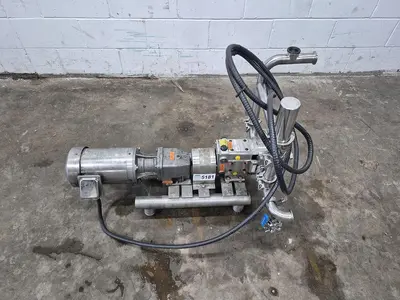

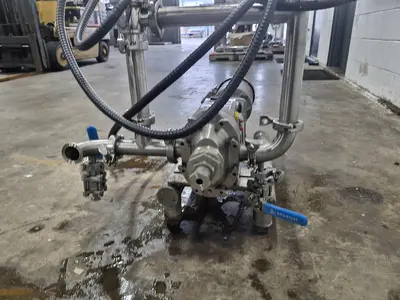

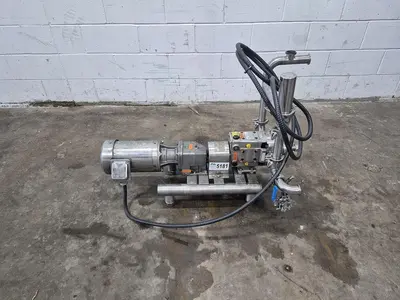

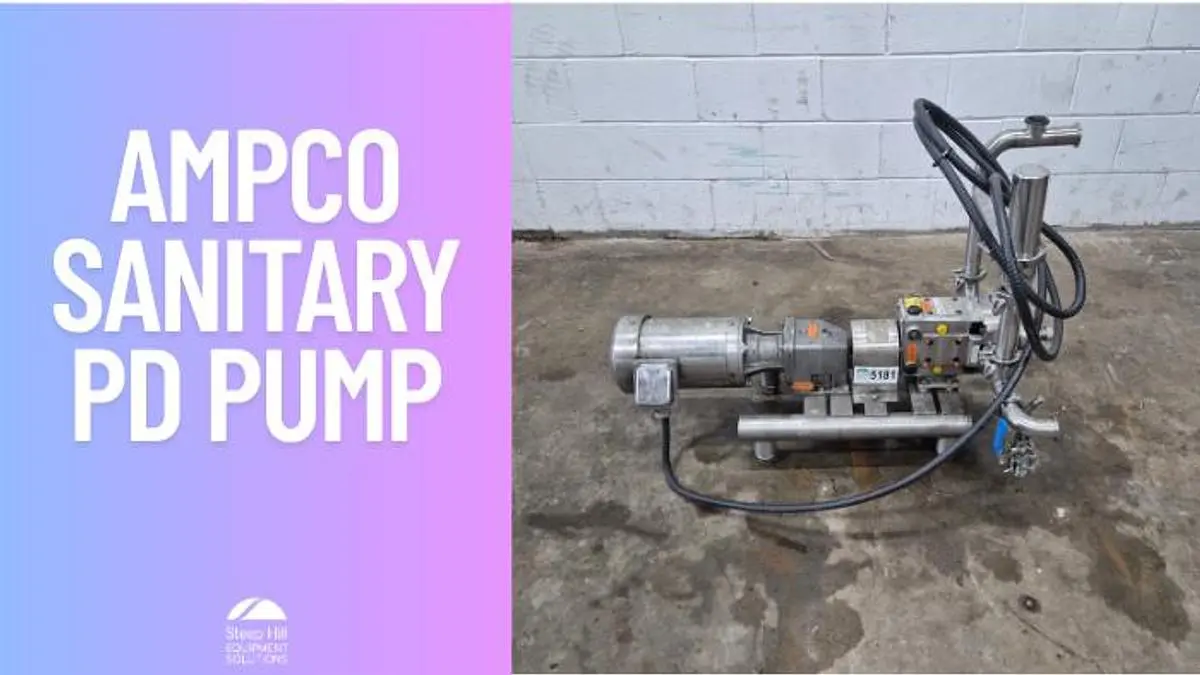

Ampco Sanitary Positive Displacement Pump
This pump is a sanitary positive displacement (PD) pump, specifically a circumferential piston type. Unlike standard water pumps, it is engineered to handle thick, viscous, or shear-sensitive fluids without damaging the product. It is commonly used across several high-hygiene industries.
Specs:
Type: Circumferential Piston Pump
Displacement: 0.029 gallons per revolution (0.108 L/rev)
Standard Port Size: 1.5 inches
Max Discharge Pressure: Up to 225 PSI (15.5 BAR)
Materials: 316L stainless steel fluid end with a 304 stainless steel gearcase and Alloy 88 non-galling rotors

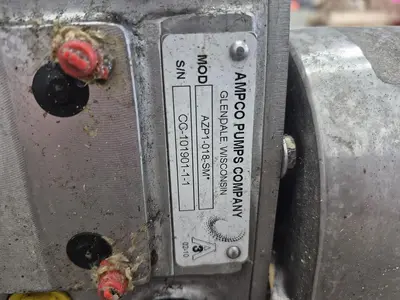

Standards: Built in compliance with 3-A Sanitary Standards (indicated by the "3A" symbol on the tag)

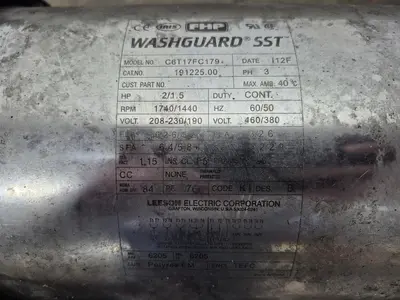

Powered by a Leeson Washguard SST AC Motor
Specs:
Horsepower: 2 HP (at 60 Hz) / 1.5 HP (at 50 Hz)
RPM: 1740 (at 60 Hz) / 1440 (at 50 Hz)
Voltage: 208-230/460 V (3-Phase)

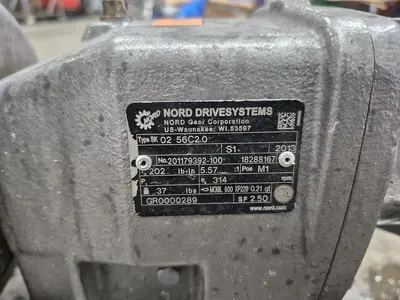

NORD DRIVESYSTEMS Gear Reducer
Specs:
Model/Type: SK 02 56C2.0.
Ratio: 5.57:1
Output Torque: 202 lb-in
Output Speed: 314 rpm (at nameplate input)
Keywords: Positive Displacement Pump, Water Pump, Ampco Pump, Leeson Motor Pump, Industrial Pump, Liquid Transfer Pump, Processing Equipment, 2 HP Positive Displacement Pump, Industrial Water Circulation Pump, Stainless Pump System
Specifications
* Standard Port Size: 1.5 inches
