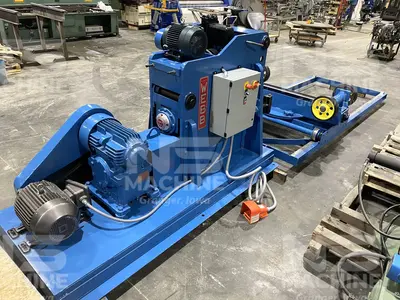

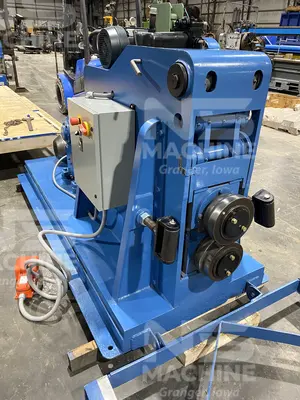

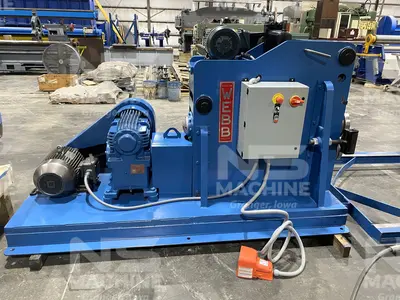

USED WEBB M-5
Overview

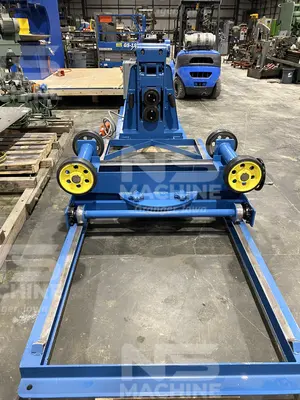

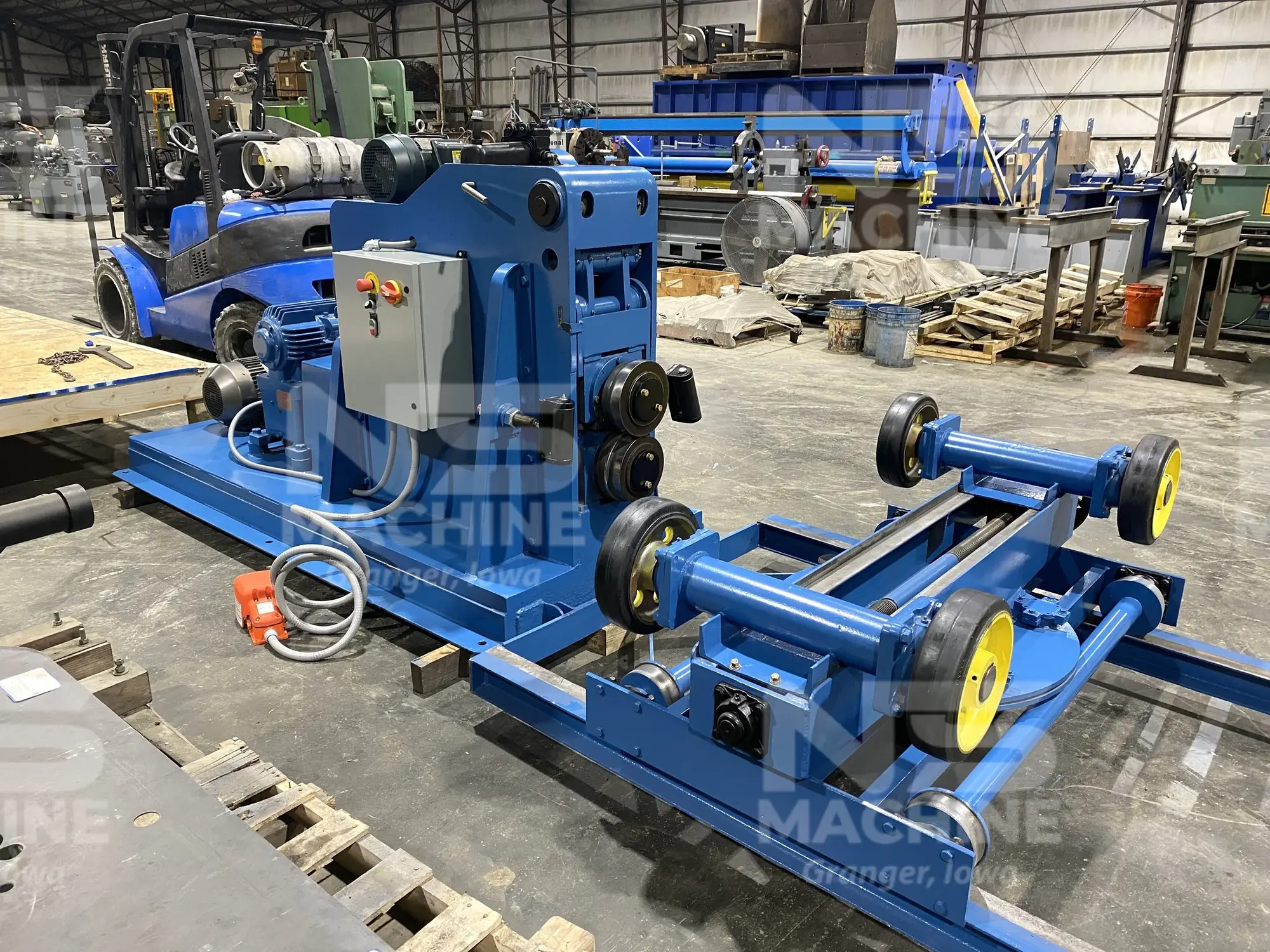

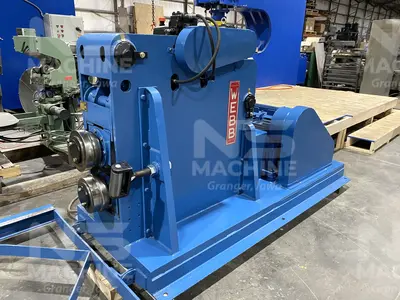

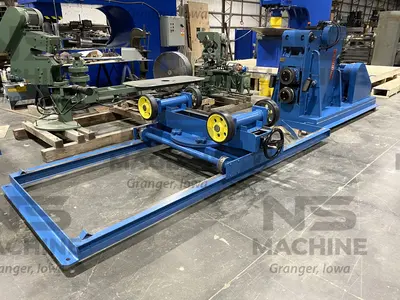

This Webb M-5 Offsetter has a maximum thickness capacity of 1/2” and comes equipped with a new hydraulic pump motor, new controls and control cabinet, a standard turntable with new wheels, (1) set of used tooling and (1) set of new tooling - you choose the size..
For questions or to schedule an inspection of this Webb M-5 Offsetter, please call 515-999-2999 or email your request to [email protected]. To request a quote for this Webb M-5 Offsetter, use the “Request Quote” button on this page.

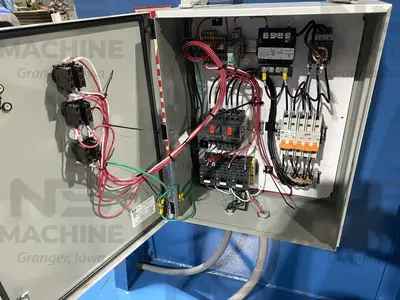

New electrical control panel & controls
New hydraulic pump motor
Hydraulic pump serviced (new seal & bearing)

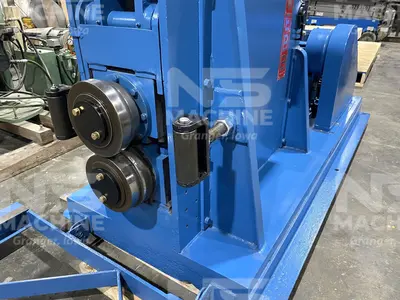

New guide roll assemblies

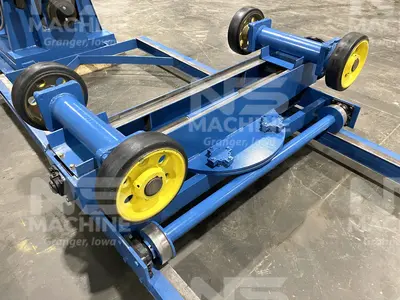

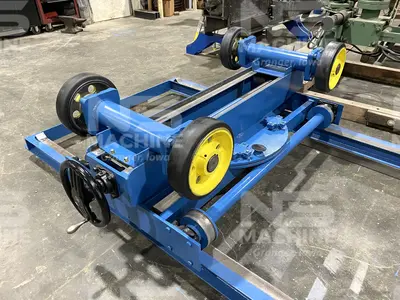

Standard turntable with new wheels
(1) Set of used tooling
(1) Set of new tooling - (you choose the size)
Specs
Maximum material thickness: 1/2”
Minimum shell diameter: 24”
Maximum shell diameter: 6’ with standard turntable
Maximum shell diameter: 12’ with large turntable
Turntable capacity: 3,000 lbs.
Motor: 10 HP / 1775 RPM
Volts: 230/460
Phase: 3
Cycles: 60
Amps: 24.8 / 12.4
Approximate dimensions: 96” x 45-1/2” x 58” high
Overall length with turntable: 192”
Approximate shipping weight: 5,700 lbs.
