6.6" x .250" NEW Tube Mill

Specifications:
Coil Thickness: .079” - .256” (2.00 - 6.50 mm)
Max Coil Weight: 26,455 Lbs (12,000 kg)
Coil Width Range: 9.45” - 20.47” (240 - 520 mm)
Coil I.D.: 18.70” - 20.47” (475 - 520 mm)
Coil O.D.: 39.37” - 78.74” (1000 - 2000 mm)
Tube O.D. Range: 3.00” - 6.61” (76 - 168 mm)
Profile Size Range: 2.36” x 2.36” - 4.72” x 4.72” (60 x 60 - 120 x 120 mm)
Product Length: 157” - 472” (4000 - 12000 mm)
Line Speed: Up To 197 FPM (60 m/min)
Line Includes:
Entry Line:
Hydraulic Strip Car

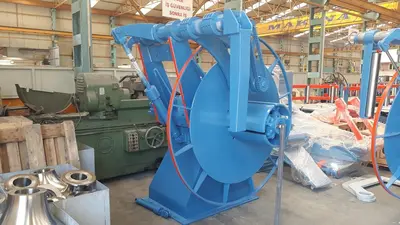

Strip Uncoiler
Strip Levelling Group
Shear And Strip Endwelder

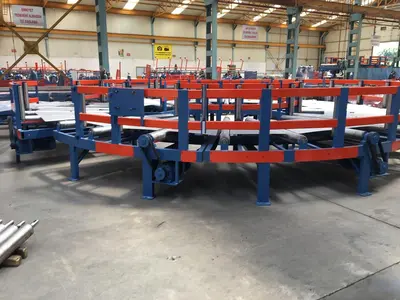

Horizontal Strip Accumulator
Mill Portion:
Strip Entry Leveling

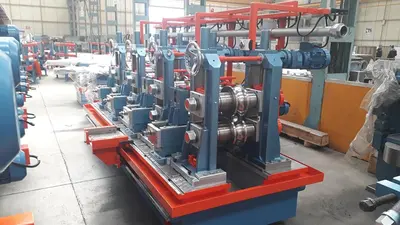

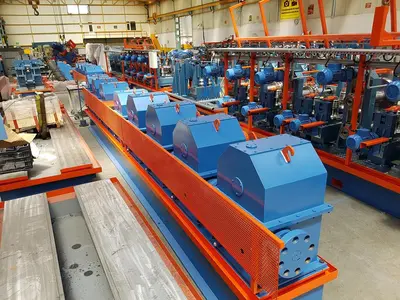

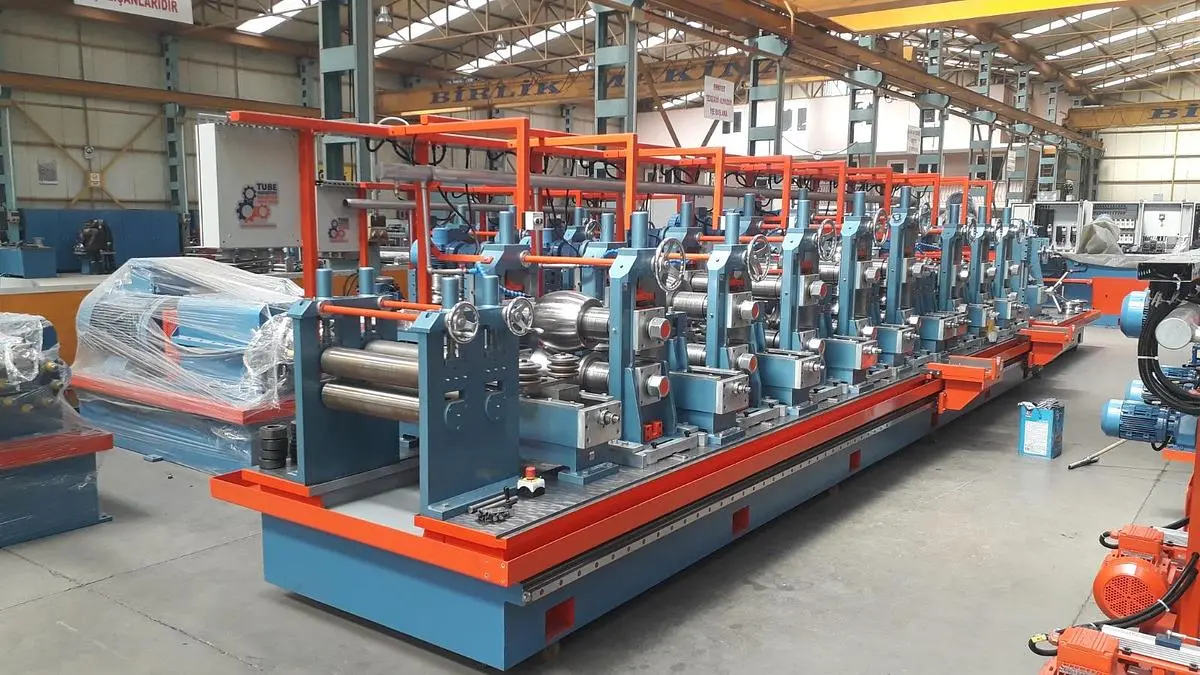

Forming Group
Guiding Rolls / Seam Guide

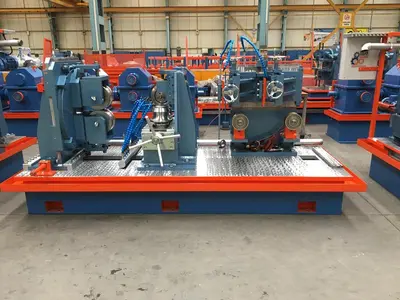

Welding Group And Chip Removing
H.F. Solid State Welding Machine
Cooling Tunnel

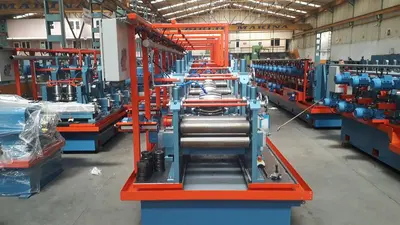

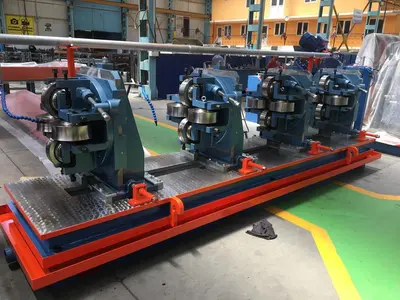

Calibration / Sizing Group
Turks Heads (Profiling-Straightening Group)
Saw And Runout System:

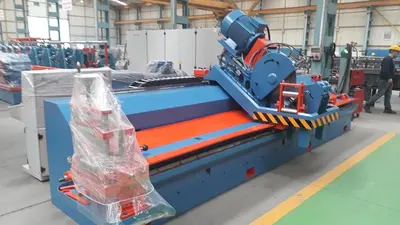

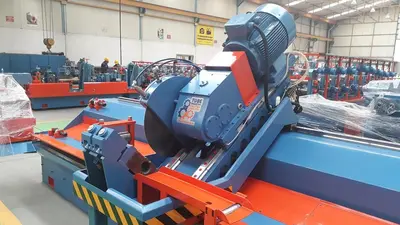

Saw Group

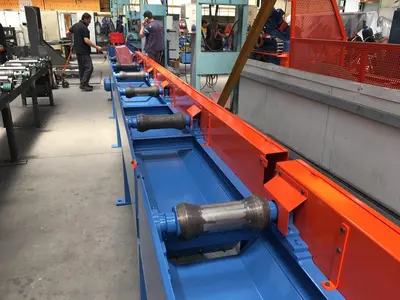

Run Out Conveyor And Double Stacking Table
Additional:
Electrical And Electronic Systems
Hydraulic Group
Spare Parts
