USED 2011 HURST SERIES 200 (S2000-15-9)

OVERVIEW

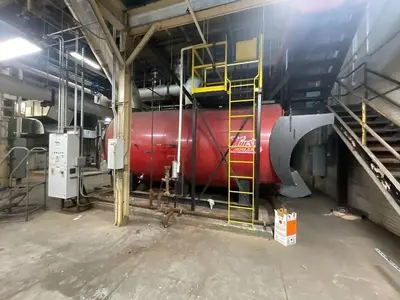

NOTE: This is a 400 boiler horsepower, 4-pass scotch marine firetube steam boiler manufactured by Hurst Boiler & Welding Co., Inc. in 2011. Low-pressure unit rated at 15 PSI maximum working pressure. National Board registered (No. 17360), State of Wisconsin registered (No. B 90948). Previously operational as Boiler #3 in a Wisconsin facility. Packaged burner included. Ready for inspection — contact us to schedule.

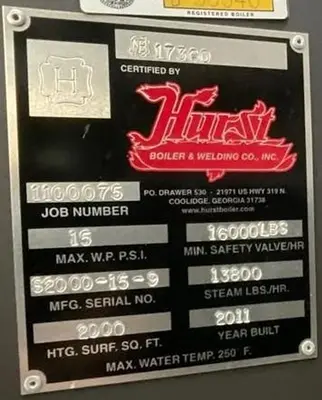

Hurst Boiler & Welding Co. Series 200 Model S2000-15-9 — 400 HP, 4-Pass Scotch Marine Firetube Steam Boiler. Mfg. Serial Number S2000-15-9, National Board Number 17360, Job Number 1100075, Year Built 2011. Rated at 15 PSI maximum working pressure with 13,800 Lbs./Hr. steam output and 2,000 Sq. Ft. of heating surface. Gross output 13,390 MBH. Minimum safety valve capacity 16,000 Lbs./Hr. Maximum water temperature 250°F. Built at Hurst's Coolidge, Georgia facility.

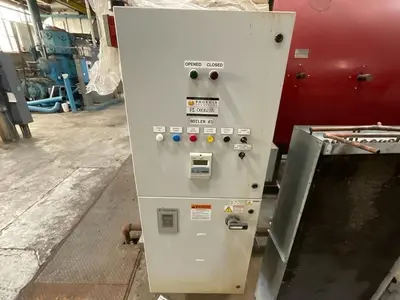

Burner and control panel included. Yaskawa VFD installed in control panel lower section. Control panel labeled Boiler #3 with burner firing / alarm / low water indicator lights and Opened/Closed status indicators.
Ideal for low-pressure process steam, facility heating, laundry and sterilization, food and beverage processing, institutional campuses, or any application requiring high-capacity low-pressure steam generation.

EQUIPMENT SPECIFICATIONS
Boiler Model Information:

Manufacturer: Hurst Boiler & Welding Co., Inc.
Address: P.O. Drawer 530, 21971 US Hwy 319 N., Coolidge, Georgia 31738
Model/Series: Series 200 — 4-Pass Scotch Marine Firetube
Mfg. Serial No.: S2000-15-9
National Board No.: 17360
Job Number: 1100075
Year Built: 2011
Boiler Type: 4-Pass Scotch Marine Firetube
ASME Stamp: Yes (ASME Section I / Section IV — low pressure)


Performance Ratings:

Boiler Horsepower: 400 HP
Max. Working Pressure (Max. W.P. P.S.I.): 15 PSI (Low Pressure)
Heating Surface: 2,000 Sq. Ft.
Steam Output: 13,800 Lbs./Hr.
Gross Output: 13,390 MBH
Min. Safety Valve Capacity: 16,000 Lbs./Hr.
Max. Water Temperature: 250°F


Fuel Firing Rates:

Natural Gas: 16,800 CFH
LP Gas: 183.6 GPH
No. 2 Fuel Oil: 120.0 GPH
No. 5 & No. 6 Oil: 112.0 GPH


Physical Dimensions:

Shell Inside Diameter: 90 in.
Furnace O.D.: 42 in.
Width (without trim): 99 in.
Width (with trim): 103 in.
Length (front to rear): 187 in.
Overall Length: 235 in. (~19.6 ft)
Shipping Weight: ~33,000 lbs
Water Capacity: 1,872 gallons


Registration:

State of Wisconsin Registered Boiler No.: B 90948
Phoenix Property Tag: PI 0000235 (Boiler #3)


KEY FEATURES & BENEFITS

Hurst Boiler Quality Manufacturing:

Proven Series 200 4-pass scotch marine firetube design
400 HP low-pressure industrial capacity
13,800 Lbs./Hr. steam output at 15 PSI
Heavy-duty commercial/industrial construction
National Board registered (No. 17360)
State of Wisconsin registered (No. B 90948)
Built 2011 — relatively modern unit


4-Pass Scotch Marine Firetube Design:

Combustion gases make four passes through the boiler before exiting
Maximizes heat extraction and thermal efficiency
Large combustion chamber with low heat release for complete combustion
Front-mounted smoke box with slip-on stack connector

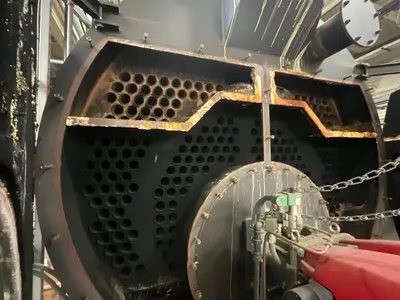

Hinged and davited rear door for easy fireside access and tube inspection/cleaning


Low Maintenance Construction:

Eliminates refractory baffles between flue gas passes
2-inch high-density mineral wool insulation with 22-gauge grip jacketing
Structural steel support legs on skids — no special foundations required
Rugged construction for long service life with minimal downtime


Control Panel Included:

Dedicated boiler control panel (Boiler #3)
Burner firing / burner off indicator lights
Low water alarm indicator
Alarm silence control
Opened / Closed status indicators
Yaskawa VFD (variable frequency drive) installed in lower panel section


Burner Included:

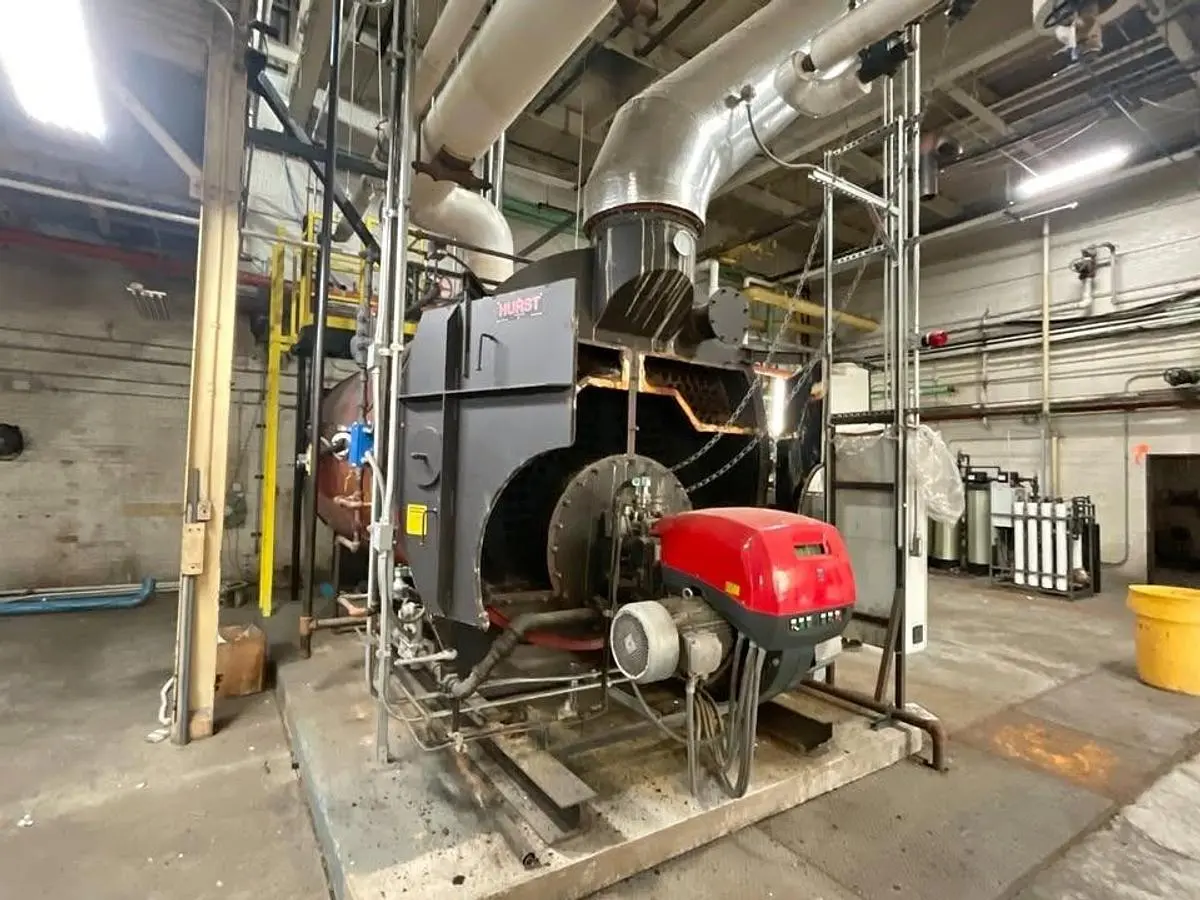

Packaged burner (red) installed on boiler front

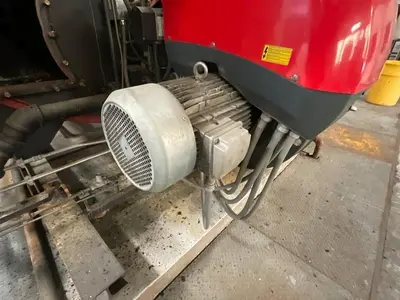

Large combustion air fan/blower motor
Multi-fuel capable per published firing rate specifications


SYSTEM COMPONENTS

Main Boiler:

Hurst Boiler Series 200 Model S2000-15-9
Mfg. Serial No. S2000-15-9 / National Board No. 17360
400 HP, 15 PSI, 13,800 Lbs./Hr. steam output
2,000 Sq. Ft. heating surface
4-pass scotch marine firetube design
Complete with all trim and controls


Burner System:

Packaged burner — factory-mounted on boiler front
Large combustion air blower motor
Multi-fuel capability (gas / oil per spec)


Control Panel:

Dedicated boiler control panel
Burner firing / alarm / low water indicator lights
Opened / Closed status indicators
Yaskawa VFD installed in lower section


SPECIFICATIONS SUMMARY

Manufacturer: Hurst Boiler & Welding Co., Inc.
Model: S2000-15-9
Series: 200 (4-Pass Scotch Marine Firetube)
Mfg. Serial No.: S2000-15-9
National Board No.: 17360
Job Number: 1100075
Year Built: 2011
Boiler Type: 4-Pass Scotch Marine Firetube
Capacity: 400 BoHP
Max. Working Pressure: 15 PSI (Low Pressure)
Heating Surface: 2,000 Sq. Ft.
Steam Output: 13,800 Lbs./Hr.
Gross Output: 13,390 MBH
Min. Safety Valve Capacity: 16,000 Lbs./Hr.
Max. Water Temp.: 250°F
Gas Firing Rate: 16,800 CFH
Burner: Packaged burner included
Control Panel: Included with Yaskawa VFD
Origin: Coolidge, GA, USA
Condition: Used


ADDITIONAL INFORMATION

Condition: Used — previously operational
Year Built: 2011
Manufacturer: Hurst Boiler & Welding Co., Inc.
Model: S2000-15-9
National Board No.: 17360
WI Registered Boiler No.: B 90948
Boiler Type: 4-Pass Scotch Marine Firetube
Capacity: 400 HP
Max. Working Pressure: 15 PSI
Steam Output: 13,800 Lbs./Hr.
Heating Surface: 2,000 Sq. Ft.
Gross Output: 13,390 MBH
Max. Water Temp.: 250°F
Burner: Packaged burner included
Control Panel: Included (with Yaskawa VFD)
Origin: Coolidge, GA, USA
Previously: Boiler #3 in Wisconsin facility
Inspection: Welcome — contact us to schedule


IMPORTANT NOTES:

Burner and control panel included with boiler
Yaskawa VFD included in control panel
National Board registered and State of Wisconsin registered
2011 manufacture — relatively modern industrial unit
Professional rigging recommended for loading and transport
Buyer responsible for transport arrangements from current location
Contact us for additional photos, video walkthroughs, or technical questions
