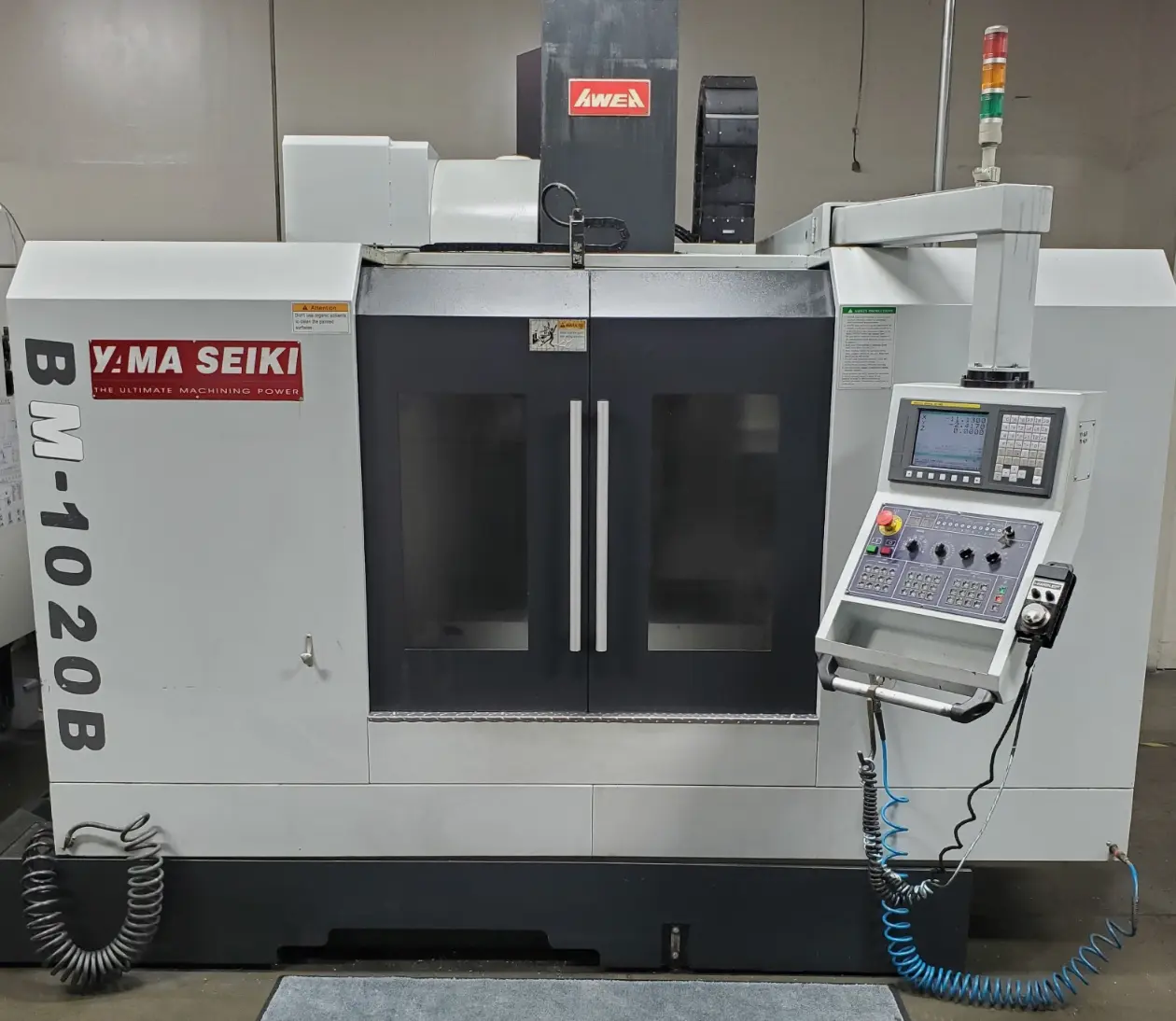

Used Vertical Machining Center with a 44.1" x 23.6" table, 30 HP spindle, max speed 10,000 RPM, and CAT-40 taper. Equipped with FANUC Oi-MD, oil chiller, and pre-wiring for 4th axis. Weighs 15,000 lbs.
| X | 40.2" | 1,021.1 mm |
| Y | 23.6" | 599.44 mm |
| Z | 23.6" | 599.44 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 24 | 24 |
| Taper | CAT 40 | CAT 40 |
| Table-W | 23.6" | 599.44 mm |
| Table-L | 44.1" | 1,120.1 mm |
| # Axis | 3 | 3 |
| Control | CNC (Fanuc) | CNC (Fanuc) |
| Weight | 15,000 LBS | 15,000 LBS |
• TABLE WORKING SURFACE 44.1” x 23.6”
• TABLE LOAD CAPACITY 2,210 LBS.
• TRAVELS (X, Y, Z) 40.2” x 23.6” x 23.6”
• SPINDLE CENTER to COLUMN 26.8”
• RAPID TRAVERSE RATE, X&Y 1181 IPM
• TOOL CHANGER ARM STYLE 24
• TOOL CHANGE TIME 1.6 Sec Tool to Tool
• SPINDLE HORSEPOWER 30 HP (peak rating)
• SPINDLE SPEEDS RANGE 10,000 RPM
• SPINDLE TAPER CAT-40
• WAY SYSTEM BOX WAY
• WEIGHT 15,000 LBS.
• HEAVY DUTY BOX WAY DESIGN
• FANUC Oi-MD with 10.4” Color LCD Monitor
• FLASH DRIVE, RS-232 PORT, ETHERNET
• FANUC AICC with 40 Block Look Ahead
• RIGID TAPPING
• CHIP AUGER
• SPINDLE OIL CHILLER
• BIG PLUS SPINDLE
• CHIP WASH DOWN / COOLANT PUMP / OIL SKIMMER
• COOLANT THRU SPINDLE PREP PRE-WIRE
• 4th AXIS PRE-WIRE
• MPG (MANUAL PULSE GENERATOR) HANDWHEEL for FANUC
