Southwestern Trak TRM CNC Vertical Bed Mill #6970 offers precise 2-axis CNC control. Manual Z axis. Features include 10" x 54" table, 30"x17"x23.5" travels, 3 HP spindle drive, #40 NST taper, and auto lubrication. Ideal for versatile machining needs.
| Table-W | 10" | 254 mm |
| Table-L | 54" | 1,371.6 mm |
| Travel-Long | 30" | 762 mm |
| Travel-Cross | 17" | 431.8 mm |
| Power | 3 hp | 2.2 kW |
| RPM | 4,200 RPM | 4,200 RPM |
| Taper | #40 NST | #40 NST |

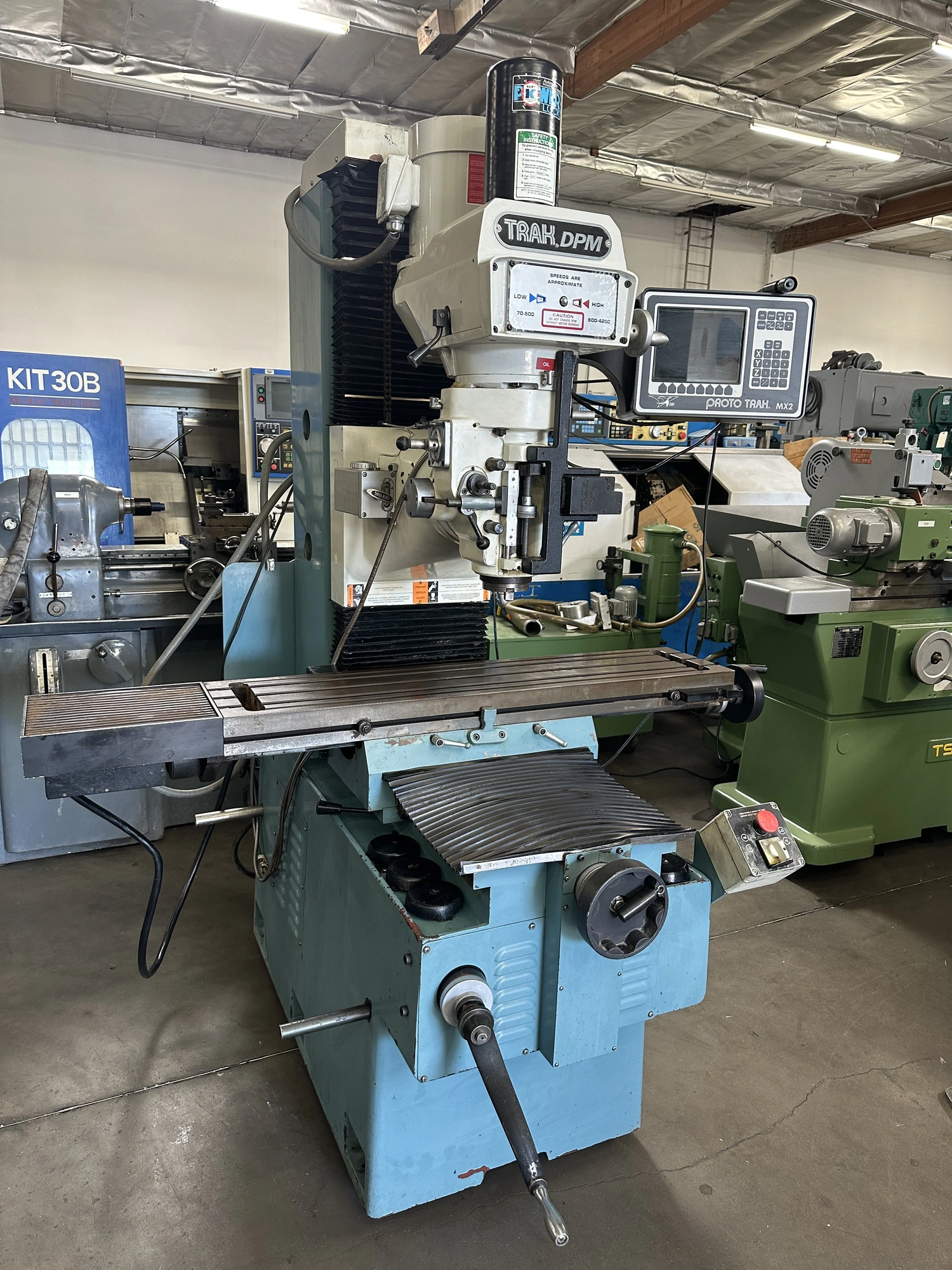

Southwestern Trak TRM CNC Vertical Bed Mill #6970 #1
2 Axis CNC control. Z axis is manual.
SPECIFICATIONS:
Control Type: PROTOTRAK MX2
Table Size: 10" X 54"
Travels: 30" X 17" X 23.5"
Rpm Range: 70 - 4,200
Spindle Taper: #40 NST
Quill Travel: 5"
Head Swivel left/right: 90 DEGREE
Spindle Drive: 3 HP
EQUIPPED WITH:
Trak DPM Head
Power Draw Bar
Auto Lubrication
