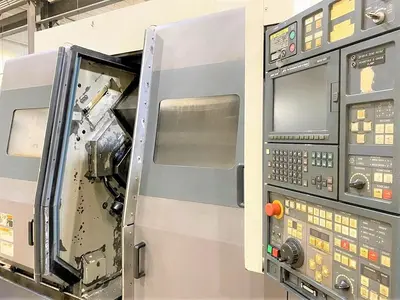

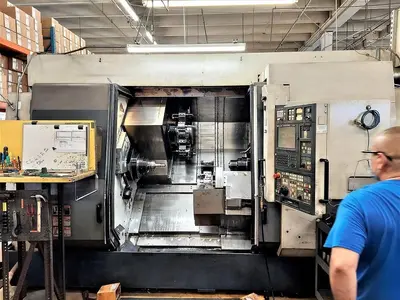

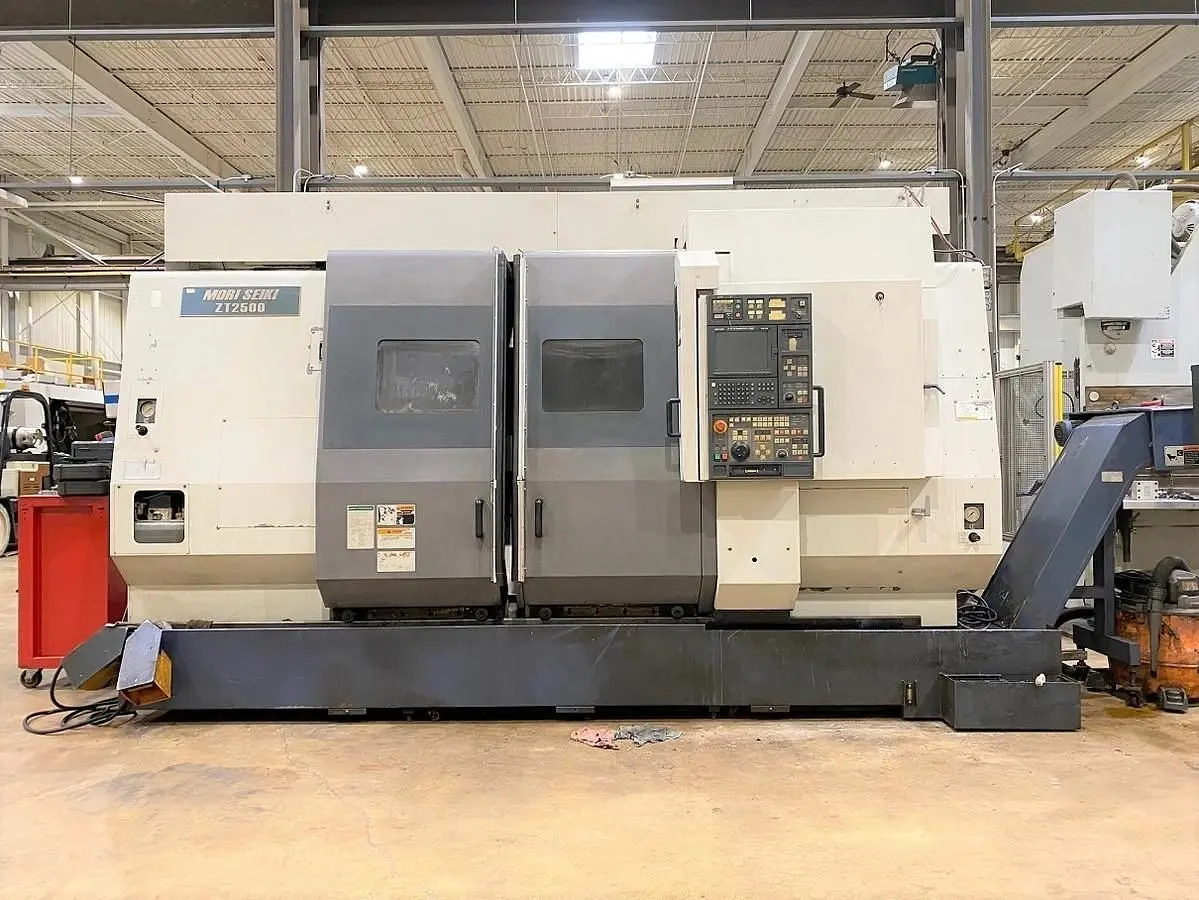

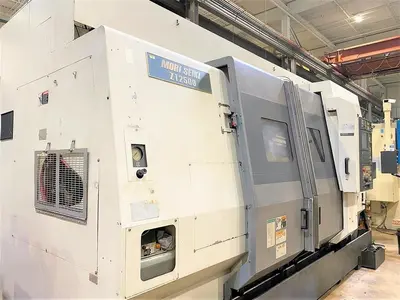

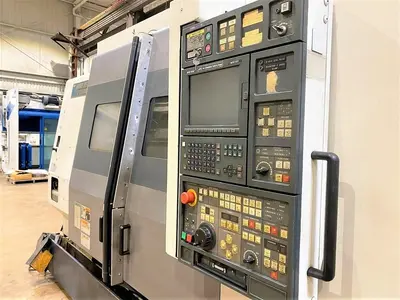

USED 2001 MORI SEIKI ZT2500Y

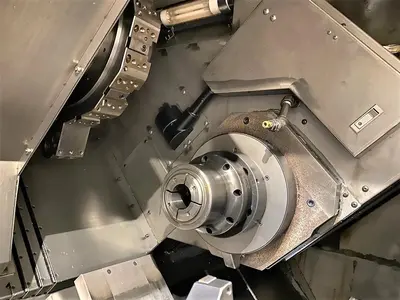

(2) 3-J Collet Chucks
Chip Conveyor
Y-Axis
Live Tooling

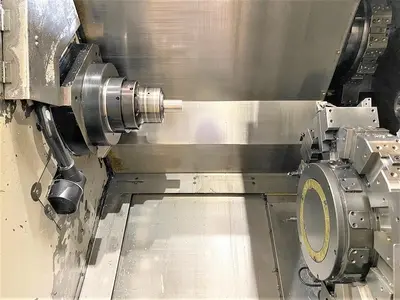

Subspindle
Tool Presetter

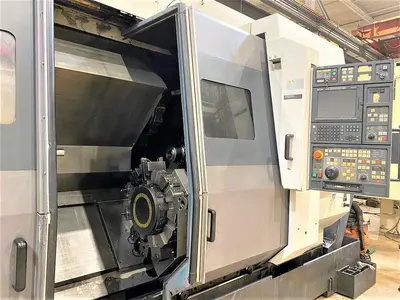

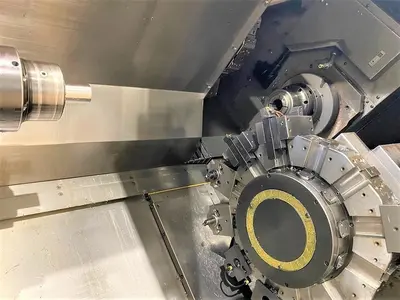

Live Milling on all 12 Stations (Both) Live Tooling on Lower Turret not currently functional

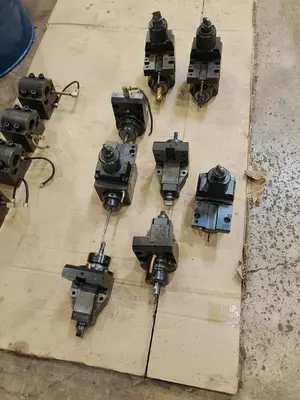

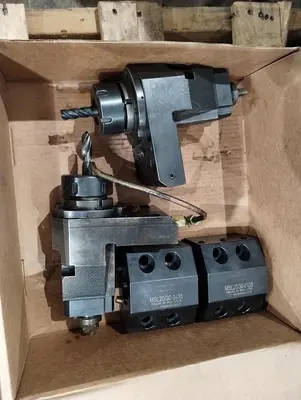

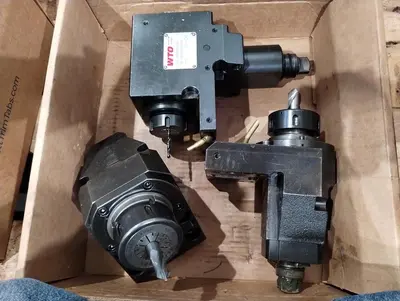

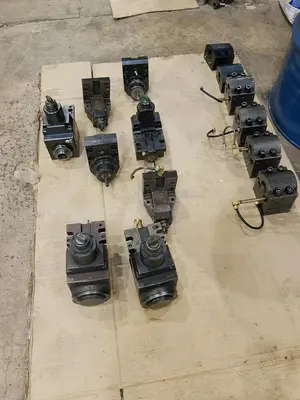

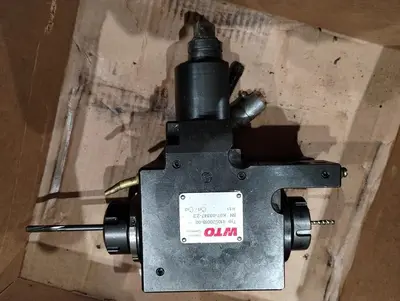

Approximately 10 Live Tool Holders

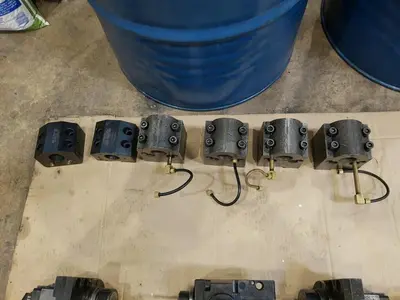

Miscellaneous Static Tool Holders
2-Chiller Units
Dust Collector
All Available Manuals

The 2001 Mori Seiki ZT2500Y is a used CNC lathe with 4-axis capability, designed for precision and efficiency in machining operations. It features dual 3-J collet chucks for secure workpiece handling and a Y-axis for versatile machining tasks. The machine comes equipped with live tooling and a subspindle, enhancing its ability to perform complex operations. While the live tooling on the lower turret currently isn't functional, live milling capabilities are available on all 12 stations.

Key specifications include a maximum swing of 14.96 inches and a turning diameter of up to 14.96 inches on the main spindle. It offers a substantial turning length of 51.18 inches, supported by two turrets, each with 12 positions. The machine is capable of spindle speeds ranging from 40 to 4,000 rpm, driven by a 6 hp rotary motor. Its rapid traverse rates reach 944 inches per minute, ensuring swift operation.

Additional features include a chip conveyor, two chiller units, and a dust collector, providing a comprehensive solution for clean and efficient machining environments. The Mori MSX-501 III machine control is noted for its reliable performance. Accessories and manuals are included to facilitate operation and maintenance. This robust machine is ideal for manufacturers looking for durability and advanced functionality in metalworking applications.

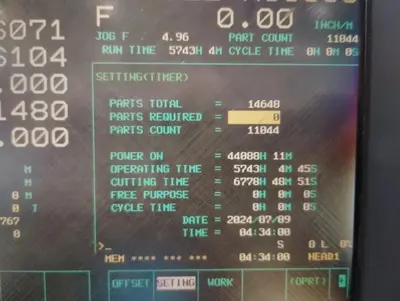

Machine Control: Mori MSX-501 III
Chuck Size: 3-J Collet Chucks
Maximum Swing: 14.96"
Distance Between Spindles: 51.18"
Maximum Turning Diameter: #1 14.96", #2 14.17"
Maximum Turning Length: 51.18"
X-axis travel: #1 11.02", #2 7.87"
C-Axis Rotation: .001 Degrees
Y-Axis Travel: +/- 2.76"
Z-Axis Travel: 38.78"
B-Axis Travel (Subspindle): 38.78"
Spindle Nose / Bore / Bar Capacity: A2-8 / 3.58" / 3.07"
Spindle Speeds: 40-4,000 rpm
Number of Turrets: 2
Number of Turret Positions: 12
Rotary Tool Speed / Rotary Motor: 4,000 rpm / 6 hp
Rapid Traverse Rates: 944 ipm
Machine Dimensions LxWxH: 185"x106"x108"
Machine Weight: 28,600 lbs
Chip Conveyor: 205"x70"x57" Aprx 450 lbs
Chiller Unit: 31"x20"x42" (2-Units) 150 lbs each
Dust Collector: 22.5"x17.5"x74" 120 lbs
Pallet of Miscellaneous Parts: 40"x33"x16" 80 lbs
Pallet of Guarding: 36"x36"x41.5" 80 lbs
