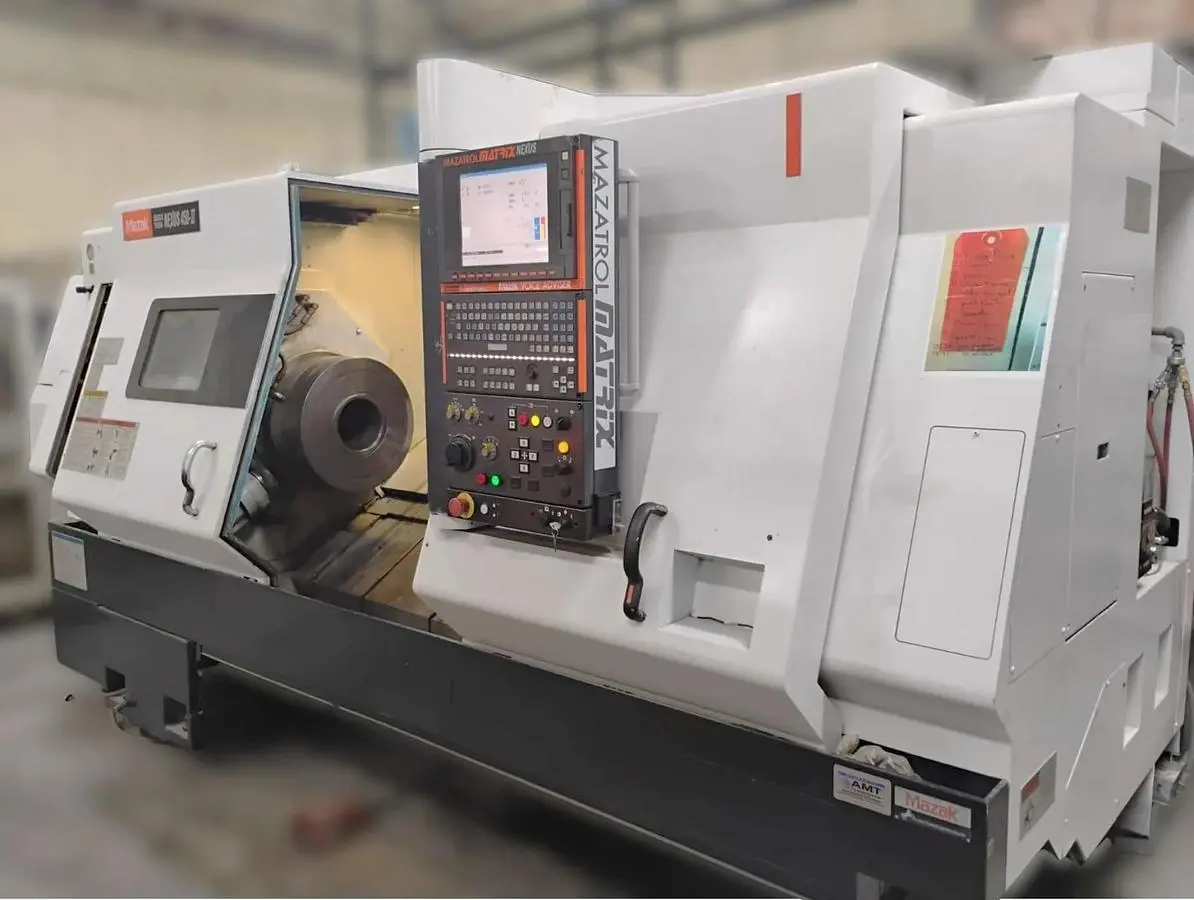

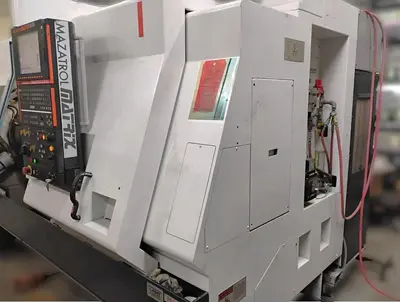

USED 2007 MAZAK NEXUS QTN 450-II/1000 BIG BORE
Overview
18" 3 Jaw Air Chuck for full bore capability
Prep for Rear Chuck Mount
Programmable Tailstock
Chip Conveyor
Tool Presetter
EIA/ISO Programming
EIA Helical Tapping Cycle
EIA Pattern Cycle
Spiral Interpolation
Coordinate Rotation & Scaling
Geometric
External Data Input / Output
Polar Coordinates Input
Comparison Stop
G54.1
Variable 600 Sets
Pitch Error Compensation
12.1" Color LCD
USB Interface (2 Ports)
LAN Port Interface
RS 232 Port Interface
Multi-Tap Transformer (currently wired 208V)
Coolant System with Tank and Pump
Windows XP Operation System
All Available Manuals
NO TOOL HOLDERS ARE INCLUDED
**Overall Good Condition But Does Have a Small Amount of Rubbing Noise with Turret Index. Air Chuck Will Soon Need Seals**
Specs
Control: Mazatrol Matrix Nexus
Chuck Size: 18" 3 Jaw Air Chuck
Maximum Swing: 33.268"
Maximum Turning Diameter: 22.835"
Maximum Turning Length: 40.3"
Maximum Bar Capacity: 7.0" (due to use of air chuck)
X-Axis Travel: 12.13"
Z-Axis Travel: 42.13"
Spindle Nose / Spindle Bore: A2-15" / 7.1"
Spindle Speeds: 2,000 RPM - Geared
Spindle Motor: 50 HP
Number of Turret Positions: 12 Position Turret
Rapid Traverse Rates: 1181 IPM
Tailstock Body Travel / Center: 40.375" / MT #5
Machine Dimensions: 178"x99"x84"
Machine Weight: 21,283 lbs.
