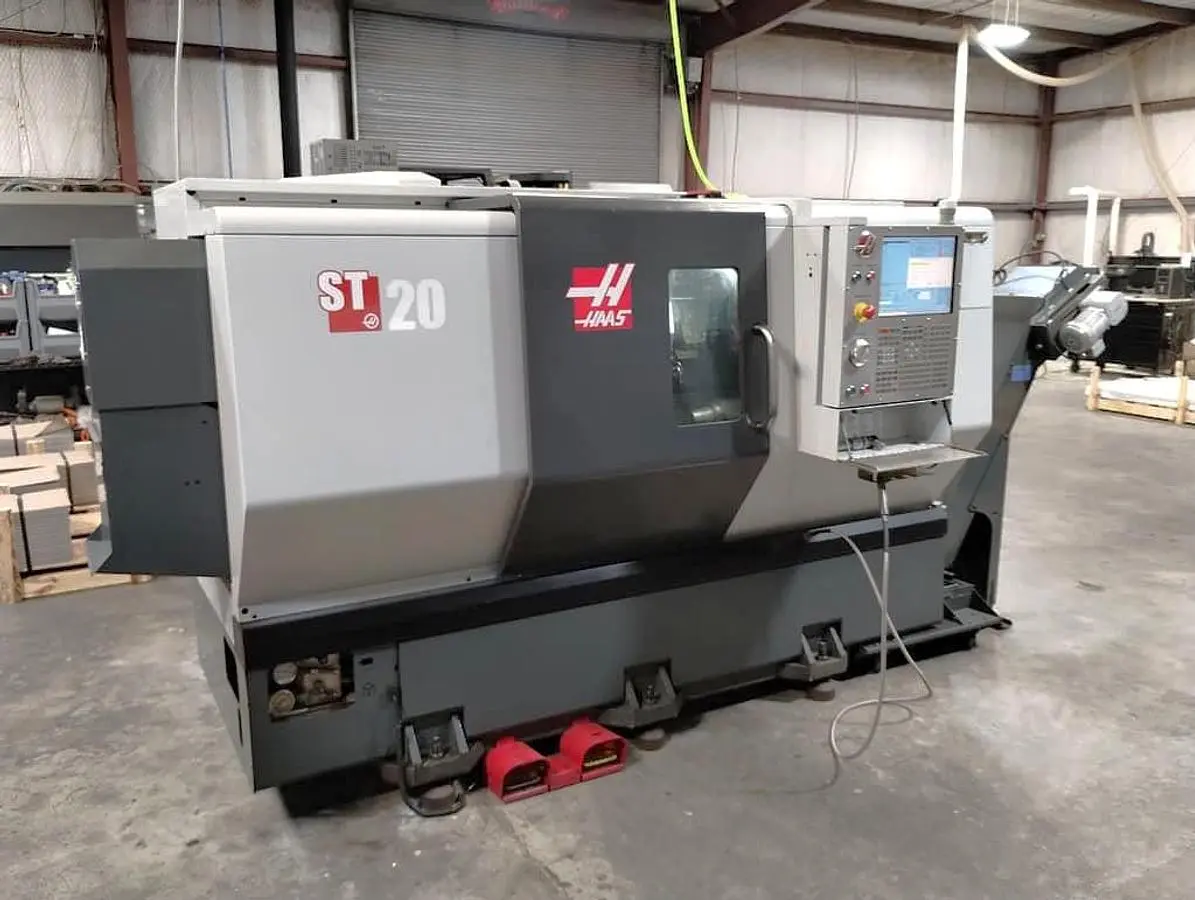

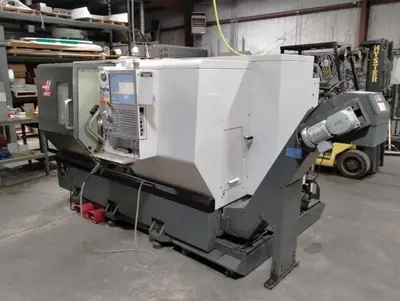

USED 2012 HAAS ST-20

8.3" Samchully 3 Jaw Hydraulic Chuck
Programmable Tailstock

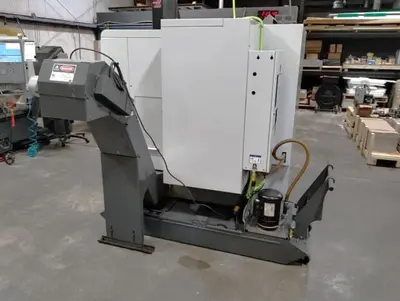

Chip Conveyor
Tool Presetter

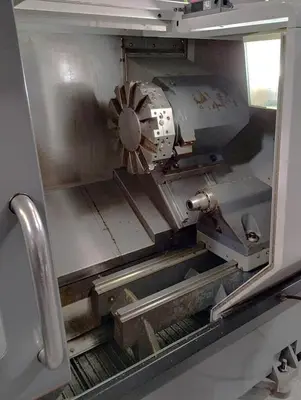

12 Station Bolt on Style Turret
Rigid Tapping
Coolant System with Tank & Pump
USB Port Interface
RS 232 Port Interface
Foot Pedals for Chuck and Tailstock
All Available Tooling

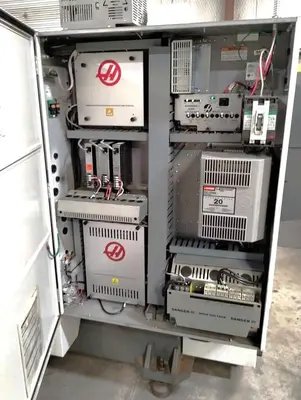

Wired 195-260V Electrics

Recently Partially Rebuilt and Fully Realigned with This Work Done
New Spindle Cartridge
New X Axis Linear Rails / Bearing Blocks
New X Axis Ballscrew
New Ballscrew End Support Bearings
New X and Z Axis Wipers
New Spindle Belt
New Encoder Belt

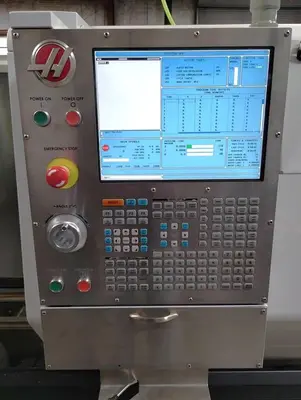

Machine Control: Haas Cold Fire II Processor Control
Chuck Type: 8.3" 3 Jaw Hydraulic Chuck
Maximum Swing/Over Carriage: 23" / 9.5"
Maximum Turning Diameter / Length: 10.3" / 20"
Center Distance: 24"
Spindle Nose / Bore / Bar Capacity: A2-6" / 2.5" / 2"
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP
Number of Turret Positions: 12 Station Block Style
Rapid Traverse Rates: 710 IPM
Tailstock Body Travel / Center: 20" / #4 MT
Machine Dimensions LxWxH: 126.5" x62"x72"
Machine Weight: 9,000 lbs
