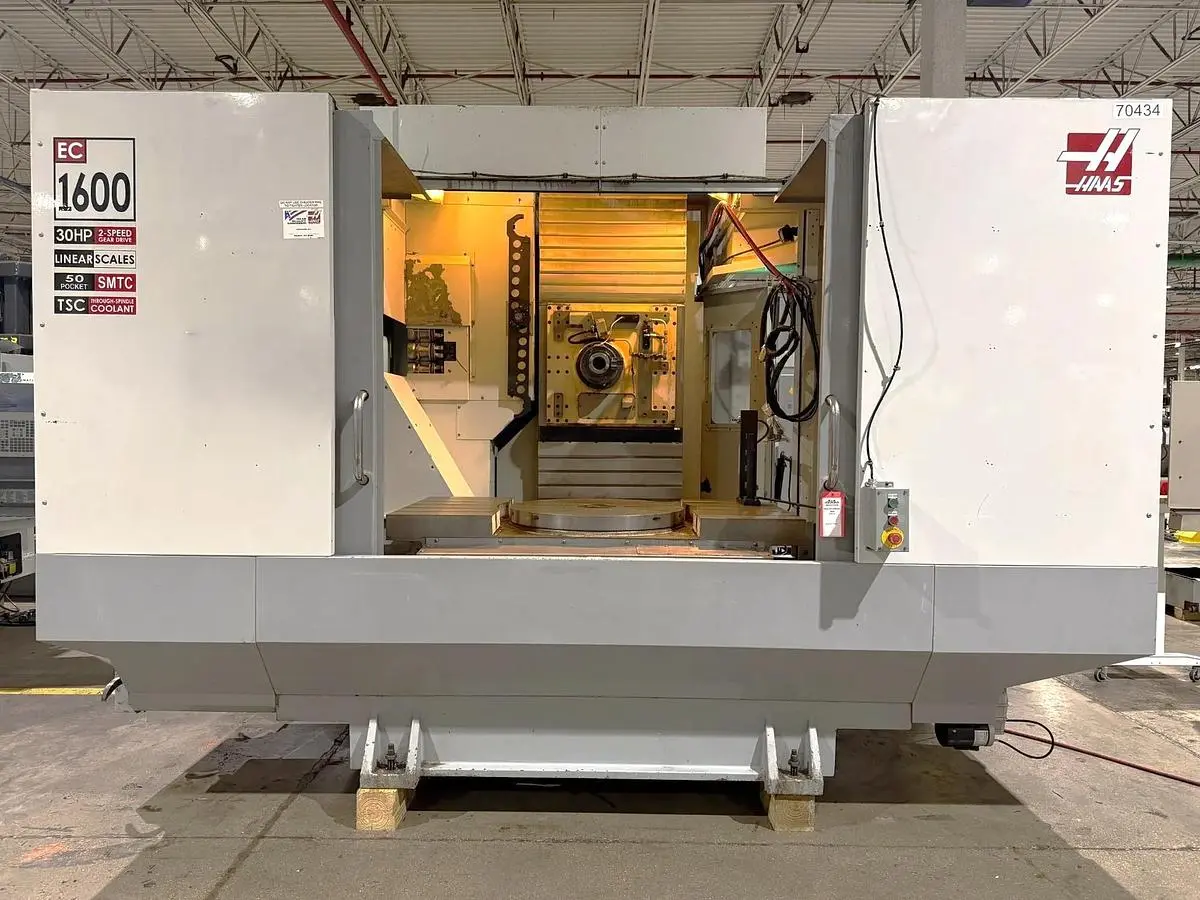

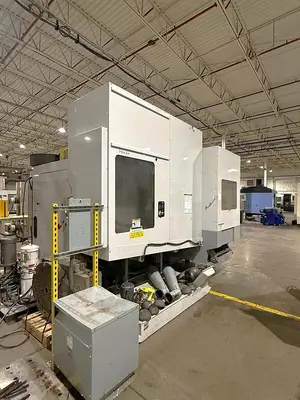

USED 2006 HAAS EC-1600-4X

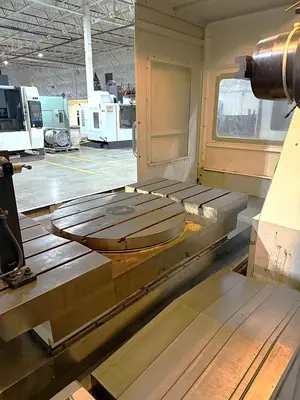

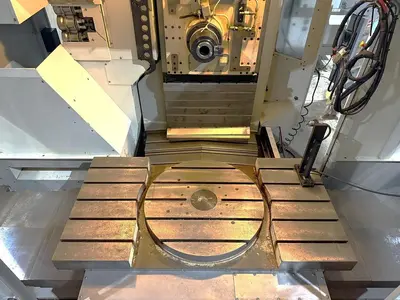

Built In 30" Diameter 4th Axis Rotary Table
4th Axis Drive & Wiring
5th Axis Drive & Wiring

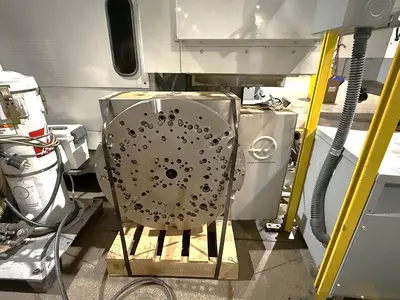

Removable 5th Axis Rotary Table with Riser Block

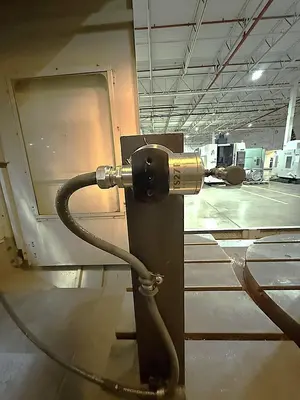

WIPS Renishaw Wireless Intuitive Probing System with Table Mounted Tool Probe
Coolant Thru the Spindle

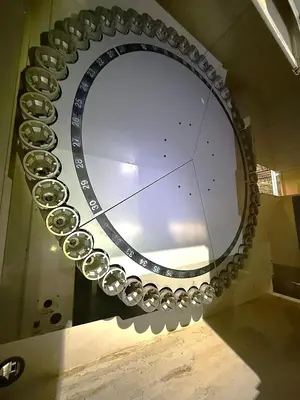

50 Station Tool Changer
Dual Auger Style Chip Conveyors
Programmable Coolant Nozzle
Rigid Tapping
Linear Scales
Spindle Orientation
Visual Quick Code Programming System
Coordinate Rotation & Scaling
User Definable Macros
Auxiliary Coolant Filter System
Power Failure Detection Module
Memory Lock Keyswitch

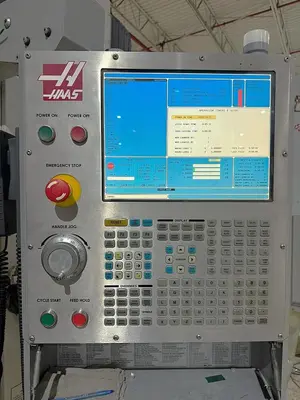

15" Color LCD Monitor
RS 232 Port Interface

The 2006 Haas EC-1600-4X is a robust CNC horizontal machining center suited for complex and precise operations. This model features a built-in fourth axis table and a removable fifth axis rotary table, enhancing its versatility in multi-axis machining. With a substantial table size of 64" x 36", it can handle a maximum load of 10,000 lbs, making it ideal for heavy-duty applications.

The machine offers an impressive range of travel with 64" on the X-axis, 40" on the Y-axis, and 32" on the Z-axis. It boasts a maximum spindle speed of 6,000 RPM powered by a 30 Hp 2-Speed Geared Head, ensuring efficient and powerful cutting capabilities. Equipped with a 50-station tool changer, it facilitates effective operations in diverse machining scenarios. The ability to support tools with a maximum diameter, length, and weight of 10", 20", and 30 lbs respectively, increases operational versatility.

Its dimensions are 152" x 144" x 121.5", and it weighs 33,500 lbs, making it a substantial piece of equipment that necessitates adequate space. The EC-1600-4X is also equipped with probing and coolant through spindle features, enhancing operational precision and efficiency. This used model represents a solid choice for businesses seeking reliability and performance in CNC operations.

Table Size: 64" x 36"
Maximum Table Load: 10,000 lbs
X-axis travel: 64"
Y-Axis Travel: 40"
Z-Axis Travel: 32"
Spindle Taper: CAT 50
Spindle Speed: 6,000 RPM
Spindle Motor: 30 Hp 2-Speed Geared Head
Tool Magazine Capacity: 50 Station Tool Changer
Rapid Traverse Rates: 540 IPM
Maximum Tool Diameter / Length / Weight: 10" / 20" / 30 lbs
Machine Dimensions LxWxH: 152"x144"x121.5"
Machine Weight: 33,500 lbs
