USED 2015 FRYER MC-30

Remote Jog Handle
Software Version 840DSL-71, V04.05+SP03+HF02
All Available Manuals
Wired 440V Electronics

**No Tool Changer on this unit**
**ONLY USED FOR DRY CUTTING, NO COOLANT SYSTEM**

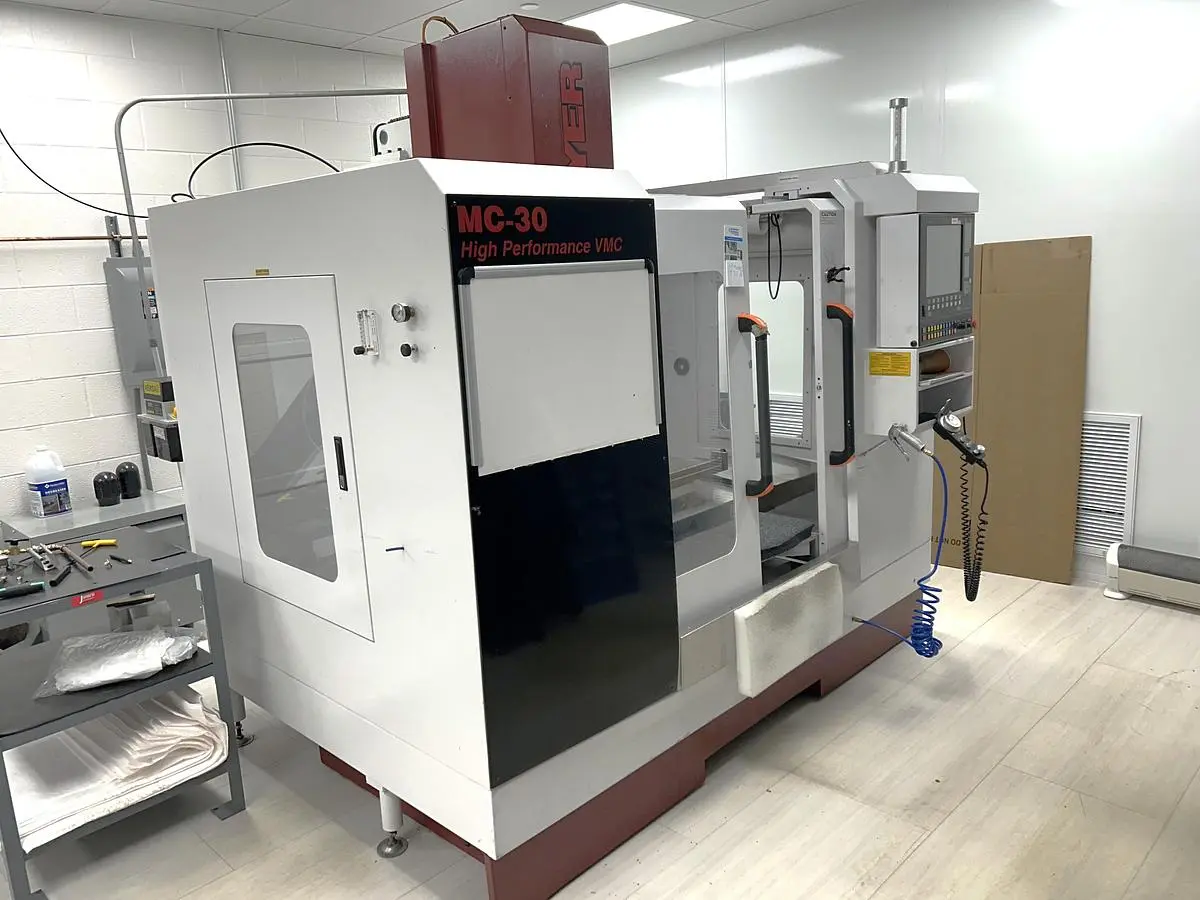

The 2015 Fryer MC-30 is a used CNC vertical machining center designed for precision and efficiency, equipped with a Siemens 840D SL control. It features a spacious 31.5" x 16.5" table capable of supporting up to 2,500 lbs. The machine provides a generous travel range with X-axis travel of 30", Y-axis travel of 18", and Z-axis travel of 22", making it suitable for a variety of machining tasks.

The machine's CAT 40 spindle tapers with a maximum speed of 8,500 RPM powered by a robust 30 HP spindle motor, ensuring high performance on demanding projects. The spindle center is positioned 18" from the column, with a spindle nose-to-table top distance ranging from 3" to 25". Rapid traverse rates are 1200 IPM for the X and Y axes and 900 IPM for the Z axis, enhancing operational efficiency.

With dimensions of 93" x 86" x 76" and weighing 9,000 lbs, the MC-30 is a substantial piece of equipment requiring adequate space. Please note that this model includes a remote jog handle but lacks both a coolant system and a tool changer. This makes it ideal for users who either have external solutions available or don't require these capabilities for their specific operations.

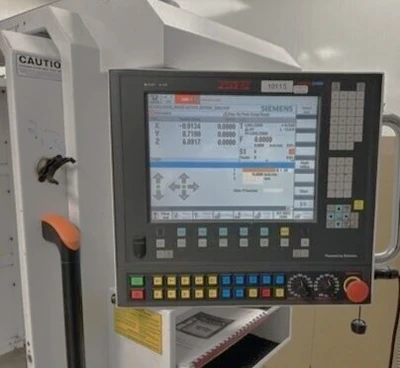

Control: Siemens 840D SL Control
Table Size: 31.5" x 16.5"
Maximum Table Load: 2,500 lbs
X-Axis Travel: 30"
Y-Axis Travel: 18"
Z-Axis Travel: 22"
Spindle Taper: CAT 40
Spindle Speed: 8,500 RPM
Spindle Motor: 30 HP
Spindle Center to Column: 18"
Distance Spindle Nose to Table Top: 3" - 25"
Rapid Traverse Rates X, Y / Z: 1200 IPM / 900 IPM
Machine Dimensions LxWxH: 93" x 86" x 76"
Machine Weight: 9,000 lbs.
