USED 2004 TAKUMI V-22

Coolant Through the Spindle

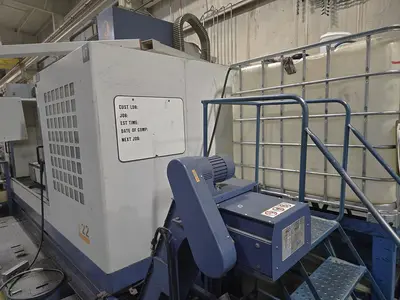

Dual Chip Conveyors
24 Station Side Mounted Tool Changer
Manual Pulse Generator
RS-232C Port Interface
Boxed Way Contruction
Rigid Tapping
Flood Coolant
Spindle Chiller Unit
Spindle Air Blast
Coolant System with Tank & Pump
Helical Interpolation
Work Light
3 Color Machine Status Condition Lights
Ethernet Interface
RS-232 Port Interface
All Available Manuals

**Machine is Currently Holding Accuracy of .001 to .0025” linear and circular, Machine under power for viewing**

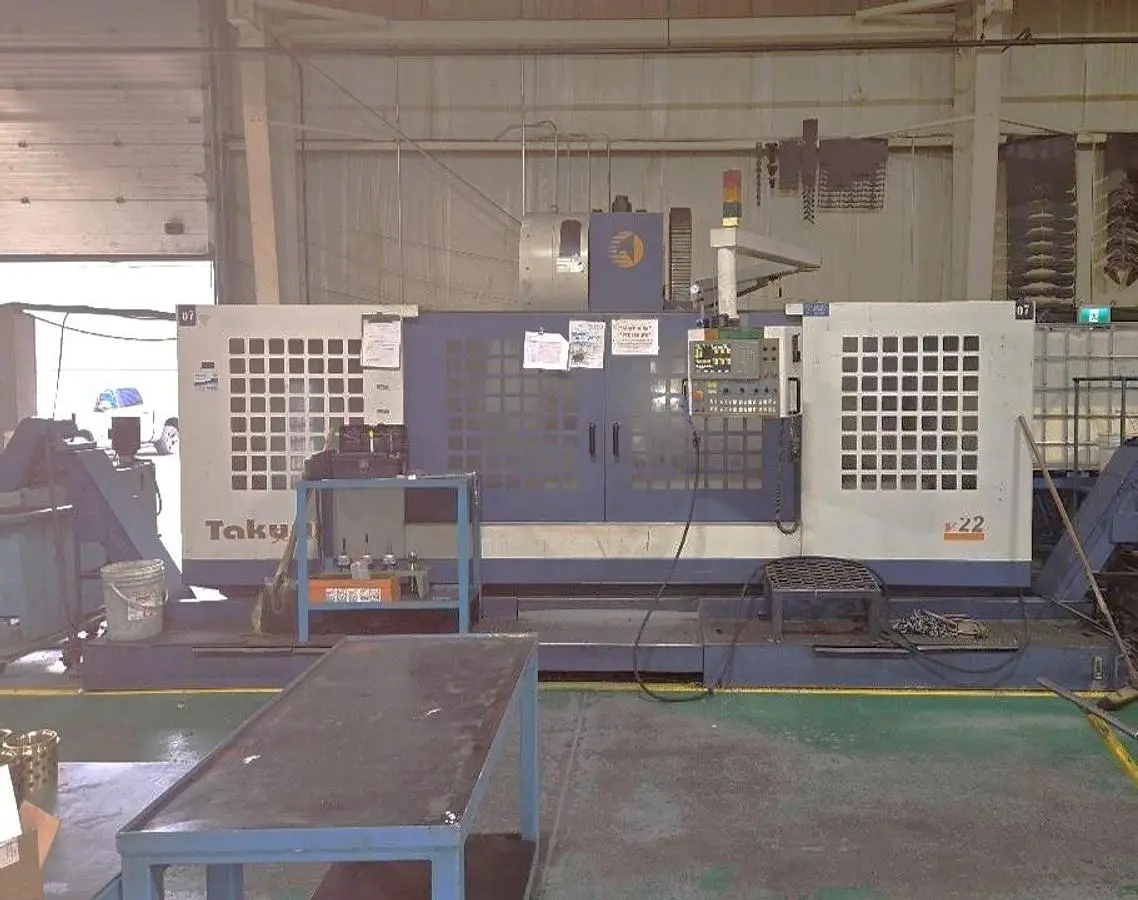

The 2004 Takumi V-22 is a robust CNC Vertical Machining Center, designed for precision and efficiency in a variety of industrial applications. It features a Mitsubishi Control system and sports a substantial table size of 86.6" x 40.35", capable of supporting up to 6,614 lbs. The machine provides generous travel dimensions, with 86.58" in X-axis, 41.79" in Y-axis, and 29.72" in Z-axis, making it suitable for complex machining tasks.

This model is equipped with a BT #50 Spindle Taper, reaching speeds from 60 to 6,000 RPM, powered by a 35 HP motor. For added convenience, it includes a 24-position side mount Automatic Tool Changer and a rapid tool change time of 7 seconds, enhancing productivity. It offers rapid traverse rates of 787 IPM for X, Y, and Z axes, and cutting feedrates of 393.7 IPM.

The machine is structured with boxed ways ensuring stability and precision. With dimensions of 225" x 156" x 138" and a weight of 43,431 lbs, this machine is built for heavy-duty operations. Additional features such as a coolant thru spindle, conveyor, and Fanuc control augment its functionality, with a focus on reliability and performance in demanding machining environments.

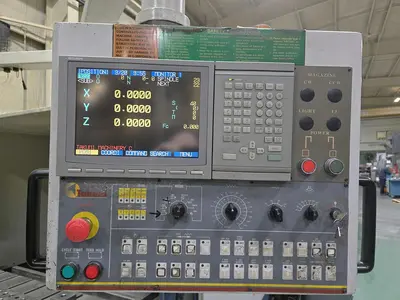

Machine Control: Mitsubishi Control

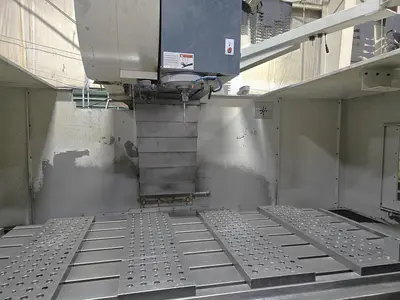

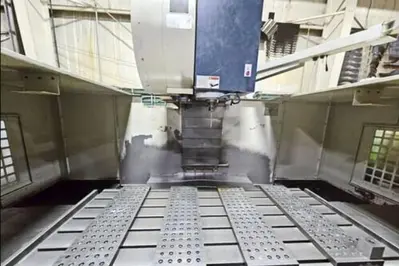

Table size: 86.6" x 40.35"
Table load capacity: 6,614 lbs.
X-axis travel: 86.58"
Y-axis travel: 41.79"
Z-axis travel: 29.72"

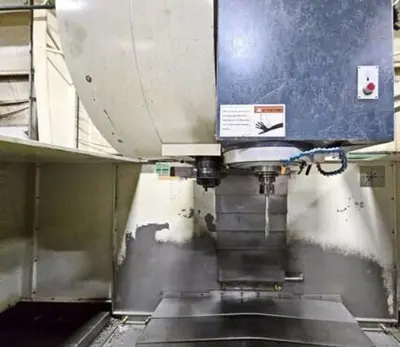

Spindle taper: BT #50 Taper
Spindle speed: 60 - 6,000 RPM
Spindle motor (2 speed geared): 35 HP
Spindle nose to table top: 37.4"

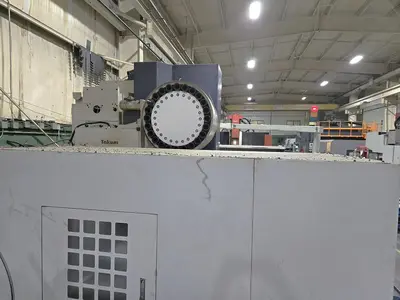

Tool magazine capacity - side mount: 24 Position ATC
Tool change time (chip-to-chip): 7 seconds
Maximum tool diameter/length/weight: 7.87"/11.8"/33 lbs.
Rapid traverse rates x, y / z: 787 IPM
Cutting feedrates: 393.7 IPM
Machine dimensions: 225" x 156" x 138"
Machine weight: 43,431 lbs.
