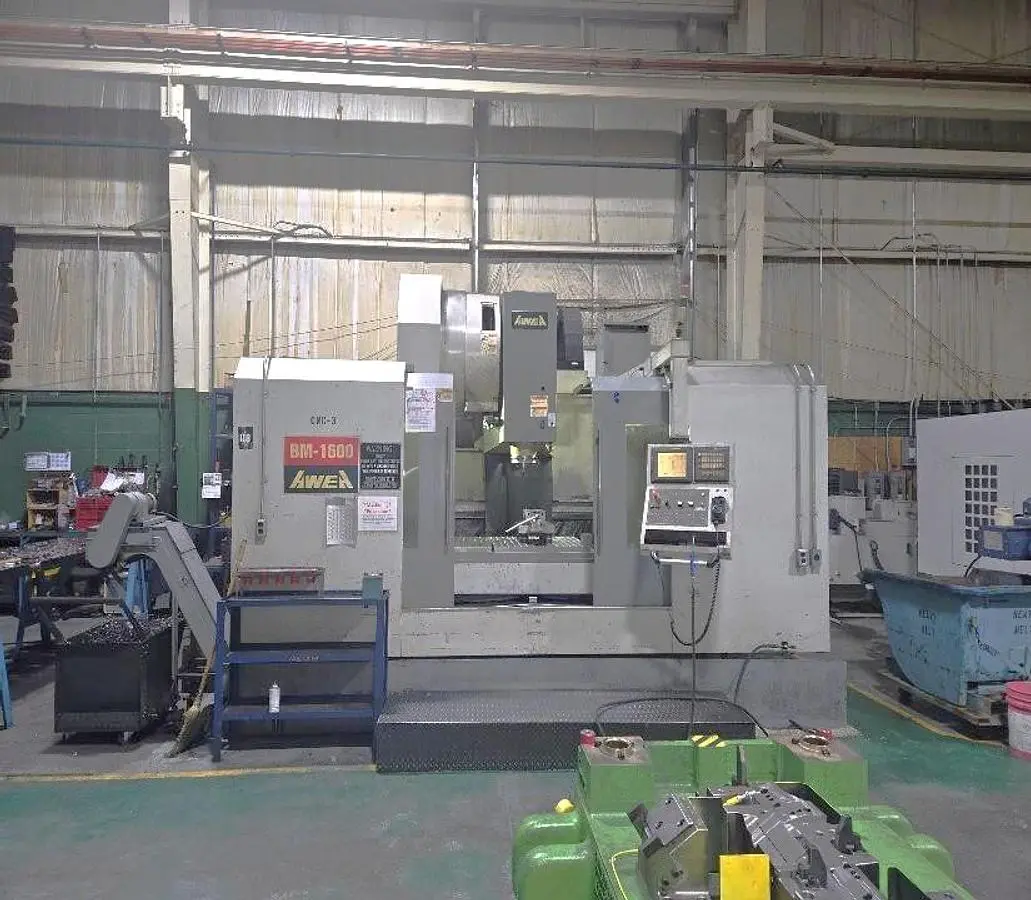

USED 2005 AWEA BM-1600

Chip Conveyor
Coolant Through the Spindle 24 Station Side Mounted Tool Changer Manual Pulse Generator
Rigid Tapping
Flood Coolant
Spindle Oil Chiller Unit
Spindle Orientation RS-232C Port Interface
Boxed Way Construction
Coolant System with Tank & Pump
Helical Interpolation
Work Light
All Available Manuals

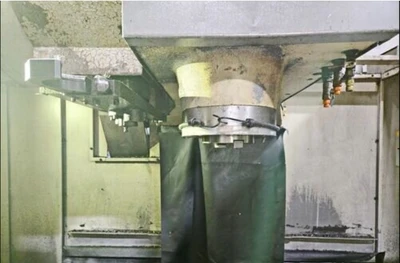

**Rear Y Axis Way Cover is Currently Removed and Using Plastic Sheeting Temporarily. Way Covers are Available But Need to Be Repaired**

**Machine is Currently Holding Accuracy of .001 to .0015” linear and circular, Machine under power for viewing**

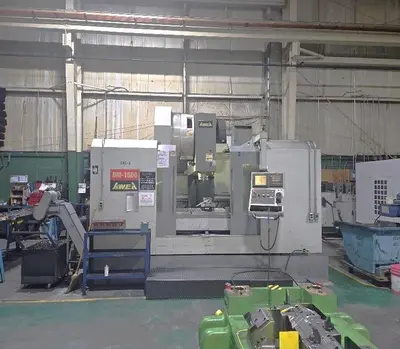

The 2005 Awea BM-1600 is a 3-axis vertical machining center known for its robust capabilities and precision. It features a large table size of 78.7" x 31.5", supporting a load capacity of up to 4,400 lbs. The machine is driven by a Fanuc 18-iM control system, ensuring reliable operation. The BM-1600 offers substantial travel dimensions with 63" on the X-axis and 31.5" on both the Y and Z axes, making it suitable for handling larger workpieces.

Equipped with a CAT 50 spindle taper, the spindle motor provides a flexible speed range from 60 to 6,000 RPM, powered by a 25 HP, two-speed geared spindle motor. Tool handling is efficient with a 24-position side-mount automatic tool changer (ATC), allowing a swift tool change time of 7 seconds chip-to-chip. The machine is capable of rapid traverse rates of 787 IPM on the X and Y axes, and 393.7 IPM cutting feed rates, ensuring fast production cycles.

The Awea BM-1600 is designed with boxed ways for enhanced stability and durability. Additional features include a chip conveyor and RJH, optimizing the machining process by maintaining cleanliness and reducing downtime. With dimensions of 185" x 128" x 122" and a total weight of 35,000 lbs., this machine is a formidable addition to any heavy-duty manufacturing operation, providing high precision and reliability.The 2005 Awea BM-1600 is a reliable used CNC Vertical Machining Center, designed for efficiency and precision in industrial manufacturing tasks. Equipped with a Fanuc 18-iM control, this machine ensures streamlined operation and ease of use. Its robust build features boxed ways and a chip conveyor, making it suitable for heavy-duty tasks. The machine's table size is generous at 78.7" x 31.5", with a load capacity of up to 4,400 lbs, accommodating large workpieces.

This 3-axis VMC provides extensive travel distances with 63" on the X-axis and 31.5" on both the Y and Z-axes. It is powered by a 25 HP, 2-speed geared spindle motor, offering variable speeds from 60 to 6,000 RPM and ensuring flexibility for various machining requirements. The spindle taper is a CAT 50, ideal for heavy cutting tasks, and the spindle center to column reaches 35.4". Tool management is optimized with a 24-position side mount automatic tool changer, allowing quick tool changes to enhance productivity.

With rapid traverse rates of 787 IPM and cutting feed rates of 393.7 IPM, the Awea BM-1600 is built for speed without compromising accuracy. It also has a machine weight of 35,000 lbs, ensuring stability during operation. The overall dimensions are 185" x 128" x 122", making it a considerable presence in any workshop setting. This machine is a solid choice for those looking to balance performance with reliability.

Machine Control: Fanuc 18-iM Control
Table size: 78.7" x 31.5"
Table load capacity: 4,400 lbs.
X-axis travel: 63"
Y-axis travel: 31.5"
Z-axis travel: 31.5"
Spindle taper: CAT 50
Spindle speed: 60 - 6,000 RPM
Spindle motor (2 speed geared): 25 HP
Spindle center to column: 35.4"
Spindle nose to table top: 7.87" - 39.3"

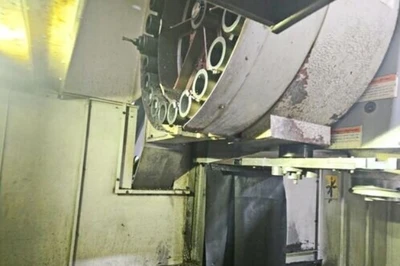

Tool magazine capacity - side mount: 24 Position ATC
Tool change time (chip-to-chip): 7 seconds
Maximum tool diameter/length/weight: 7.87"/11.8"/33 lbs.
Rapid traverse rates x, y / z: 787 IPM
Cutting feedrates: 393.7 IPM
Machine dimensions: 185" x 128" x 122"
Machine weight: 35,000 lbs.
