USED 2022 DMC DL22LA

Chip Conveyor
Parts Catcher
Tailstock
8" 3 Jaw Hydraulic Chuck
Boxed Ways
Coolant System with Tank & Pump
3 Color Machine Status Condition Lights
Wired 220V Electrics
All Available Tooling
All Available Manuals

**Runs good, owner replacing it with a live tool machine**

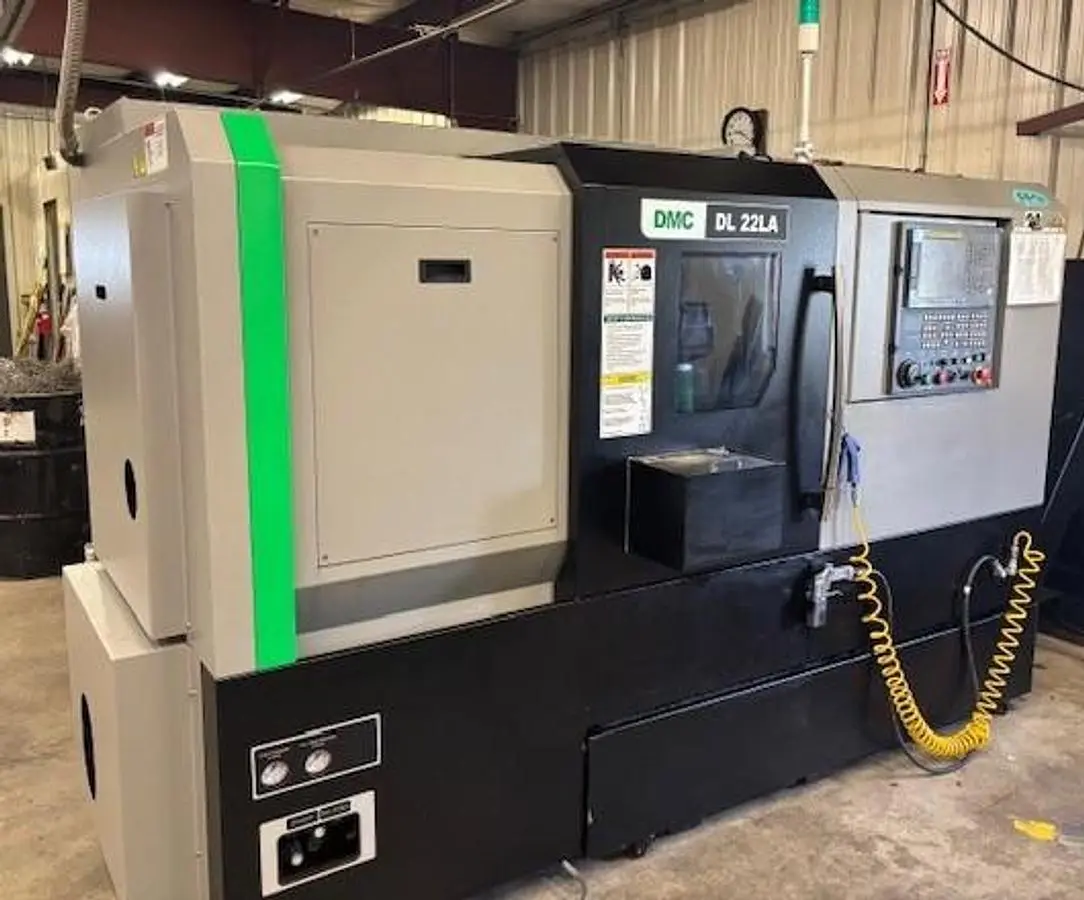

The 2022 DMC DL22LA is a reliable used CNC lathe machine that features an 8-inch 3-jaw hydraulic chuck and supports a maximum bar capacity of 2.08 inches. Suitable for various machining applications, it provides a maximum swing of 21.65 inches and can handle a maximum turning diameter of 11.81 inches, with a cutting length reaching up to 22.44 inches. Powered by a 20 hp spindle motor, this model operates at speeds up to 4,000 rpm.

Equipped with a Fanuc Oi control system, this lathe ensures efficient and user-friendly operation. The machine includes 12 bi-directional turret positions for versatile tooling options. It also comes with practical features such as a tailstock for stability during operations, a chip conveyor to maintain a clean working environment, and a parts catcher for effective part management.

With dimensions of 110 inches long, 64 inches wide, and 65 inches high, and weighing approximately 6,613 lbs, the DMC DL22LA is designed for robust performance while maintaining a compact footprint suitable for various shop sizes. This machine is a practical choice for those seeking reliability and efficiency in machining tasks.

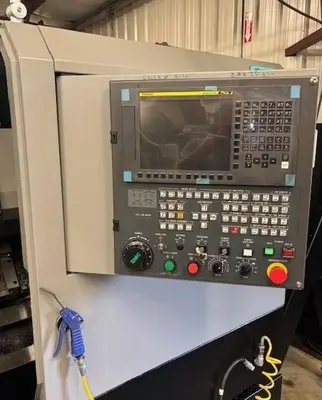

Machine Control: Fanuc Oi
Chuck Sizes: 8" 3-Jaw Hydraulic
Maximum Swing: 21.65"
Maximum Turning Diameter: 11.81"
Maximum Cutting Length: 22.44"
Maximum bar capacity: 2.08"
Spindle Speed: 4,000 rpm
Spindle Motor: 20 hp
Number of Turret Positions: 12 Bi-Directional Indexing
Machine Dimensions LxWxH: 110"x64"x65"
Machine Weight: 6,613 lbs
