Tank, 11,500 Gallon, Stainless Steal, Vertical, Enerfab, Agitated, #5991732

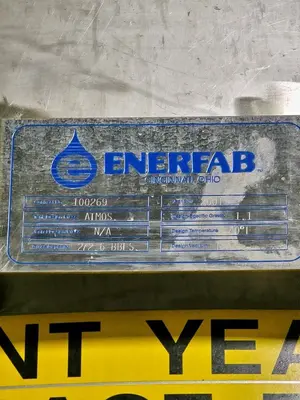

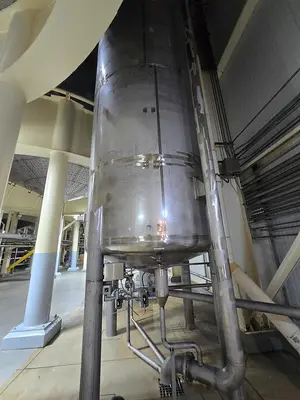

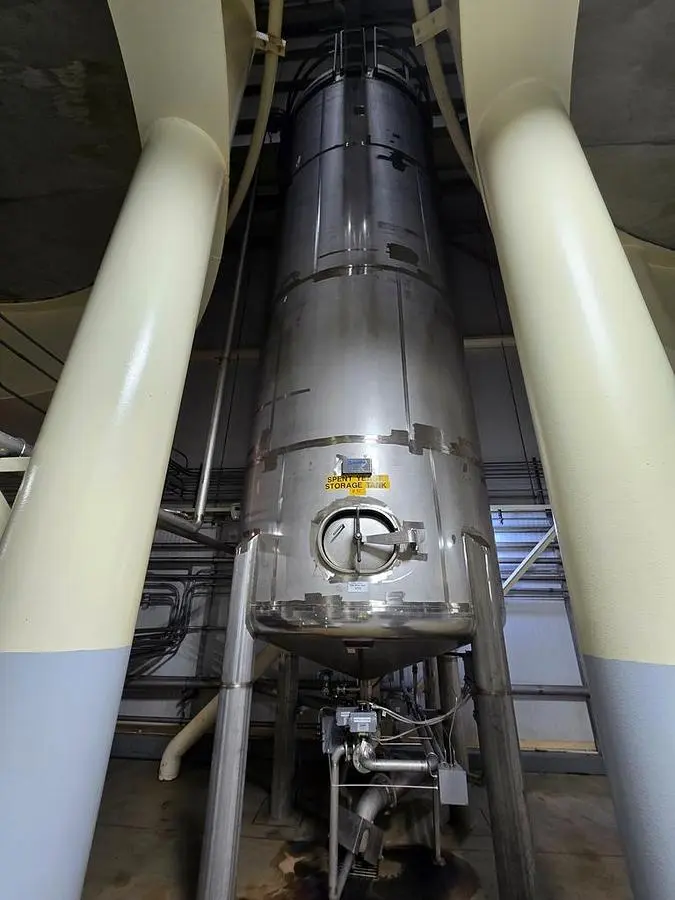

Enerfab vertical stainless steel Agitated Tank with approximately 11,500 gallon capacity (272.6 BBL), constructed from 304 stainless steel and built in 2001 for atmospheric service. Vessel measures approximately 101.75" diameter x 26'-6" straight side with overall height of approximately 34'-11 3/4". Features a cylindrical shell with dished top head and cone bottom for efficient drainage, along with a bottom discharge outlet and multiple top and side nozzles. Includes side manway access and internal drop tube/piping. Mounted on structural legs with base ring support. Nameplate indicates design specific gravity of 1.1 and design temperature of 40°F. Tank is not jacketed and is not rated for pressure or vacuum service. Previously used as a spent yeast storage tank.

Stock Number: 5991732
Manufacturer: Enerfab
Year: 2001
Serial Number: 100269
Gallons: 11,500 Gallons
Pressure: Atmospheric
Materials of Construction: Stainless Steel
Agitator Type: Top Entering Center Agitation
Basis: Each, As-is, Where-is
