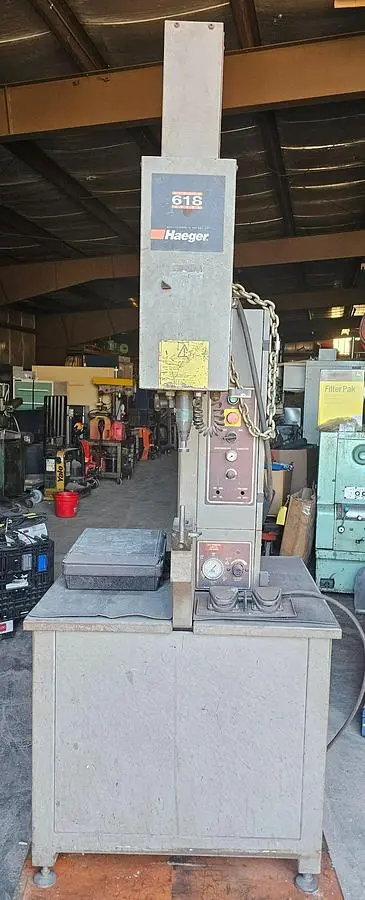

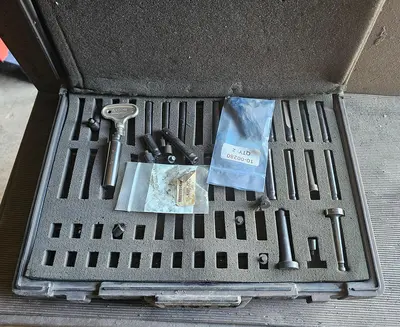

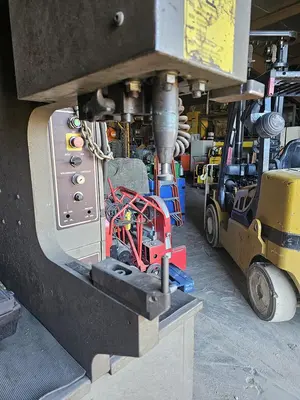

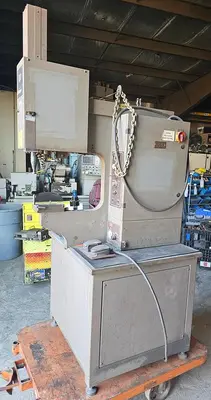

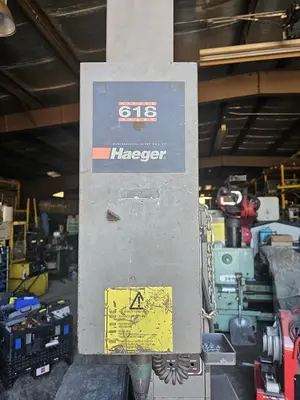

Haeger 618 6-Ton Hydraulic Fastener Insertion PressThe Haeger 618 is the industry standard for high-precision fastener insertion in sheet metal fabrication. This manual-feed model is prized for its reliability, rapid setup times, and "bottom-of-stroke" consistency. Designed for "high-mix, low-volume" production, this unit is ideal for shops that need to switch between various fastener sizes without the complexity of a vibratory bowl system.This specific machine is a "turn-key" package, including a dedicated Haeger Modular Tooling Kit, allowing for immediate production upon installation.Technical SpecificationsCapacity: 6 Tons (12,000 lbs)Throat Depth: 18"Stroke Length: 0" to 8.5" (Adjustable)Feed System: Manual FeedSafety System: Integrated Haeger Safety (Protects operator and workpiece)Controls: Dual Foot-Pedal Operation for hands-free positioningPressure Adjustment: Precision dial with high-visibility analog gaugeElectrical: 3-Phase Industrial (Standard 208-230/460V configuration)Weight: ~1,600 lbsFootprint: 34" x 38" x 90"Machine Highlights & FeaturesIncluded Modular Tooling Kit: Comes complete with a Haeger tooling box featuring various punches, anvils, holders, and a T-handle wrench. This kit alone represents significant value and eliminates the need for separate tooling procurement.Versatility: Capable of installing self-clinching nuts, studs, and standoffs in a wide range of materials and thicknesses.Ergonomic Design: Open-throat design allows for easy handling of large or complex-shaped workpieces.Proven Durability: Self-contained hydraulic system designed for low-maintenance, long-term industrial use.
* Capacity: 6 Tons (12,000 lbs)
* Stroke Length: 0" to 8.5" (Adjustable)
* Throat Depth: 18"
* Feed System: Manual Feed
* Weight: ~1,600 lbs
