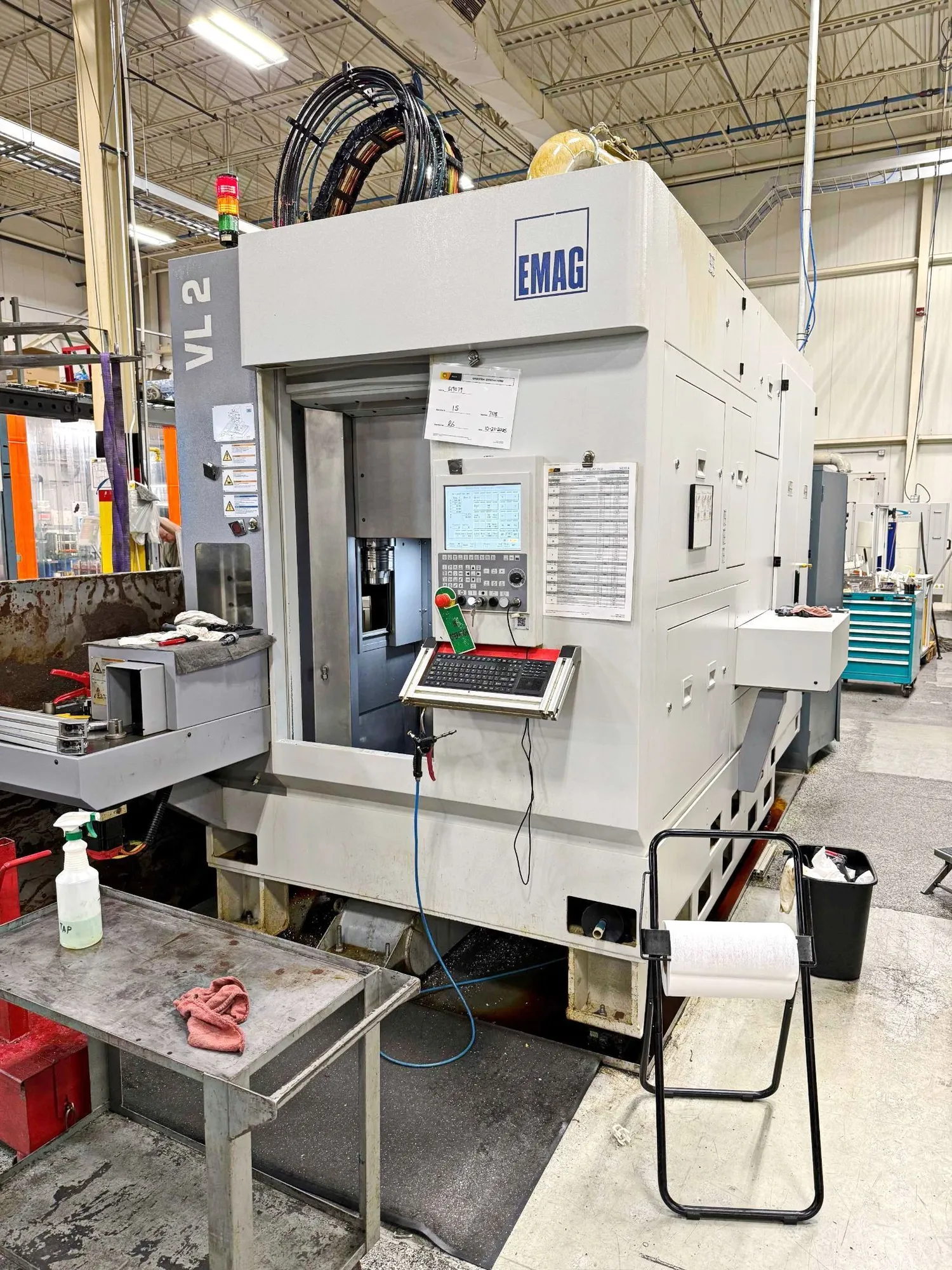

2018 Emag VL 2 Vertical Pick-Up CNC Lathe, Pick-Up Spindle Automatic Loading System, Integrated Part Conveyor System, Hydraulic Power Chuck, Vertical Spindle Configuration, Chip Conveyor, Assorted Tooling
| Swing | 8.3" | 210.82 mm |
| Machining Length | 6" | 152.4 mm |
| Max Turning Dia | 4" | 101.6 mm |
| # Axis | 2 | 2 |
| Chuck Size | 6.5" | 165.1 mm |
| Power | 26 hp | 19.4 kW |
| Max RPM | 6,000 RPM | 6,000 RPM |
| X-Axis Travel | 27.5" | 698.5 mm |
| Z-Axis Travel | 15" | 381 mm |
| C-Axis | 0.01° | 0.01° |
| Tailstock | No | No |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Rapid Traverse (X/Z) | 2,363 / 1,181 in/min. | 2,363 / 1,181 in/min. |
| Turret Capacity | 12 | 12 |
| Control | CNC (Emag) | CNC (Emag) |
| Dimensions | 100" X 63" X 103" (Approx.) | 100" X 63" X 103" (Approx.) |
| Weight | 12,125 lb (Approx.) | 12,125 lb (Approx.) |
Pick-up spindle automatic loading system
Integrated part conveyor system
Hydraulic power chuck
Vertical spindle configuration
Coolant system
Chip conveyor
Assorted tooling
