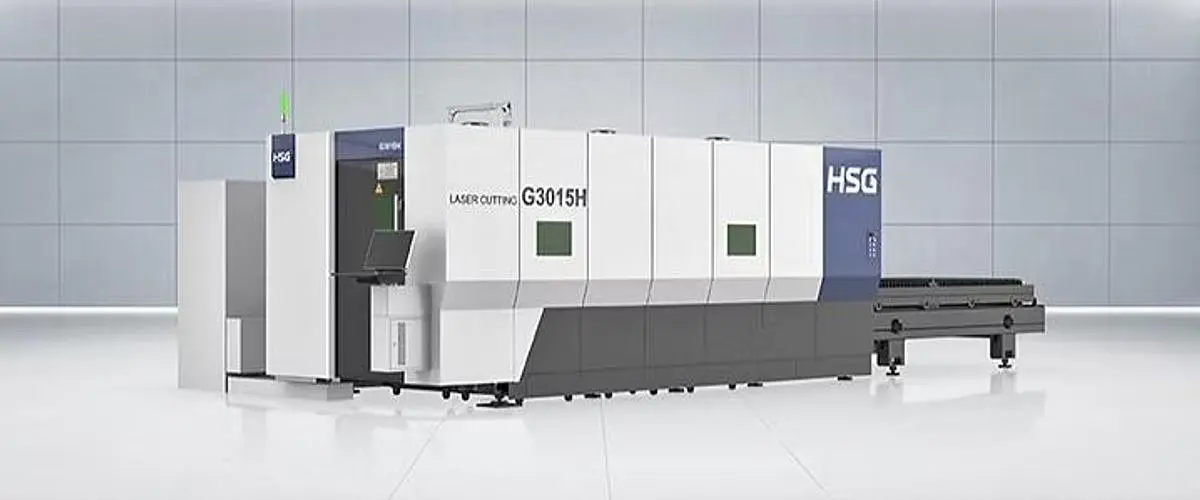

NEW HSG G3015H-20

Resonator Wattage: 20,000 Watts
Table Size: 5' x 10'
Max Workpiece Weight: 3100 lbs.
X/Y Positioning/Reposition Accuracy: 0.001811" / 40"
Max. Positioning Speed: 657 FPM
Travels X Axis: 61"
Travels Y Axis: 121"
Acceleration Speed: 4G
Overall Dimensions (approx.): 32 x 7.8' x 8.6'H

Equipped with:
HSG Control
HSG Laser Head
20kW Raykus Resonator
Shuttle Table
Air-Conditioning Cabinet
Safety Protection Package
CypNest Software
Transformer
Voltage Stabilizer
Camera System
Chiller
Dust Collector
Note: New 37TK Air Compressor Available at Additional Cost
