USED ADCO AFHXX-40-3

Manufacturer Information:

Brand: Adco

Model: AFHXX-40-3-WD

Serial Number: 5871SL

Description:

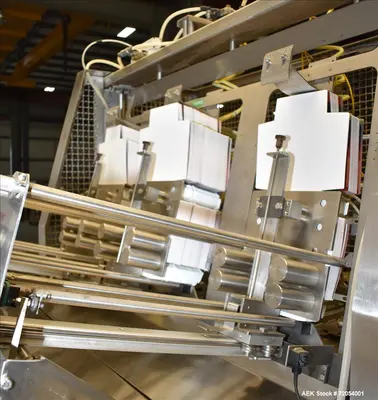

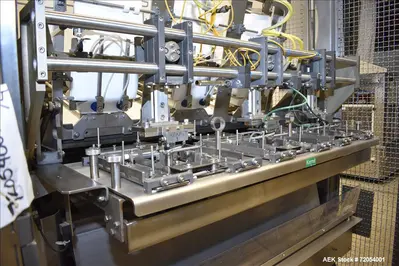

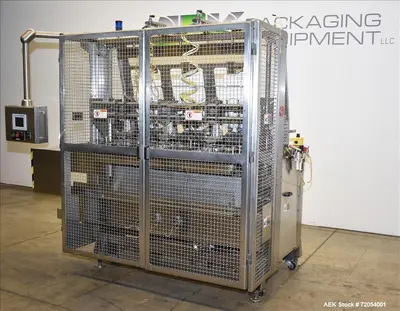

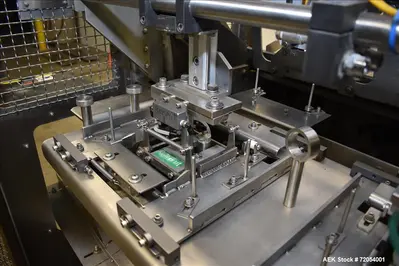

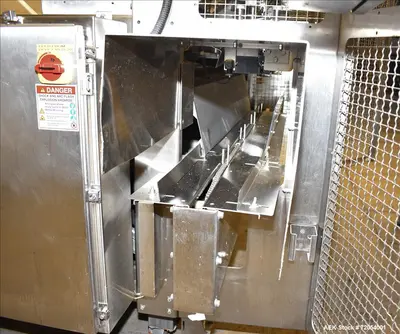

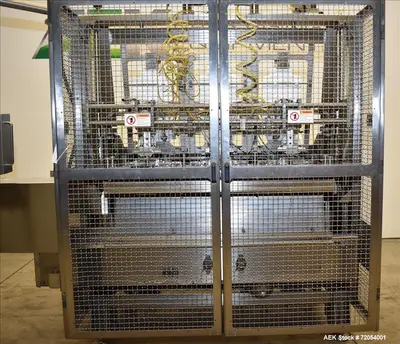

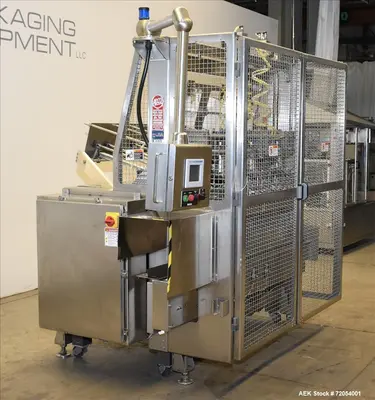

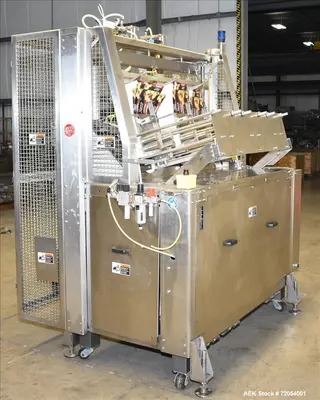

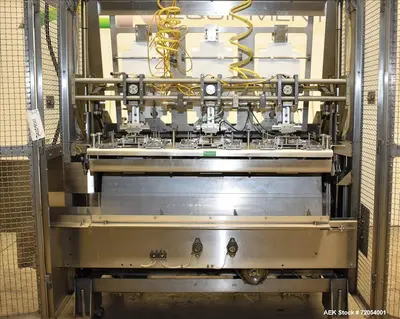

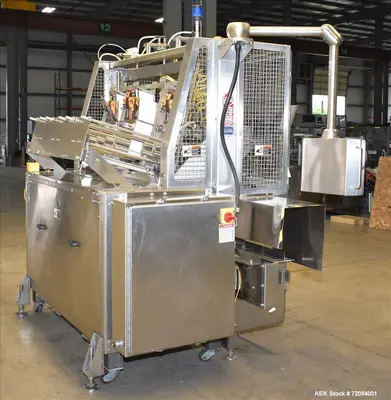

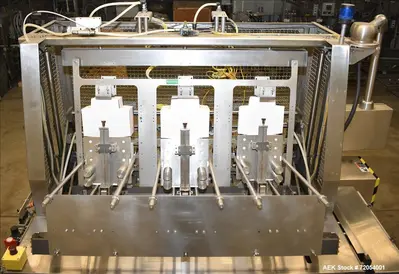

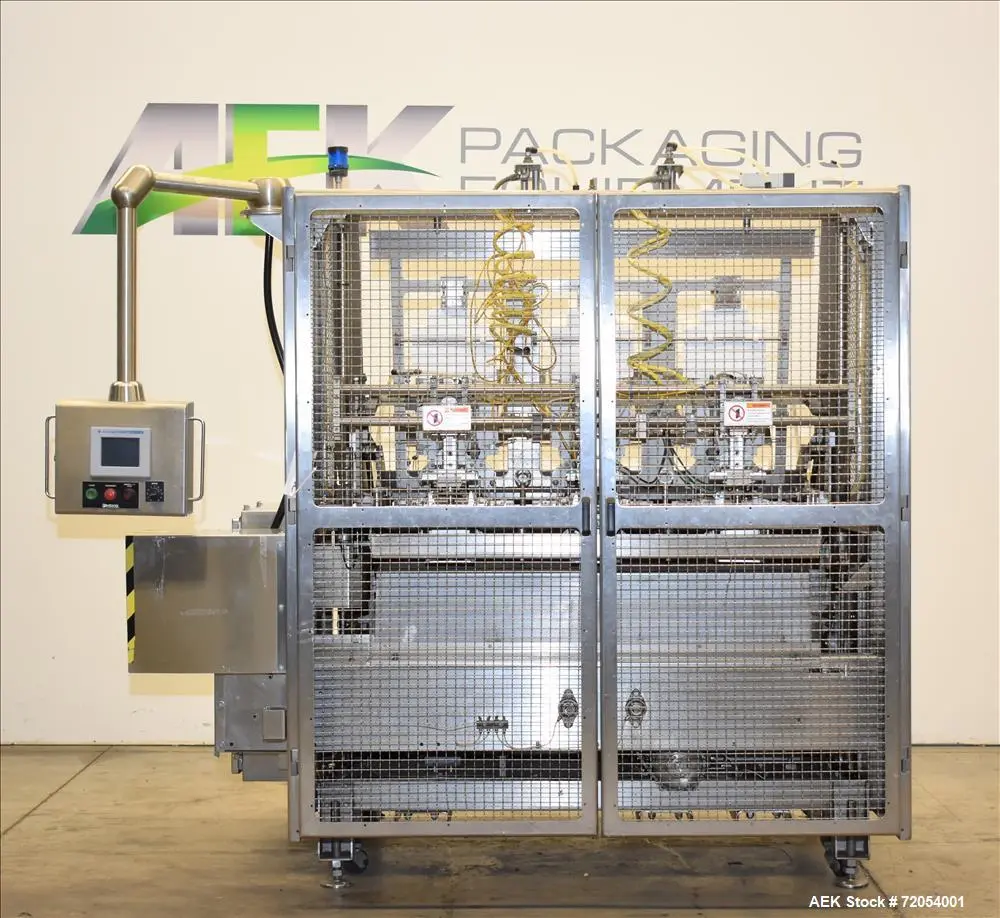

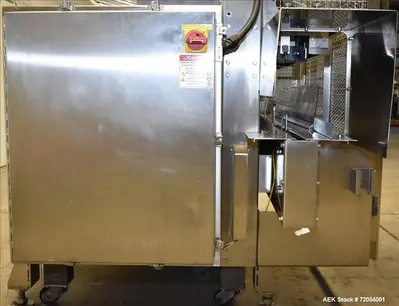

The Adco AFHXX-40-3-WD Triseal Carton Former is a high-performance packaging system designed for forming tab-lock style hooded trays. Featuring three forming heads, this machine efficiently handles a variety of top-load carton and hooded tray sizes.

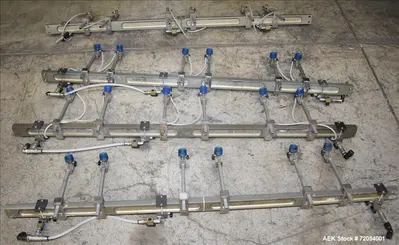

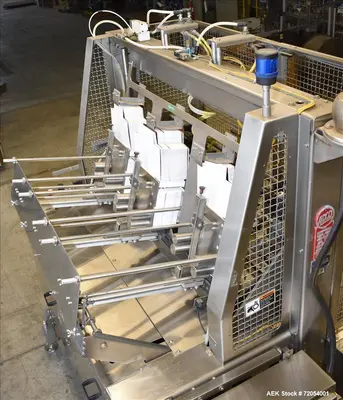

Constructed entirely of stainless steel and NEMA 4X washdown-rated, this unit is ideal for food, pharmaceutical, and industrial applications requiring sanitary conditions. The system is equipped with a vacuum generator blank pick-and-place mechanism for precise and reliable operation.
Currently tooled for three tray sizes (6-7/8" x 6-1/4" x 2-1/4"), with additional tooling available upon request. The machine operates on Allen-Bradley CompactLogix L32E PLC and an Allen-Bradley PanelView 600 HMI for seamless control and automation.
Specifications:

Machine Type: Triseal Carton Former

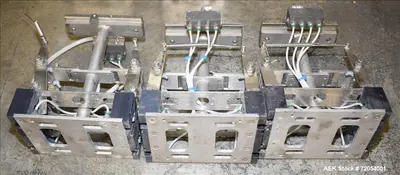

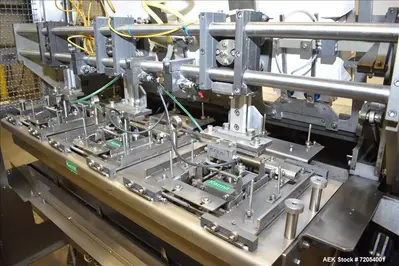

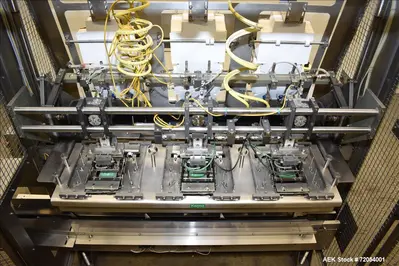

Number of Forming Heads: 3

Tray Style: Tab-lock hooded trays

Construction: Stainless steel, NEMA 4X washdown-rated

Carton/Hooded Tray Size Range:

Length: 3" to 17"

Width: 3" to 8"

Depth: 0.75" to 4" (subject to tooling)

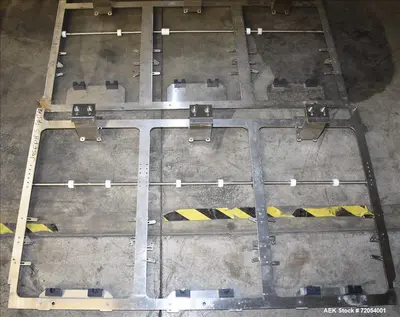

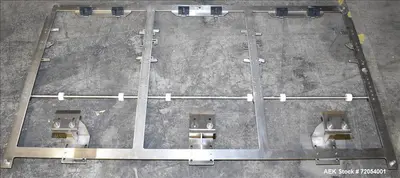

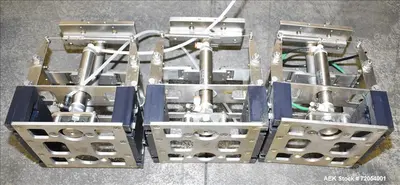

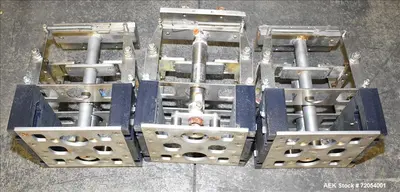

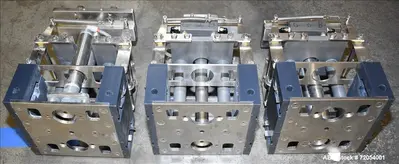

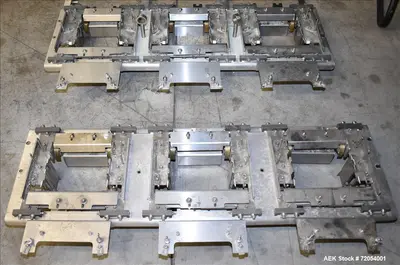

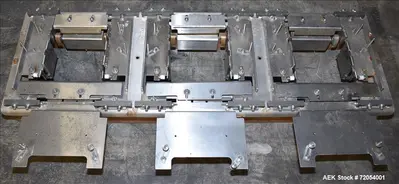

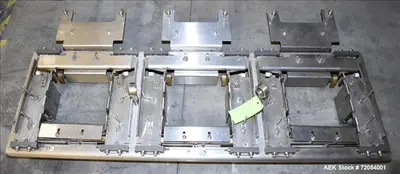

Current Tooling: Three tray sizes (6-7/8" x 6-1/4" x 2-1/4")

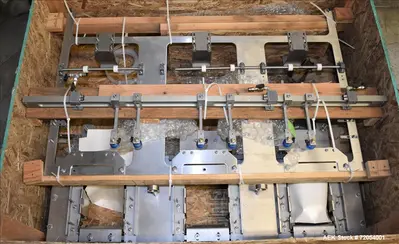

Additional Tooling: Available upon request

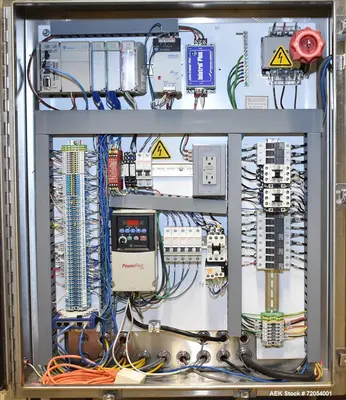

Controls:

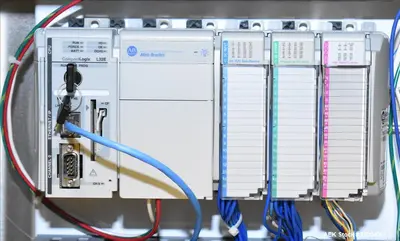

Allen-Bradley CompactLogix L32E PLC

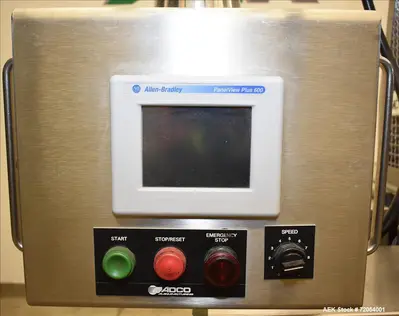

Allen-Bradley PanelView 600 HMI

Power Requirements: 230V, 3PH, 60Hz, 20 AMPS

Compressed Air Requirement: 90 PSI

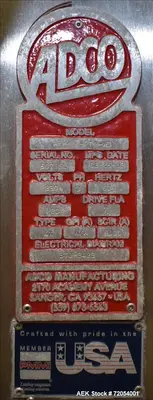

Serial Number: 5871SL

Applications:

Food and beverage tray forming
Pharmaceutical and nutraceutical packaging
Consumer goods carton forming
Industrial and specialty tray forming
Ready-to-eat meal and frozen food packaging

What Products Would This Be Used For?

Bakery and confectionery trays
Pharmaceutical blister packaging trays
Frozen and prepared food packaging
Nutraceutical product trays
Industrial and retail product packaging
