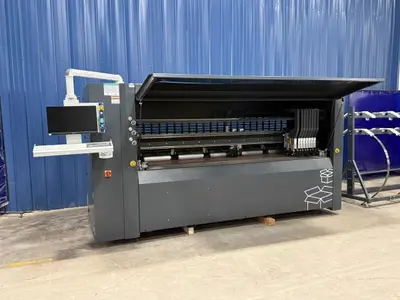

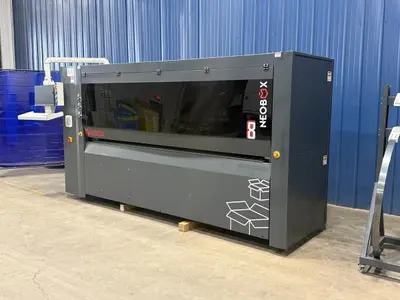

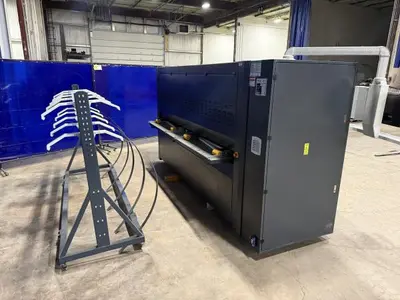

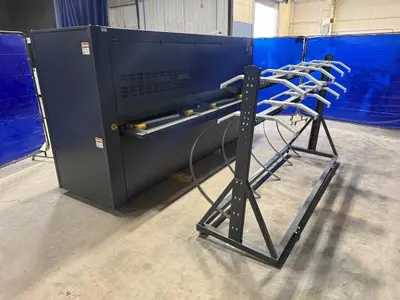

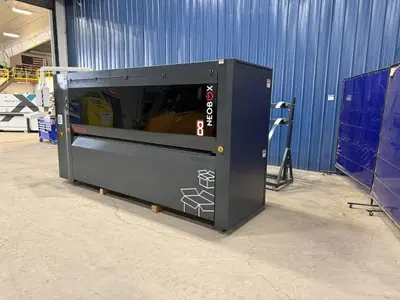

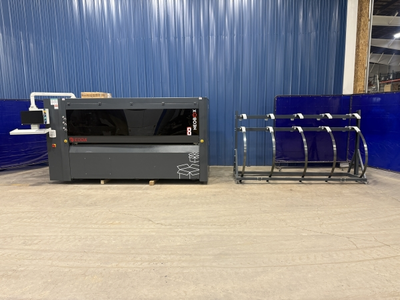

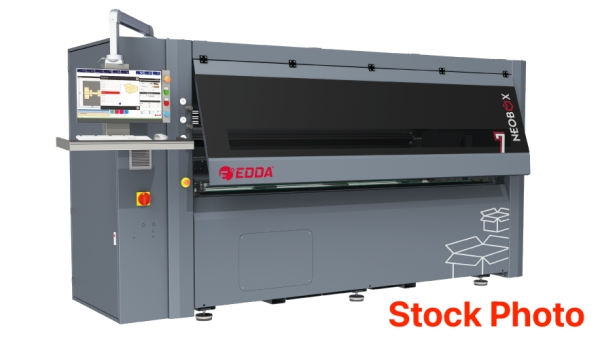

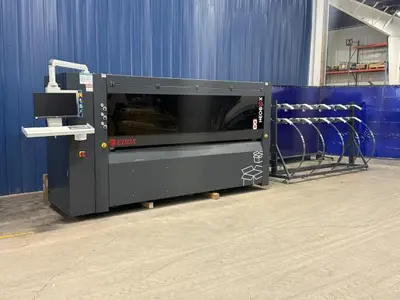

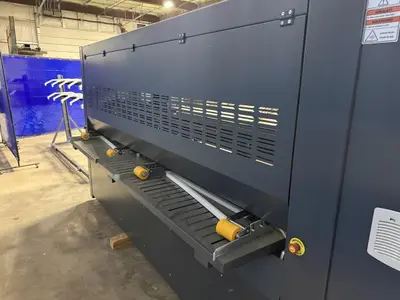

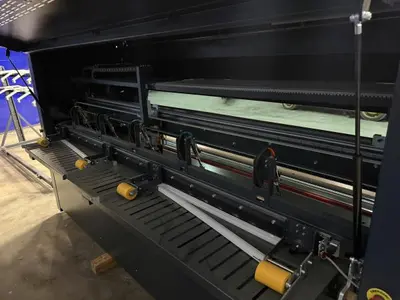

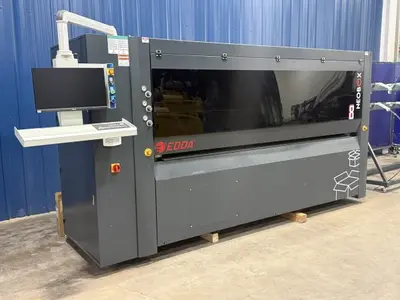

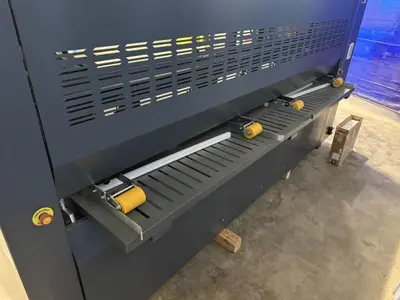

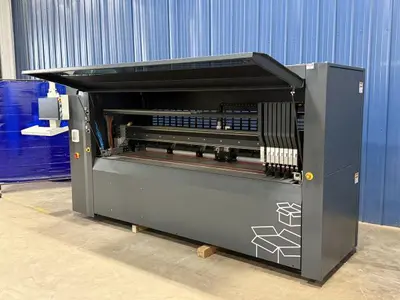

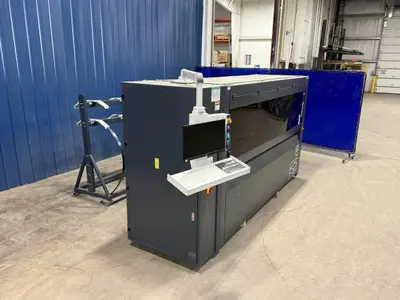

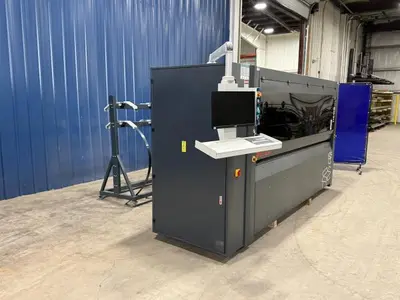

Edda NEOBOX-8-2500 Carboard Cutting Machine

Machine General Features
Tool Positioning System: independent axle driven tool carrying
Max. Cardboard Width: 2500mm
Transversal Axis Speed: 200 m/min
Longitudinal Axis Speed: 120 m/min
Transversal Station: 1

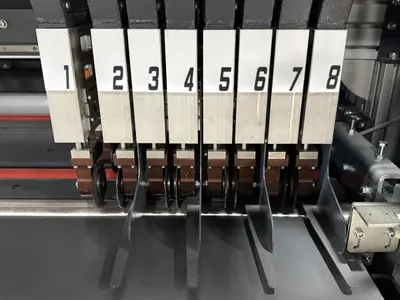

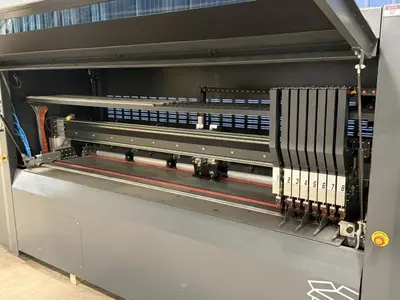

Longitudinal Station: 7 standard (up to 16 optional)
Min. Distance of Tools: 20mm
Min. Length: 350mm
Suitable Cardboard Thickness: 2-7 mm
Pre-defined Box Types: more than 50 pre-defined boxes
New Box Designing Software: installed
Software: EDDAWORKS
Operating Temperature: 10°C (50°F) - 40°C (104°F)

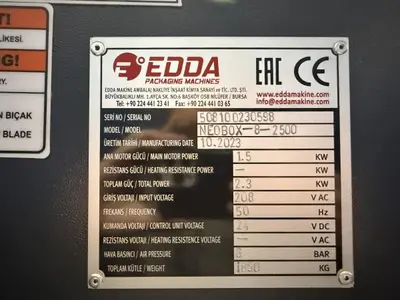

Main Motor Power: 1.5 kW
Electric Supply: 208V, 50 Hz, Single Phase (Monophase)
Total Power: 2.3 kW
Air Required: 6 bar
Total Weight: 1850 kg

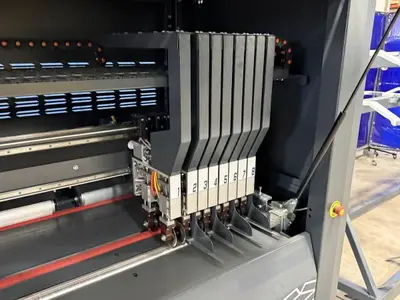

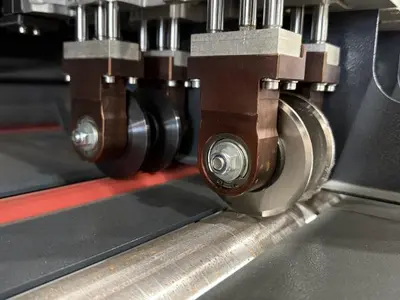

Cutting Tool Specifications
Diameter 76mm
Length: 22mm
Thickness: 2mm
Material: High Speed Steel
NOTE: Specifications from manufacturer literature.
New price $123,000
