USED AESUS DELTA

Manufacturer Information:

Brand: Aesus

Model: Delta Chuckcap

Description:

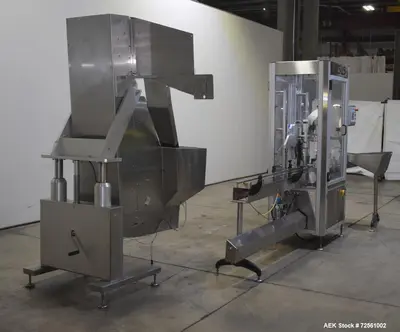

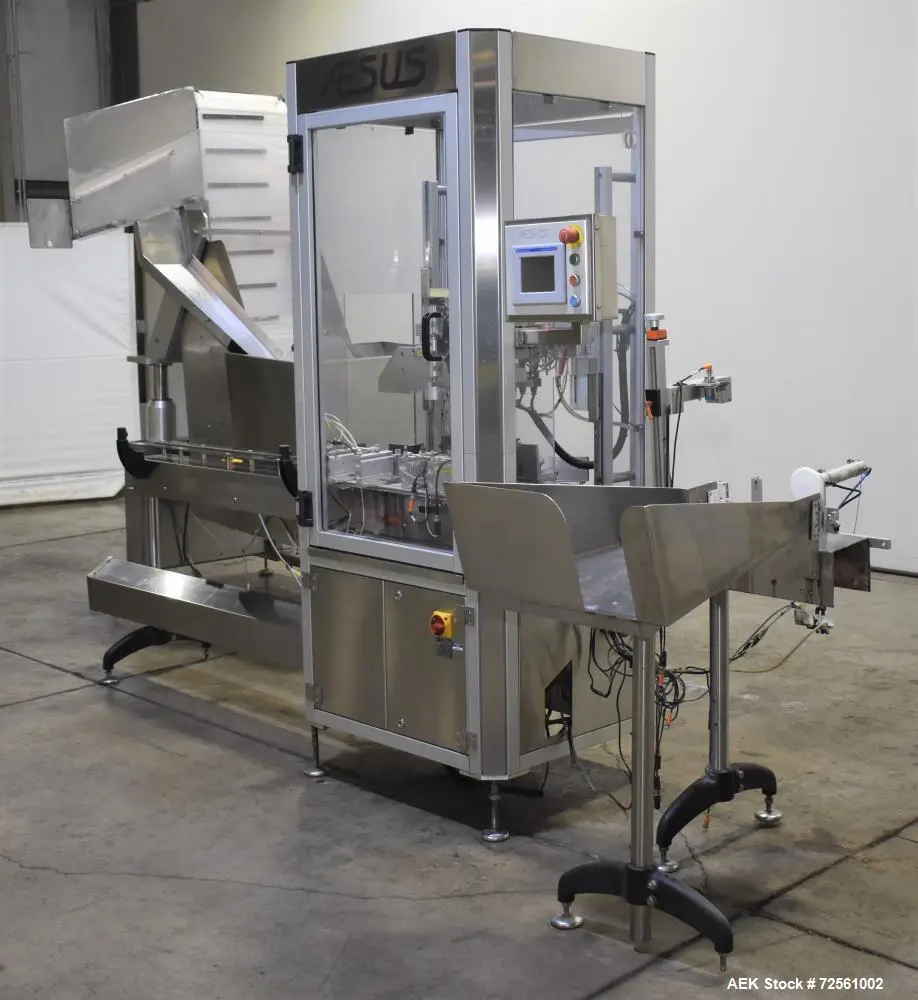

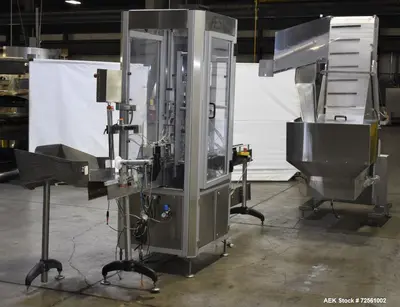

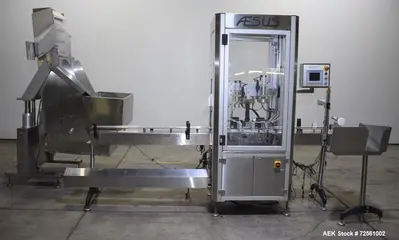

The Aesus Model Delta Chuckcap is an automatic single chuck capper designed for precision capping at speeds of up to 60 containers per minute. Featuring intermittent motion carton indexing, the system includes a two-station tightener with a pre-spin station and a final torqueing station. It accommodates cap sizes ranging from 0" to 5" in diameter and 0" to 1" thick (with changeparts). The bottle size range supports containers up to 10" in diameter and 12" in height.
Equipped with an Allen Bradley Micrologix 1400 PLC, A/B Panelview Plus 600 HMI, and Panasonic servo drives, this machine offers precise control and automation. Pneumatic height adjustment ensures flexibility across various container sizes. The system includes an oversized cap sorting elevator for flat caps up to 5" in diameter. Last used in a nutritional supplement packaging operation, the unit operates on 1/60/208V power.
Specifications:

Machine Type: Automatic Single Chuck Capper

Speed: Up to 60 containers per minute (CPM)

Capping System:

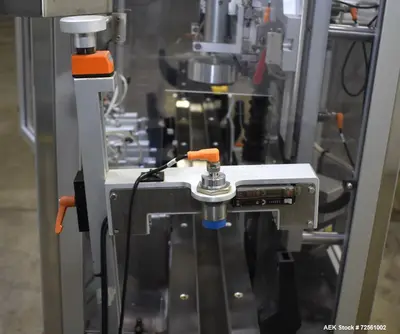

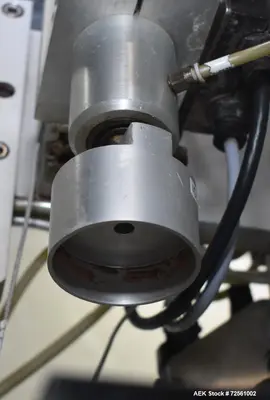

Single chuck capping mechanism

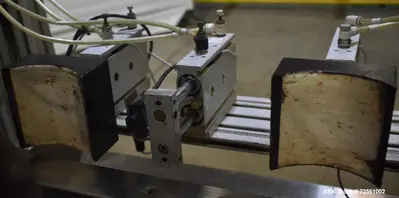

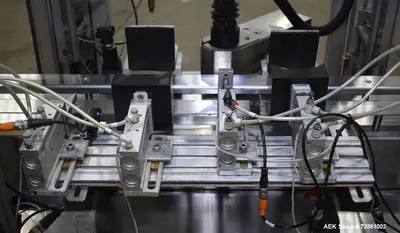

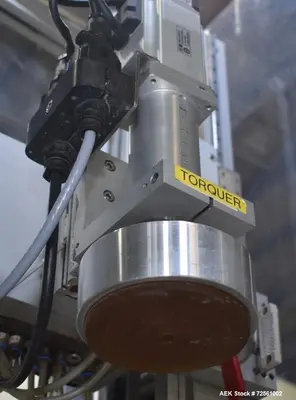

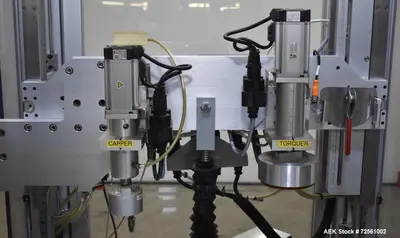

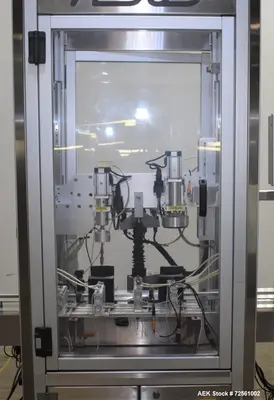

Two-station tightener (pre-spin & final torqueing)

Cap Size Range: 0" - 5" diameter x 0" - 1" thick (with changeparts)

Bottle Size Range: 0" - 10" diameter x 0" - 12" tall

Controls:

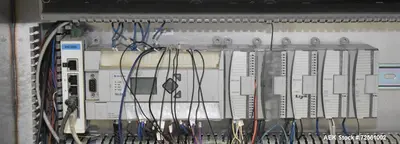

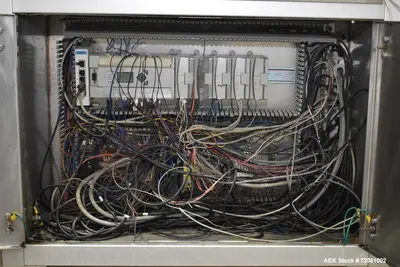

Allen Bradley Micrologix 1400 PLC

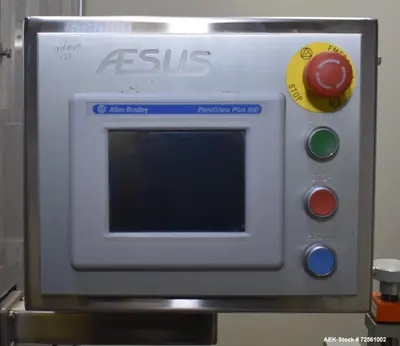

A/B Panelview Plus 600 HMI

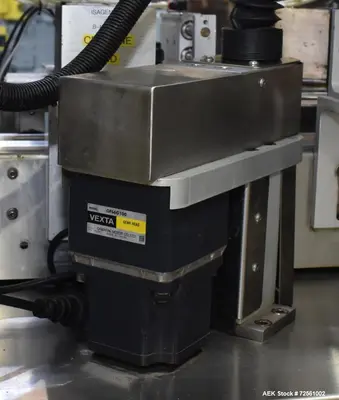

Panasonic servo drives

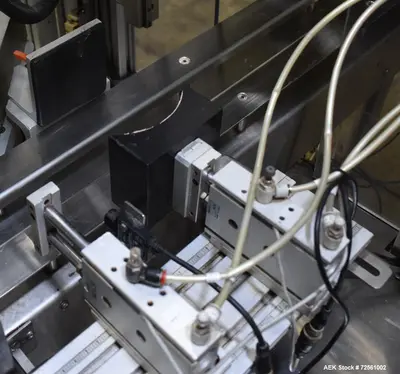

Adjustments: Pneumatic height adjustment

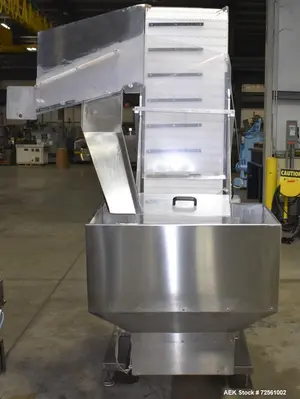

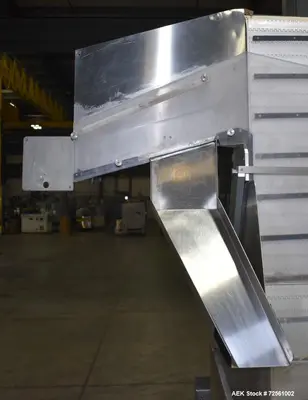

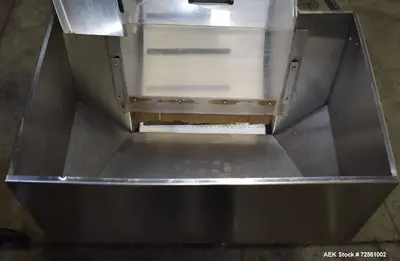

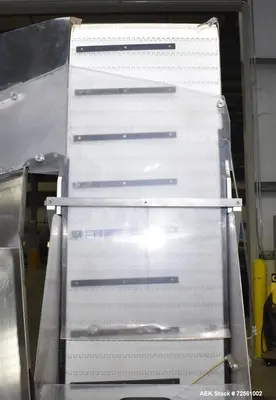

Cap Sorting: Oversized cap sorting elevator for flat caps up to 5" diameter

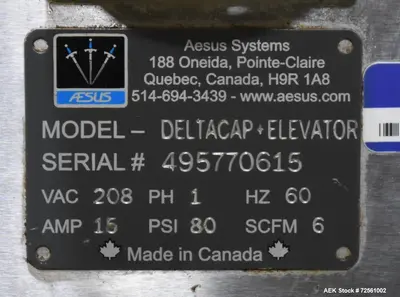

Power Requirements: 1/60/208V

Previous Application: Nutritional supplement packaging

Applications:

Pharmaceutical bottle capping
Nutritional supplement packaging
Food and beverage container sealing
Personal care and cosmetic product capping
Chemical and industrial product packaging

What Products Would This Be Used For?

Vitamin and supplement bottles
Pharmaceutical pill and liquid containers
Beverage and sauce bottles
Cosmetic and personal care product packaging
Chemical and industrial liquid bottles
