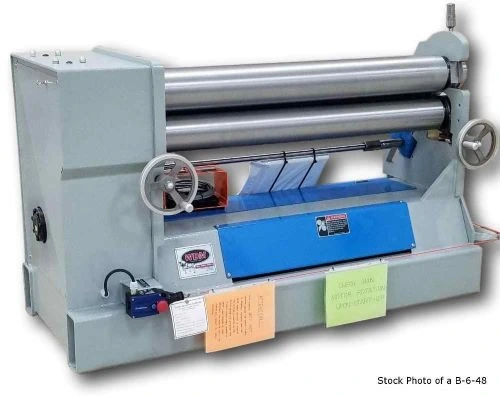

NEW WALDEMAR WDM 310-5-48

WALDEMAR (NEW) MODEL WDM 310-5-48 INITIAL PINCH
SHEET BENDING ROLL

5" NOMINAL ROLL DIAMETER
8 GA X 4' ROLLING CAPACITY
ELECTRONICS TO NFPA 79 SPECIFICATIONS
3 HP, 3 PHASE 230 TEFC MOTOR
1045 STEEL ROLLS

FEATURES
- 2-ROLL DRIVE
ELECTRIC HELICAL GEAR MOTOR
ELECTRIC HOLDING BRAKE
- FORWARD REVERSE FOOT PEDAL FOR ROLL ROTATION
- 0-20 FPM VARIABLE ROLLING SPEED
- 120 VOLT CONTROL CIRCUIT
- PINCH ROLL STARTING GROOVE
- OVERLOAD PROTECTED
- SEALED SPHERICAL ROLLER BEARINGS ON ALL
MAIN POINTS
- SWING-OUT TOP ROLL WITH LATCH HANDLE THAT CAN
BE UNLOCKED UNDER BENDING PRESSURE

OPTIONS INCLUDED
- HARDENED AND POLISHED ROLLS
55-60 RC FLAME HARDENED 1045 MATERIAL
- CONE ATTACHMENT
- CIRCULAR GROOVES
- ELECTRIC DRO
- POWER BENDING ADJUSTMENT
Power: 230 (3-Phase)
