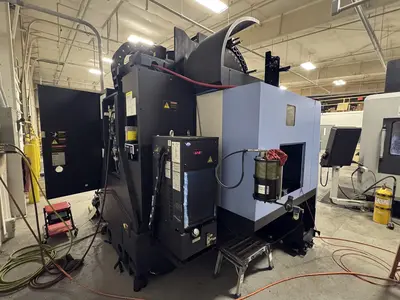

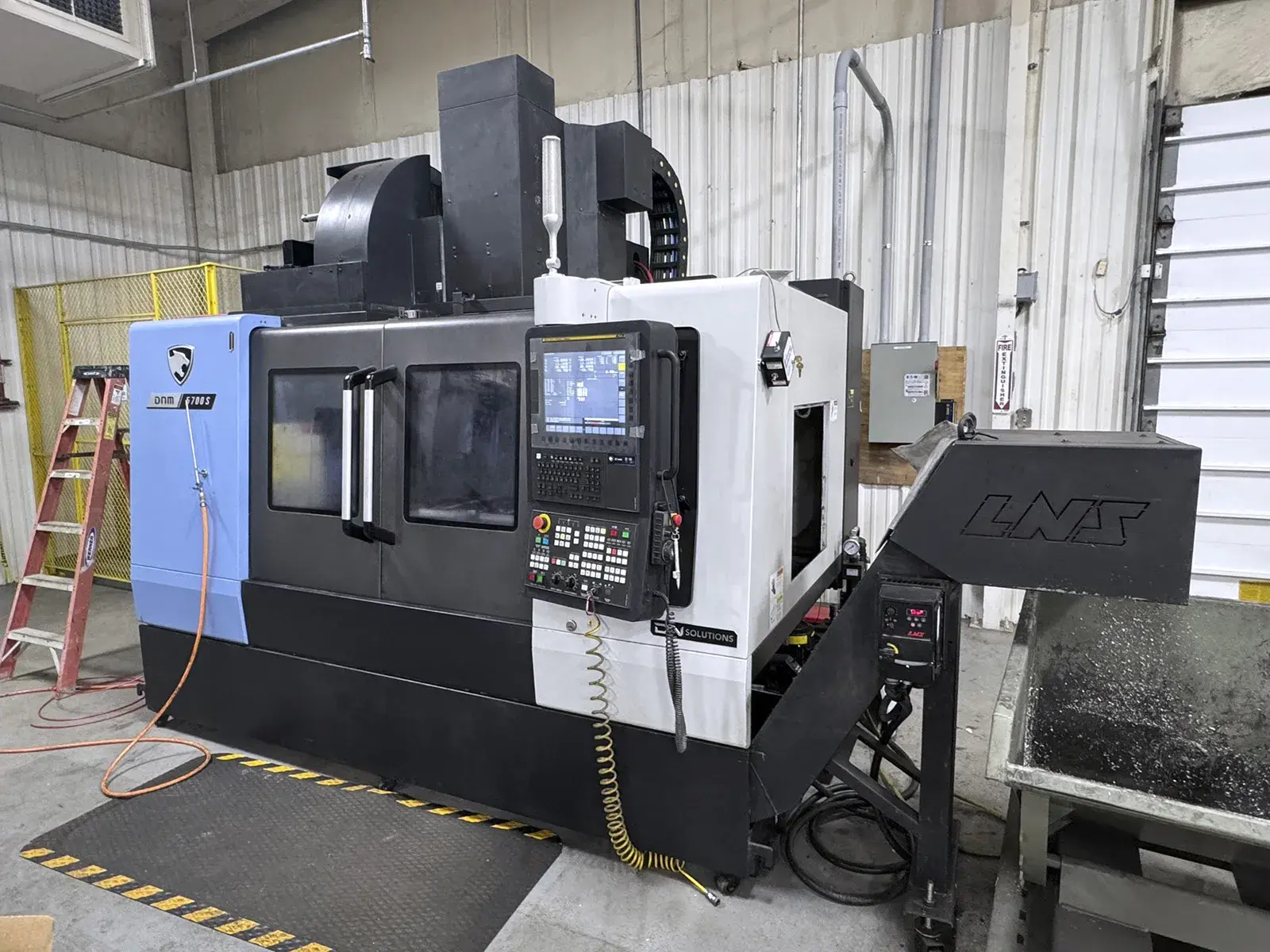

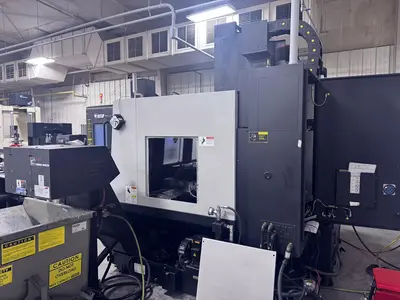

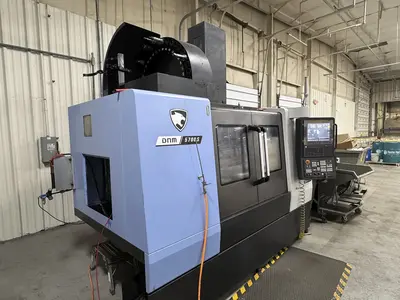

USED 2022 Doosan DNM 5700S

Boost your production with this Doosan DNM 5700S Vertical Machining Center (2022) featuring Fanuc i-Series Plus control. Designed for high-speed, high-precision milling, it excels in aerospace, automotive, die & mold, and medical manufacturing. Ideal for complex parts, superior surface finishes, and consistent accuracy in demanding, high-volume machining environments.

Table Size: 51.2" x 22.4:
Weight On Table: 2,204 lb
Spindle Nose to Table Top: 5.9" ~ 26.0"
X - Axis Travel: 41.3"
Y - Axis Travel: 22.4"
Z - Axis Travel: 20.1"
Rapid Traverse Rate - X: 1,653 in/min.
Rapid Traverse Rate - Y: 1,653 in/min.
Rapid Traverse Rate - Z: 1,417 in/min.
Spindle Speed: 15,000 RPM
Spindle Taper: BIG PLUS CT 40
Main Motor: 25 HP

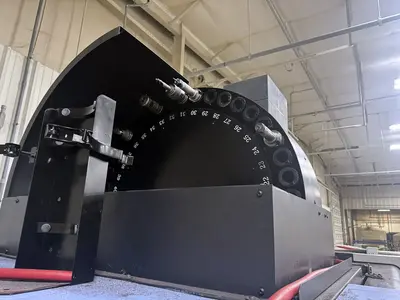

AUTOMATIC TOOL CHANGER: 40
Tool Diameter: 4.9
Tool Length: 11.8"
Tool Weight: 17.6 lb
Machine Weight: 14,329 lb

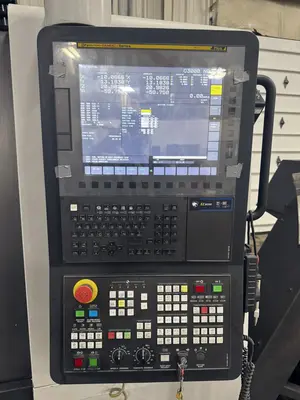

Fanuc i-Series Plus Control
Samchully S170F2 4th axis with Matrin Trunnion Table
Upgraded 15000 Spindle RPM 40 Tool Capacity 4th Axis Ready
Chip Conveyor
Spindle Chiller
Renishaw Probe
Coolant Thru Spindle 213 PSI
