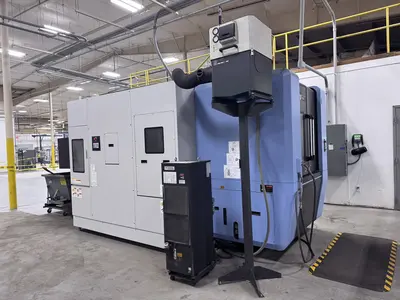

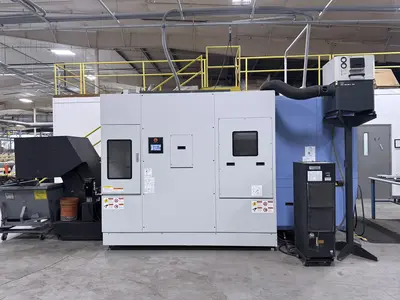

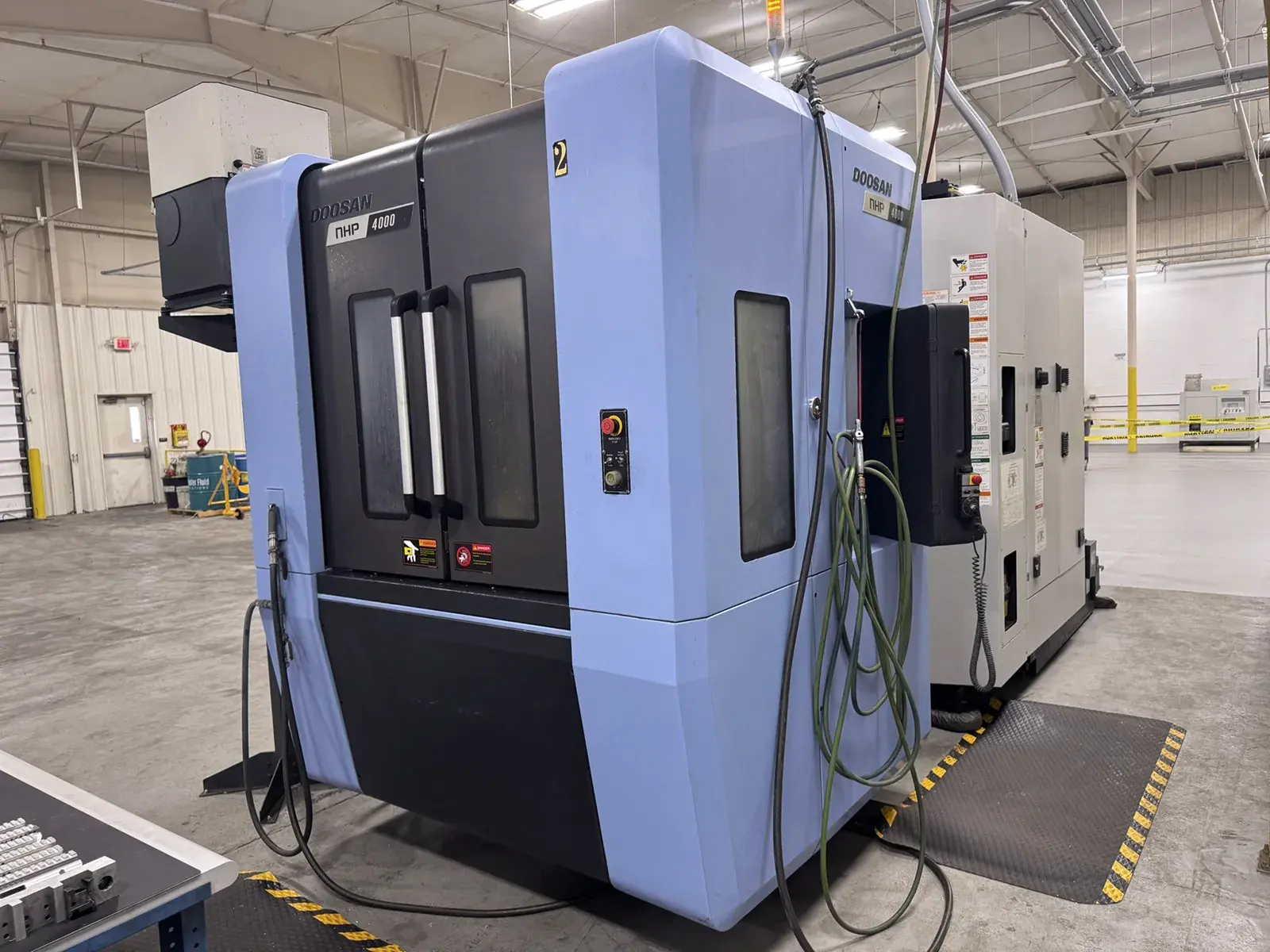

Boost your production with this Doosan NHP 4000 Horizontal Machining Center (2021) featuring Fanuc 31i Series B5 control. Engineered for precision and reliability, it excels in high-volume machining of small-to-medium parts. Ideal for aerospace, automotive, and general engineering, delivering fast cycle times, tight tolerances, and consistent performance.
| X | 22" | 558.8 mm |
| Y | 25.2" | 640.08 mm |
| Z | 26" | 660.4 mm |
| Power | 40.2 hp | 30 kW |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 60 | 60 |
| Taper | CAT 40 | CAT 40 |
| Pallet-W | 15.75" | 400.05 mm |
| Pallet-L | 15.75" | 400.05 mm |
Pallet Size: (15.7" × 15.7")
Max Pallet Load: (880 lb)
Pallet Indexing: 0.001°
No of Pallets: 2 pallets
X-axis: (22.0")
Y-Axis: (25.2")
Z-axis: (25.2")
B-Axis: 360,000 deg
Spindle Taper: CAT-40
Spindle Speed: 15,000 RPM
Spindle Motor: (25 HP)

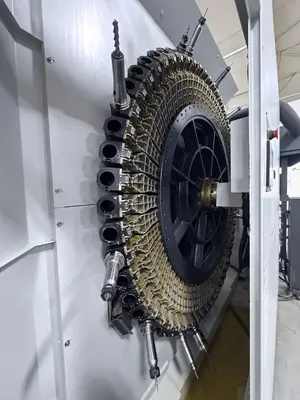

TOOL CAPACITY: 60 tools
Rapid Traverse X / Y / Z: (2,362 ipm)
Power: AC 220 V, 3-phase
Rated Capacity: 83.87 kVA
Full load current: 220 A
Machine Weight: Approx. (21,385 lb)

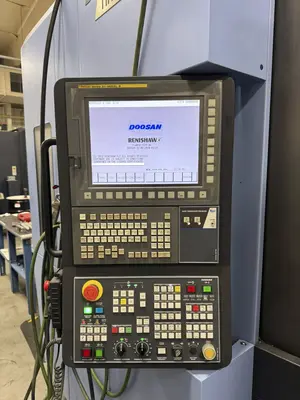

Fanuc Series 31i-MODEL B
1000 PSI Coolant Thru Spindle (Chip Blaster Unit)
15000 Spindle RPM
Renishaw Tool Probe
Tool Presetter
60 Tool Capacity
Dual Pallet
Spindle Chiller

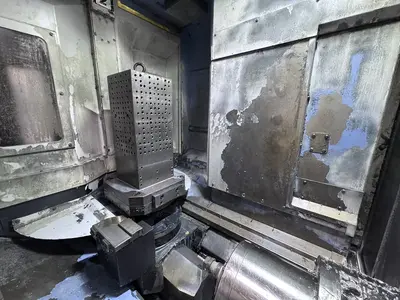

Tombstones
Mist Collector
