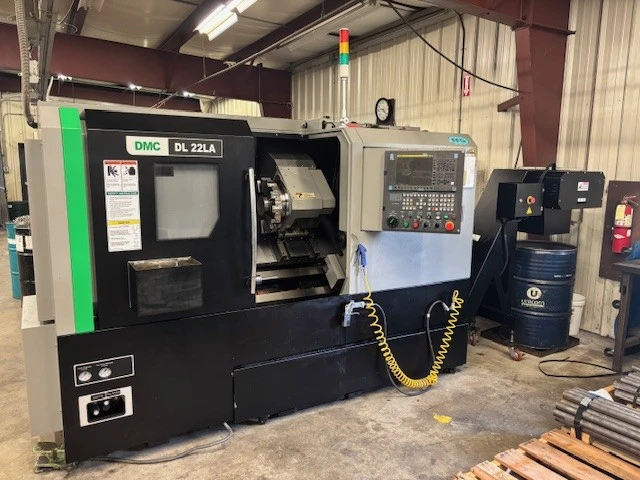

DMC DL22LA CNC Lathe, New 2022

21.65" Swing, 21.26" Turning Length, 13.78"
2.56" Bar Capacity. 4,000 RPM, 20 Hp, 8" 3-Jaw Power
12-Station Servo Turret, Programmable Tail Stock &
Box Ways, Tool Presetter, Chip Conveyor, Parts Catcher, New
VIDEO
AVAILABLE
.

Swing over bed………………...……….. 21.65"
Swing over cross slide………..……….. 14.17"
Max. turning length…………..……...... 21.26"
Max. turning diameter………..……....... 13.78"
Bar capacity……...…………..………...... 2.56"
Spindle nose………………..………...…. A2-6
Max. Spindle speed…………..….... 4,000 rpm
X-axis travel…………………..…….…… 8.27"
Z-axis travel…………………..….…….. 22.83"
Rapid traverse (X & Z)………..…...... 945 ipm
Tailstock quill taper………..……...….. #4 MT
Spindle motor (15min/Cont)......……. 20/15 Hp
Electrics……………...…..…. 3/60/220/30kVA
Number of controlled axes……..……….…. 2
Dimensions (approx.).. 117"L x 65"D x
75"H
Weight (approx.)………………..…… 9,700 lb.

Fanuc 0i-TF PLUS CNC control w/ Manual Guide i
8" 3-Jaw power chuck
12-Station Servo turret
Box ways
Programmable tailstock
Programmable quill
Tool presetter
Bar feed interface
Coolant system
Chip conveyor
Parts catcher
