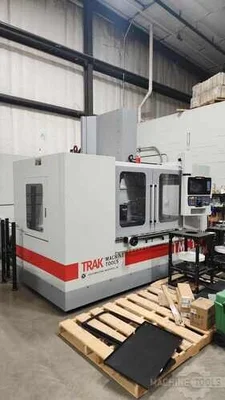

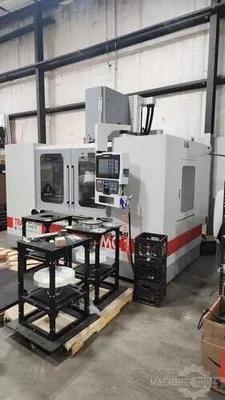

50” X 27” X 25” Vertical Machining Center with ProtoTrak RMX CNC Control, Chip Auger and 16 Tool Capacity ATC.
| X | 50" | 1,270 mm |
| Y | 27" | 685.8 mm |
| Z | 25" | 635 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 8,000 RPM | 8,000 RPM |
| # ATC | 16 | 16 |
| Taper | 40 | 40 |
| Table-W | 23.62" | 599.95 mm |
| Table-L | 51.18" | 1,300 mm |
| # Axis | 3 | 3 |

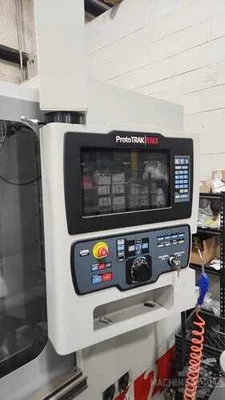

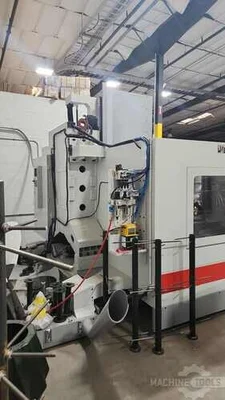

50” X 27” X 25” Vertical Machining Center with ProtoTrak RMX CNC Control, Chip Auger and 16 Tool Capacity ATC.GENERAL SPECIFICATIONS Table Size: 23.62” X 51.18”T - Slots: 5 X 0.709” X 4,921”X / Y / Z Travel: 50” X 27” X 25”Spindle Taper: 40 TaperSpindle Speed Range: 50 - 8,000 RPMSpindle Nose Diameter: 3-¾”Tool Clamping Force: 2,200 LbsTool Holder Type: CAT40ATC Tool Capacity: 16Max Tool Weight (Including Holder): 15 LbsMax Weight of Workpiece: 2,200 LbsHeight of Table From Bottom of Bed: 38.37”Min. Spindle Nose to Table Distance: 2.25”Max Spindle Nose to Table Distance: 28.75”Distance of Tool Carousel to Table: 21.54”Spindle Center to Spindle Head Casting Face: 27.56”Approx. Machine Dimensions: 134” X 145” X 11”INCLUDES: ProtoTrak RMX CNC Control, Chip Auger and 16 Tool Capacity ATC.
