Edge Rebel 80 Barfeed – 2022

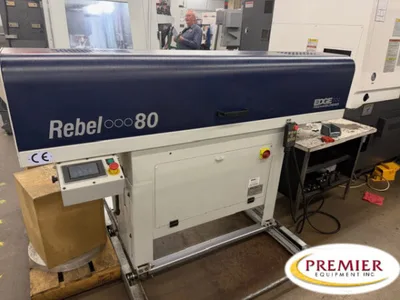

Edge Technologies  Rebel 80 Barfeed

Bar diameter capacity 8mm to 80mm (.315” to 3.150”)
Maximum bar length 60” (NOT TO EXCEED SPINDLE LENGTH)
Magazine rack capacity 30” (60 ½” bars, 30 1.0” bars, 15 2.0” bars)
Bar weight 175 lbs. per bar not to exceed 1500 lbs. total
Power consumption 1 kW
Operating voltage 200-230VAC/60Hz – 3 phase
Control voltage 24VDC
Centerline height 950-1350mm (37.4” to 53.15”)
Machine footprint 84” X 48”
Machine weight 1100 lbs.
