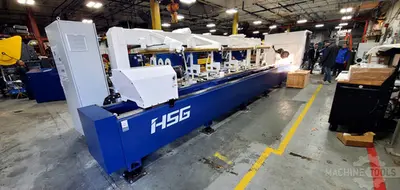

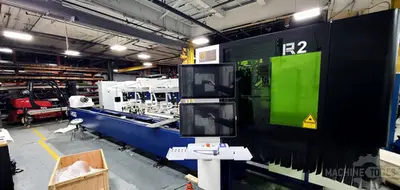

USED HSG R2

Brand – HSG Model – R2 Type – Tube, Pipe & Bar Cut-Offs New – Build To Order

Max Diameter: 9.4″
Control: CNC (HSG ALPHA)
Tube Processing Range: Round Tube: Ø8 – Ø240 mm Square Tube: 8 x 8 – 240 x 240 mm Rectangular Tube: 8 mm ≤ Edge Length ≤ 240 mm Angle Steel: 20 x 20 – 200 x 200 mm Channel: 50 x 37 – 200 x 75 mm Incoming Material Length: 1000 – 6500 mm Positioning Accuracy (X/Y): ±0.05 mm/m Repeat Positioning Accuracy (X/Y): ±0.03 mm Chuck Speed: 100 RPM Max Linkage Speed: 120 m/min Max Acceleration: 1.0 G Max Single Tube Weight: Approx. 300 kg (46 kg/m) Tailing Length: ≥85 mm (Single Chuck Mode; Suggested Tube Length ≤500 mm, ≤5 kg) ≥215 mm (Double Chuck Mode)

Raycus Fiber Laser Source (3 kW / 6 kW) HSG Klinge Cutting Head HSG X10000 Control System HSG Machine Bed
