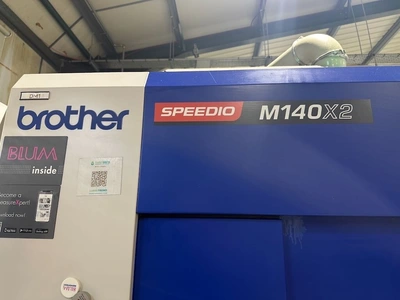

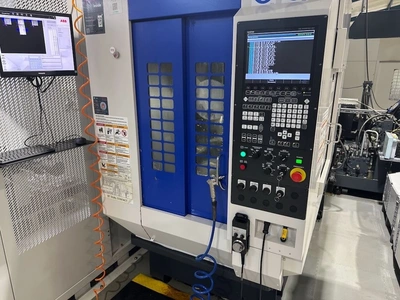

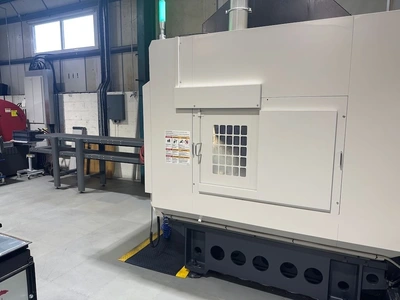

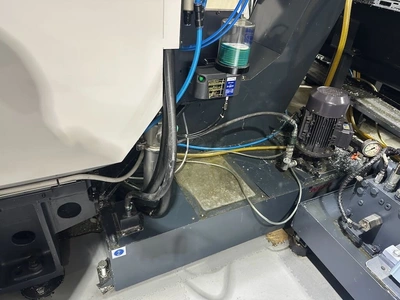

USED 2019 BROTHER SPEEDIO M140X2

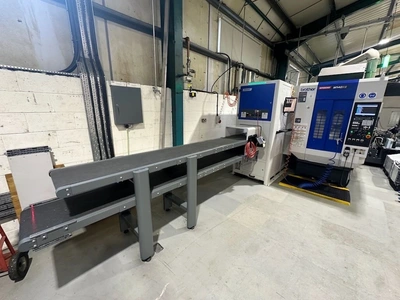

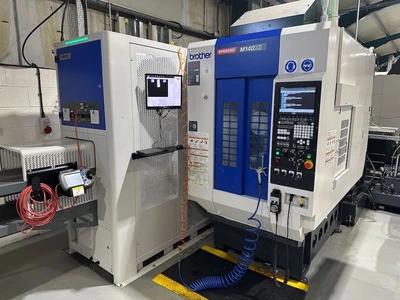

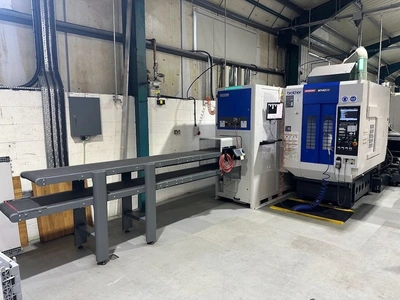

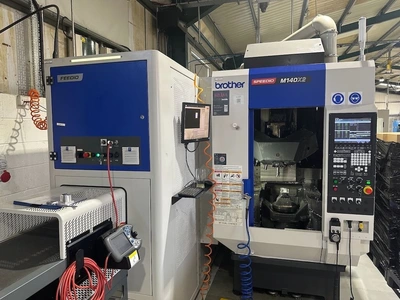

The Brother Speedio M140X2 is a compact 5-axis CNC machining centre designed for high-speed production of small precision components. Featuring a BBT30 high-speed spindle, 22-tool automatic toolchanger and integrated C-axis turning capability, the machine allows complex parts to be machined in a single setup. With rapid traverse rates of 50 m/min and extremely fast tool-change times, the M140X2 is ideal for subcontract engineering and high-precision production work. The ABB FlexLoader SC3000 (Feedio SC3000) is a compact robot automation system designed for CNC machine tending. Supplied as a complete pre-engineered cell, the system allows automatic loading and unloading of one or two machines and is ideal for subcontract engineering and production environments looking to increase productivity and run unattended machining.

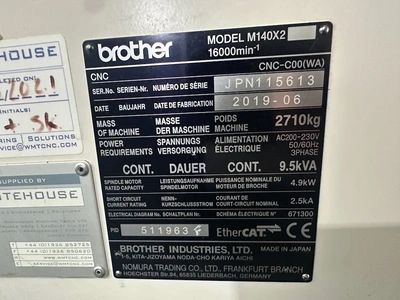

Model: M140X2 (Speedio Series)
Type: 4+1-Axis high-speed CNC machining centre / mill-turn type machining centre

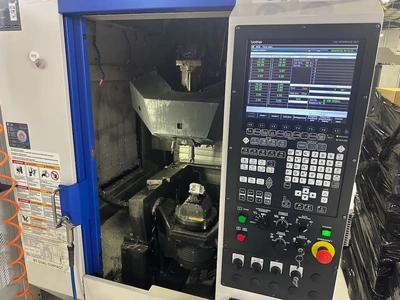

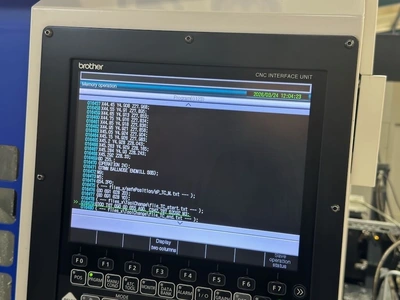

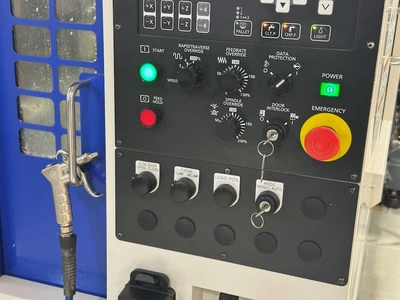

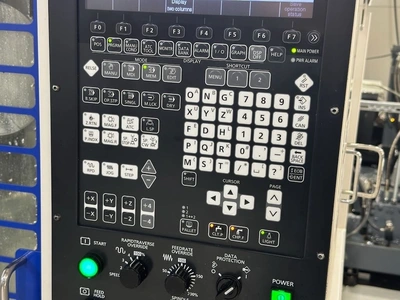

Control: Brother CNC-C00 control system

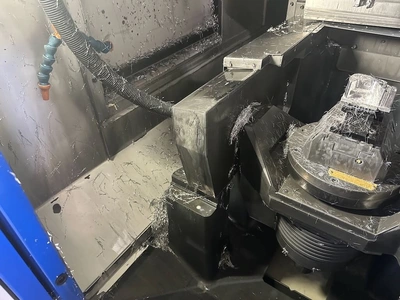

Travels & 5-axis capability
X-axis travel: 200 mm
Y-axis travel: 440 mm
Z-axis travel: 305 mm

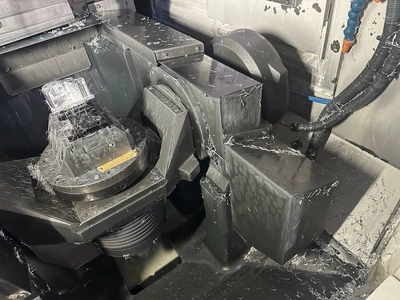

A-axis (tilt): –30° to +120°
C-axis: 360° rotary table
5-axis configuration (X, Y, Z, A and C axes)

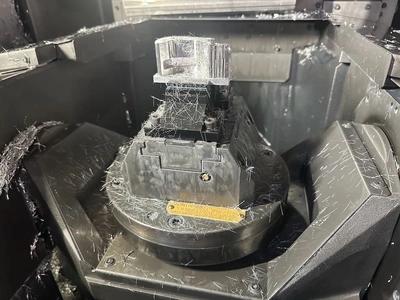

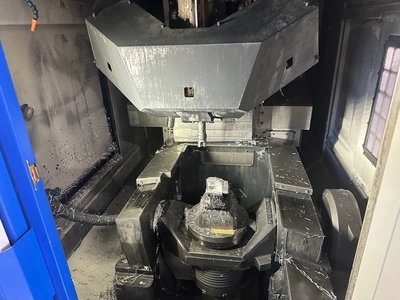

Table & capacity
Table diameter: 140 mm
Maximum table load: approx. 40 kg (table side)
Compact table designed for small precision components

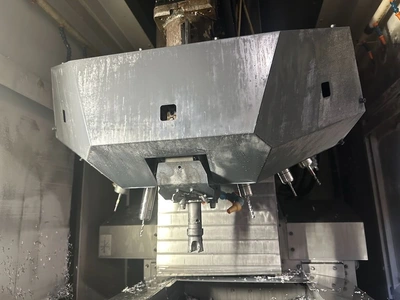

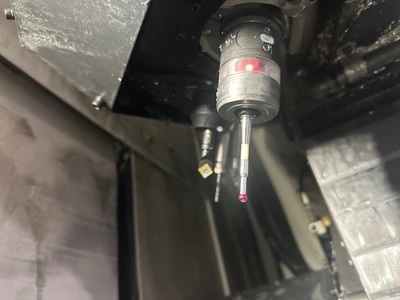

Spindle specification
Optional high-speed spindle: 16,000 rpm
Spindle taper: BBT30 (Face and Taper)
Spindle motor output: approx. 10.1 kW (10-minute rating)
35 bar Through Spindle Coolant

Toolchanger & speeds
Tool magazine capacity: 22 tools
Tool-to-tool time: approx. 0.9 sec
Chip-to-chip time: approx. 1.4 sec
Rapid traverse (X/Y/Z): 50 m/min
Turning / multi-task capability
Integrated C-axis turning spindle
Maximum turning spindle speed: 2,000 rpm
Designed for one-setup machining of complex parts

General specification
5-axis high-speed production machining centre
Compact footprint: approx. 1,280 x 3,829 mm
Approximate machine weight: 2,700 kg

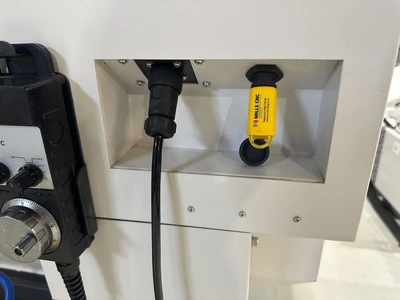

Ethernet / USB / modern CNC interface

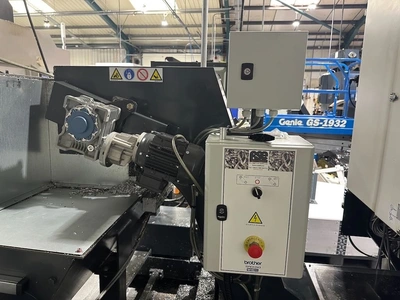

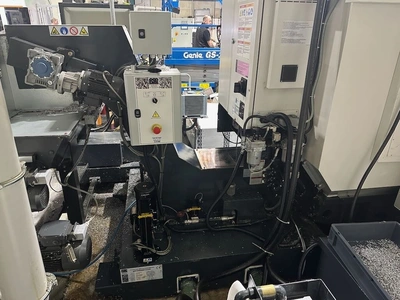

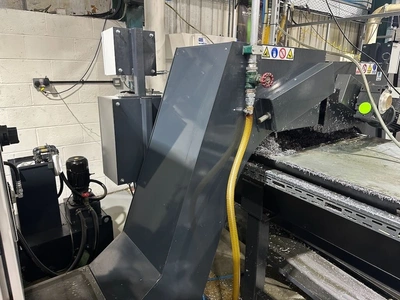

Rear exit swarf conveyor

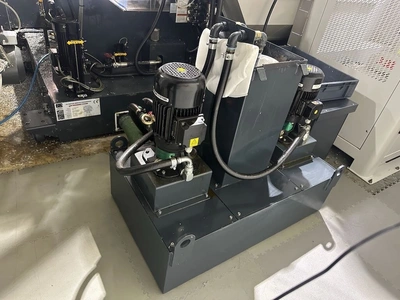

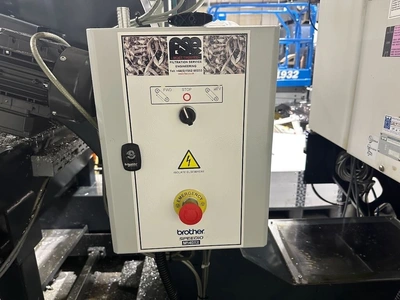

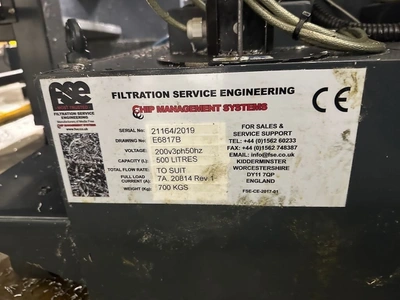

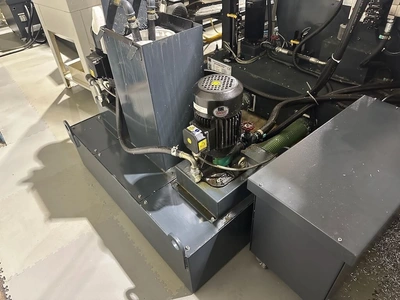

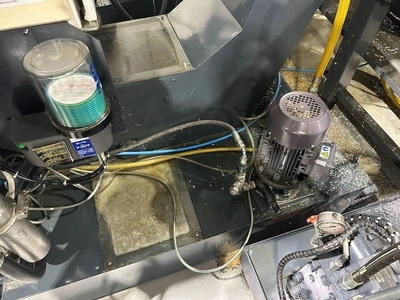

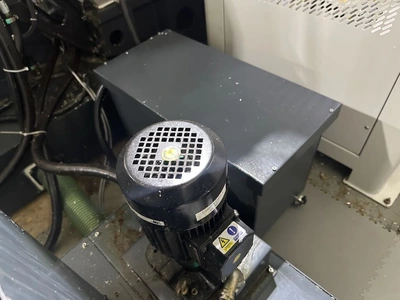

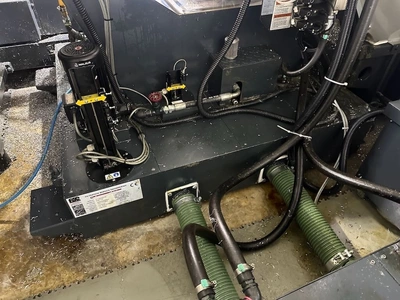

NOP pumps for washdown and flood coolant, plus bag filtration

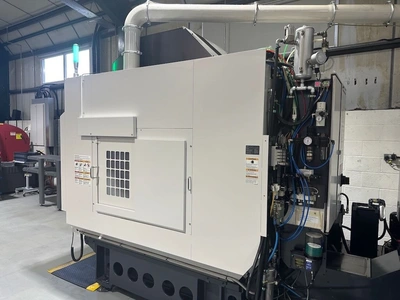

Air bench mist extraction
Full service history

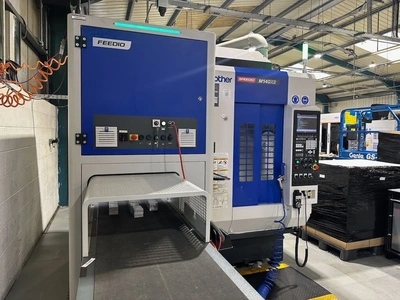

ABB Feedio SC3000 Robot Automation System
Make: ABB Robotics

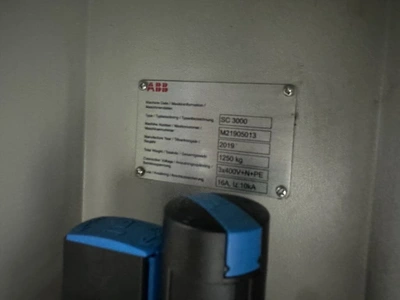

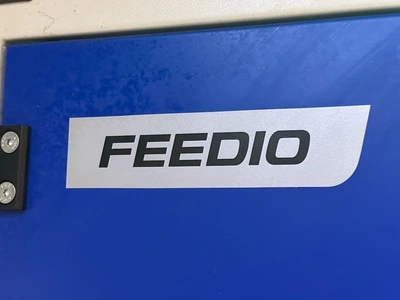

Model: FlexLoader SC 3000 (often listed as Feedio SC3000)
Type: CNC machine-tending robot automation system
Application: Automatic loading and unloading of CNC lathes and machining centres
General description

The ABB FlexLoader SC3000 is a compact pre-engineered robot cell designed to automate machine tool loading and unloading. The system is supplied as a complete ready-to-install solution including robot, safety enclosure, part handling system and control software. It is suitable for both single-machine and twin-machine automation and is widely used in subcontract engineering and production machining environments.

Main features
Fully integrated robot loading system for CNC machines
Can operate one or two machine tools
Modular design – expandable as production increases
Compact footprint automation cell
Plug-and-play installation with pre-programmed robot code
Designed for both small-batch and production work

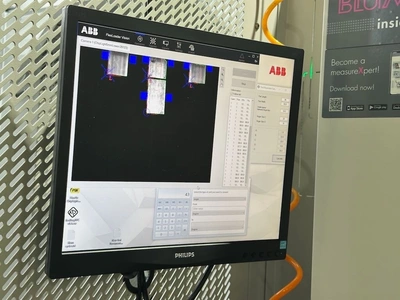

Optional integrated vision system for part recognition

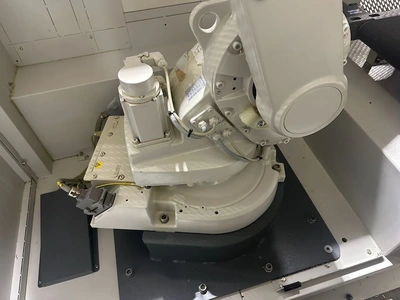

Robot & handling system

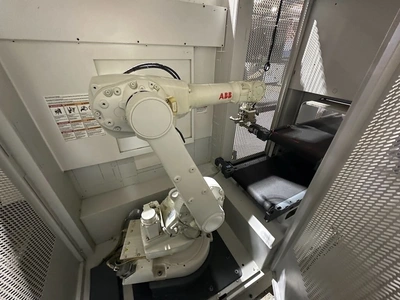

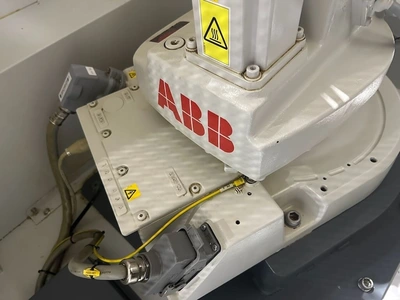

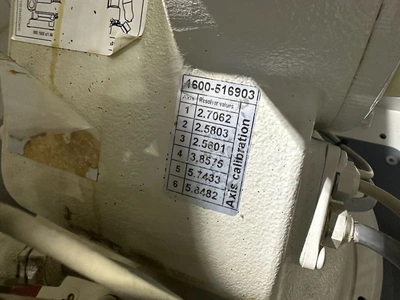

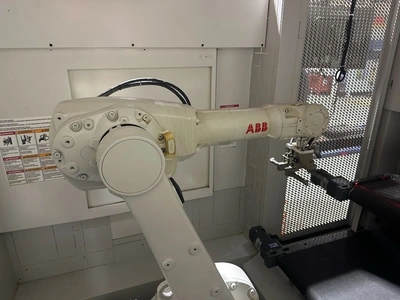

6-axis ABB industrial robot (commonly IRB 1600 or IRB 2600 depending on specification)
Automatic part loading and unloading

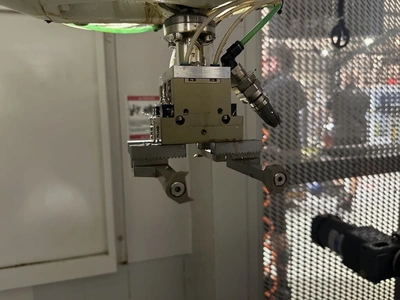

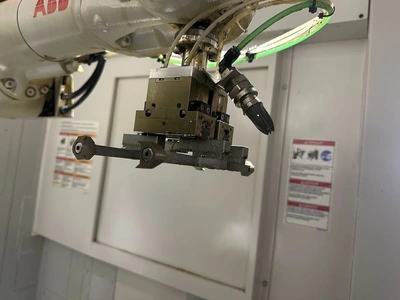

Integrated gripper system

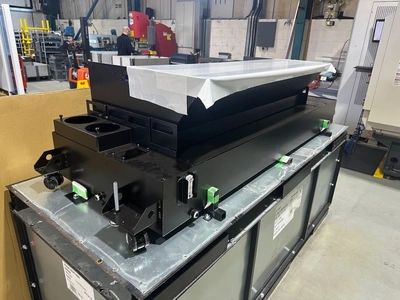

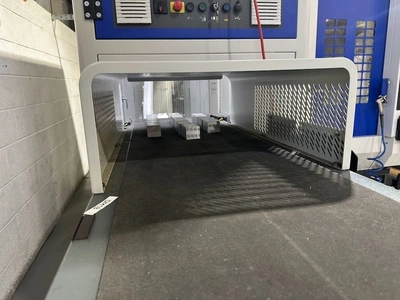

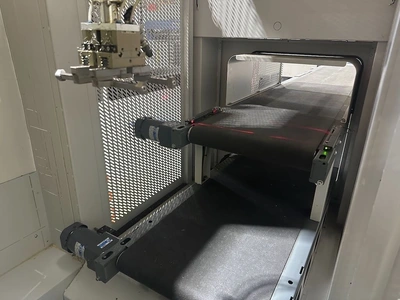

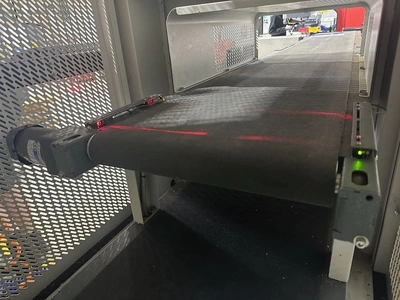

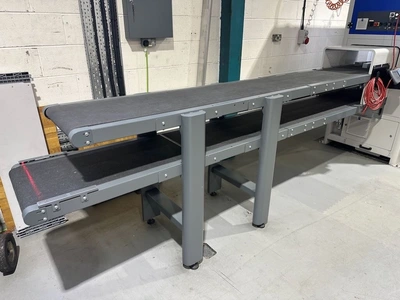

Infeed and outfeed conveyor system
Part handling system suitable for multiple component sizes

Capacity & flexibility
Designed for small to medium size workpieces
Can handle multiple part types with quick changeover
Suitable for turning centres, machining centres, grinders and similar CNC machines
Can operate unattended production (up to approx. 20 hours depending on configuration)

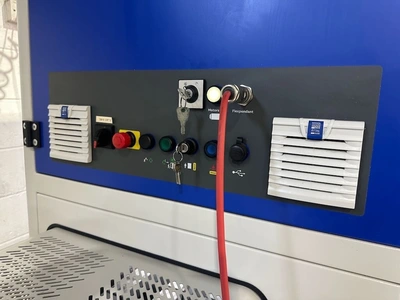

Control & system

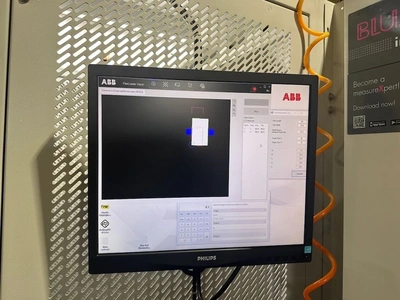

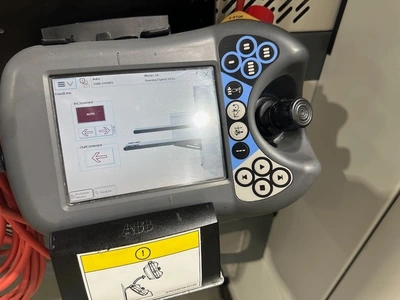

Integrated ABB robot controller

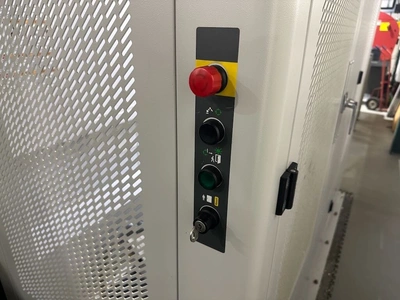

Pre-engineered safety enclosure and guarding
Standardised automation cell supplied ready for installation
Vision system and part tracking available (model dependent)

Typical applications
Ideal for:
CNC lathe automation
CNC machining centre loading
Small to medium batch production
Subcontract precision engineering
Lights-out machining environments
