USED 2016 BROTHER R650X1
Overview
Specifications
| X | 25.6" | 650.24 mm |
|---|---|---|
| Y | 15.7" | 398.78 mm |
| Z | 12" | 304.8 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 16,000 RPM | 16,000 RPM |
| # ATC | 22 | 22 |
| Taper | BT30 | BT30 |
| Table-W | 23.6" | 599.44 mm |
| Table-L | 15.7" | 398.78 mm |
| # Axis | 3 | 3 |
| Control | CNC (Brother CNC-C00) | CNC (Brother CNC-C00) |
| Dimensions | 69.7 x 63.8 x 89.8 in | 69.7 x 63.8 x 89.8 in |
| Weight | 2270kg | 2270kg |
Equipped With

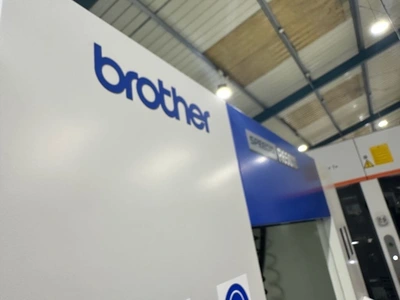

Brother R650X1 Speedio High-Speed CNC Machining Centre
Type: High-speed vertical machining centre with twin-pallet (QT table) system

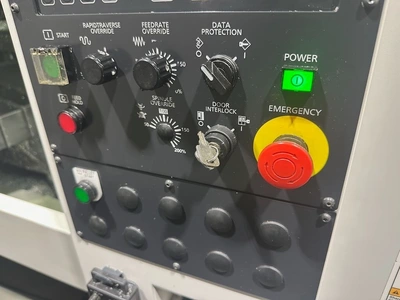

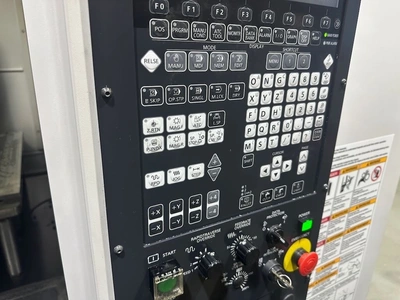

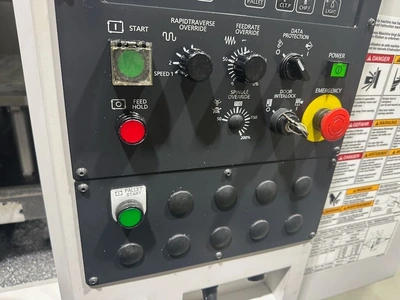

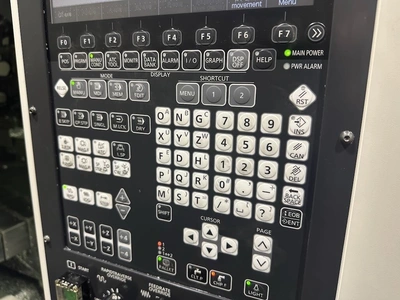

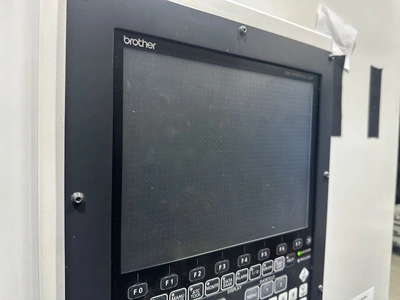

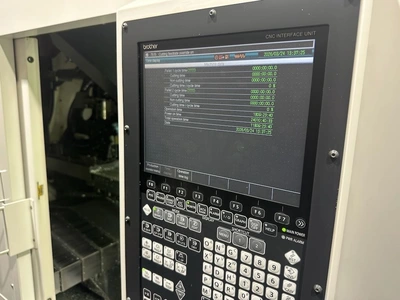

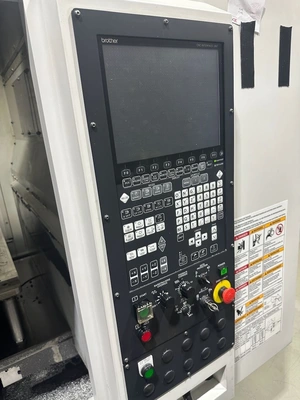

Control: Brother CNC-C00 control system
Capacity & travels
X-axis travel: 650 mm
Y-axis travel: 400 mm
Z-axis travel: 305 mm
Distance table to spindle nose: approx. 250 – 555 mm
Work area (per pallet): 600 x 400 mm

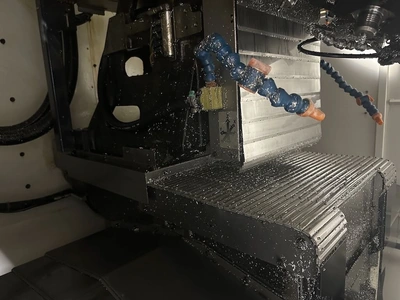

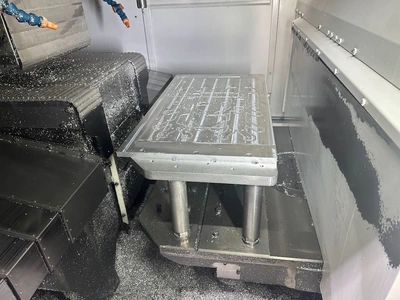

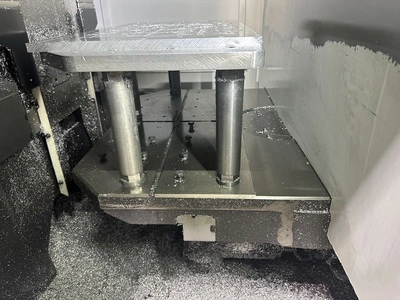

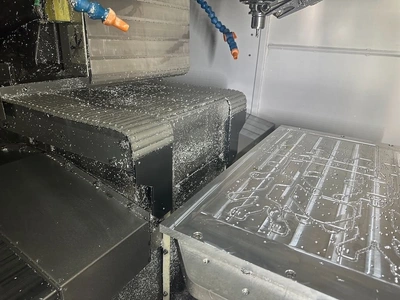

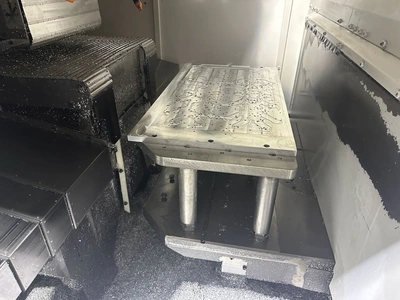

Twin-pallet system
2-face pallet (QT table) system
Pallet change time: approx. 3.4 seconds
Maximum load capacity: 200 kg per pallet (up to 300 kg optional)
Maximum turning diameter: approx. 1,250 mm
Spindle specification
Optional spindle: 16,000 rpm high-speed version
15 bar Through Spindle Coolant
BT30

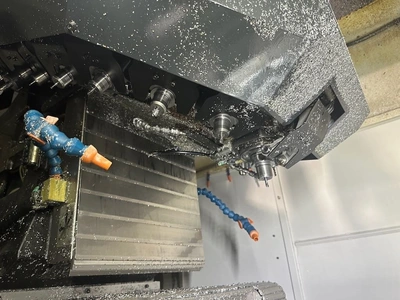

Toolchanger & speeds
Tool magazine capacity: 22 tools
Tool-to-tool time: approx. 0.8 – 0.9 seconds
Chip-to-chip time: approx. 1.6 – 1.7 seconds
Rapid traverse (X/Y/Z): 50 m/min
General specification
High-speed production machining centre
Compact footprint: approx. 1,837 x 3,248 mm
Ethernet / USB / RS232 connectivity

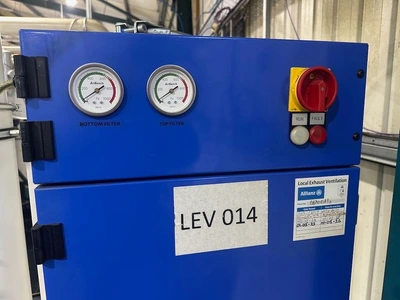

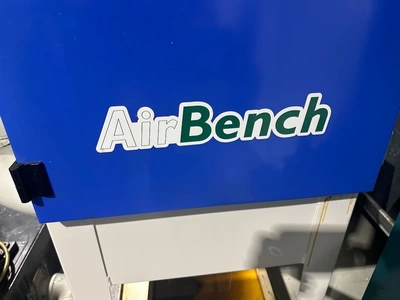

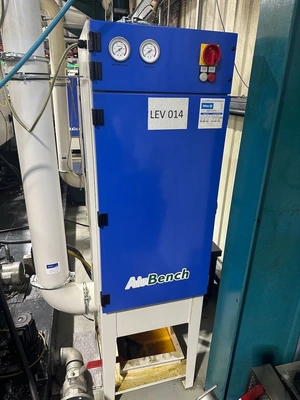

AIR BENCH Filtermist Unit

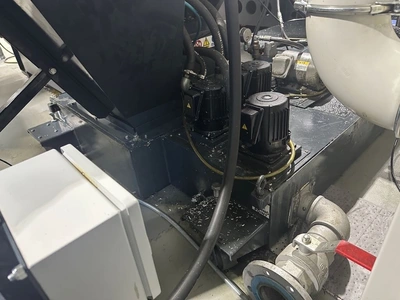

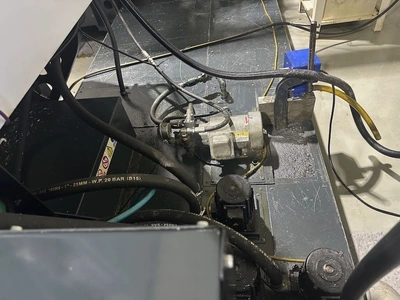

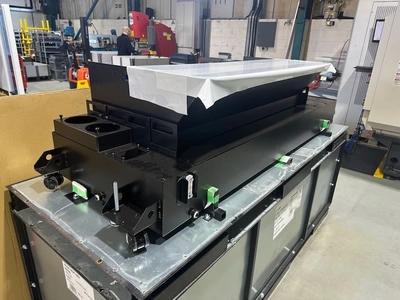

Includes Brand New Coolant Tank, as the current tank is part of a Cell Coolant system.
Full service history
