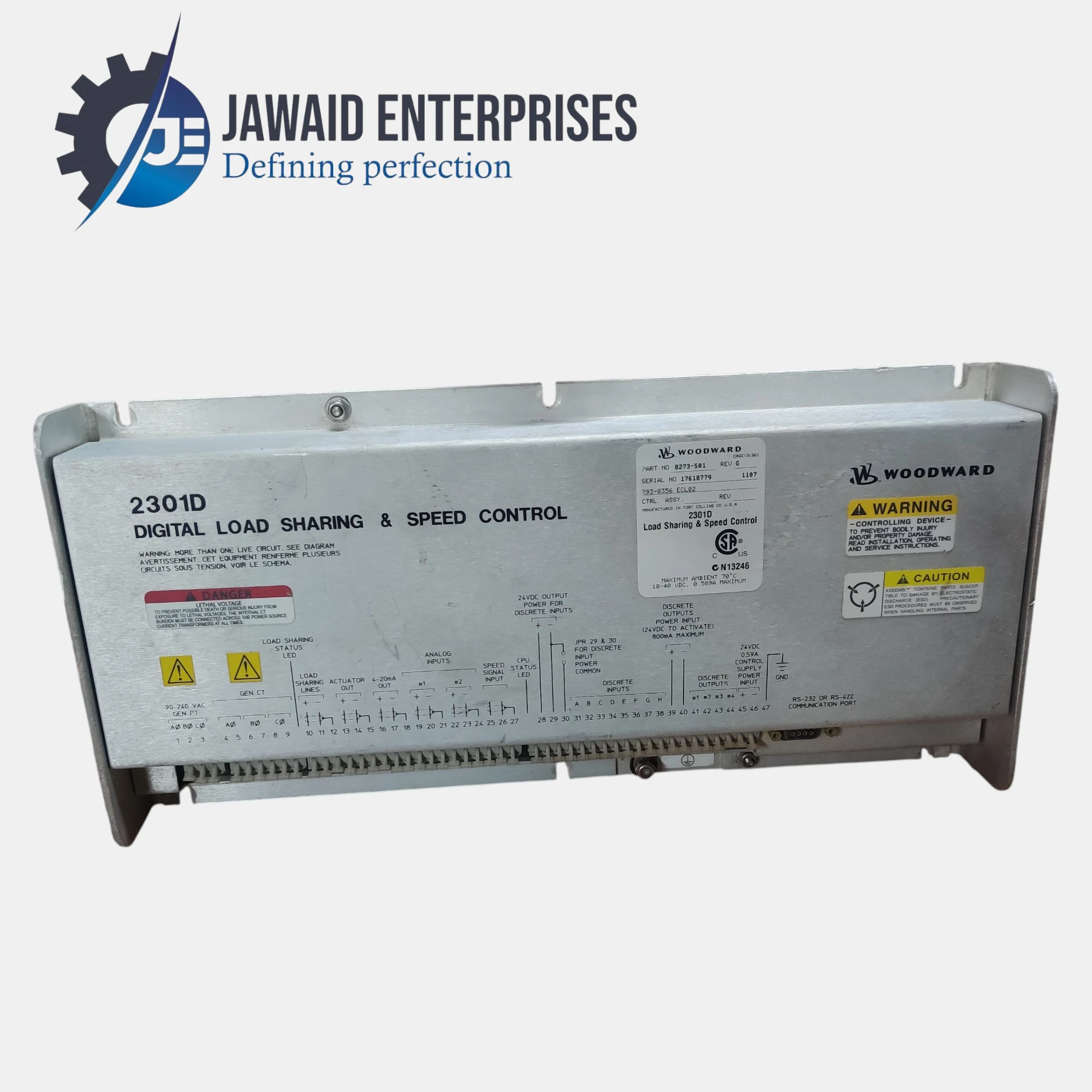

Woodward Part 8273-501 2301D series provide load sharing and speed control of generators
Overview
Description
Description
About the 8273-501
The 8273-501 is a 2301D Digital Load-sharing and Speed Control unit from Woodward Inc.
It’s designed for mounting in ordinary, non-hazardous locations.
This model utilizes a microprocessor for its core functionality.
Hardware Features
Standard Components: Load sensor, actuator driver, one MPU Speed Sensor.
Configurable I/O:
Two analog inputs
One analog output
Eight discrete switch inputs (three configurable)
Four configurable discrete relay driver outputs
Performance & Communication
Speed Range: Supports engine and generator speeds from 90 to 3600 RPM.
Magnetic Pickup Frequency: 100 to 20,000 Hz at rated speed.
Communication Ports: RS-232, RS-422, a 9-pin connector.
Baud Rate: 1200 to 38,400 baud, full-duplex.
Features a unique algorithm that enhances transient response through Load Pulse and Load Rejection logic.
Power Input: Requires 18 to 40 VDC.
This unit is covered by our automatic protective warranty.
