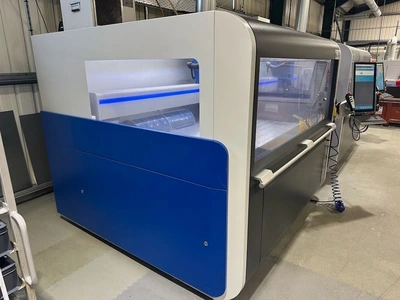

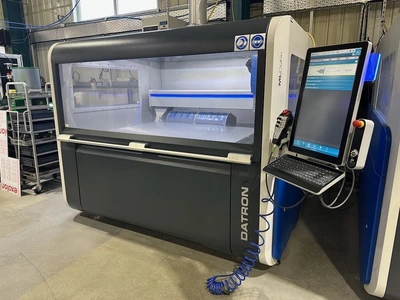

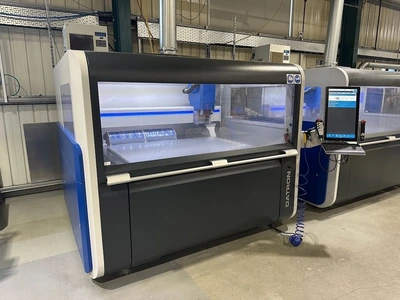

The DATRON MLCube B is a high-speed CNC machining centre designed for large-format precision machining within a compact footprint. With a 1,520 mm X-axis travel and high-frequency spindle speeds up to 40,000 rpm, the machine is ideal for aluminium plate work, nested components and precision subcontract machining. The rigid polymer-concrete table, DATRON next touchscreen control and fast tool-change system make it suitable for both production and prototype environments
| X | 59.843" | 1,520 mm |
| Y | 45.276" | 1,150 mm |
| Z | 9.6457" | 245 mm |
| Power | 4 hp | 3 kW |
| RPM | 40,000 RPM | 40,000 RPM |
| # ATC | 24 | 24 |
| Taper | Direct clamp or HSK-E25 | Direct clamp or HSK-E25 |
| Table-W | 1,500 mm | 59.055" |
| Table-L | 1,000 mm | 39.37" |
| # Axis | 3 | 3 |
| Control | CNC | CNC |
| Dimensions | 94.88189 x 89.763779 x 76.77165 | 94.88189 x 89.763779 x 76.77165 |
| Weight | 2500kg | 2500kg |

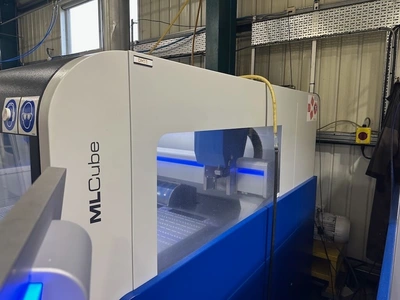

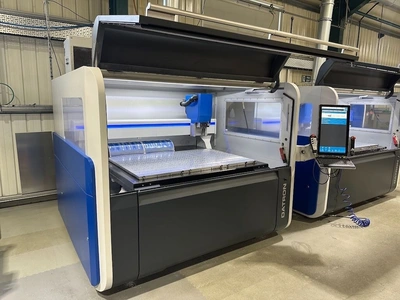

2020 DATRON MLCube B High-Speed CNC Machining Centre
Make: DATRON
Model: MLCube B
Year: 2020
Type: High-speed 3-axis CNC vertical machining centre / gantry-type milling machine
Control: DATRON next CNC control
Capacity & travels
X-axis travel: 1,520 mm
Y-axis travel: 1,150 mm
Z-axis travel: 245 mm
Working area: approx. 1,500 x 1,000 x 200 mm
Gantry clearance: approx. 200 mm
Spindle specification

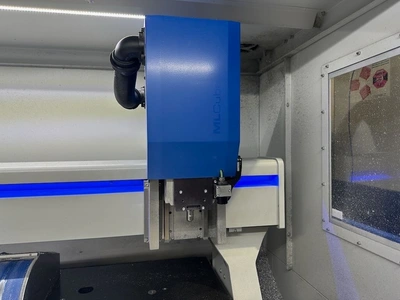

High-frequency precision spindle
Maximum spindle speed: up to 40,000 rpm
Spindle power range: approx. 0.6 – 3.0 kW (model dependent)
Tool interface: Direct clamp or HSK-E25
Toolchanger & control
Automatic tool changer: up to 24 tools

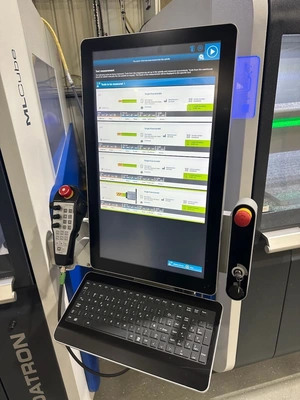

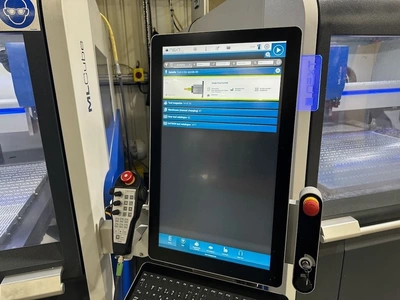

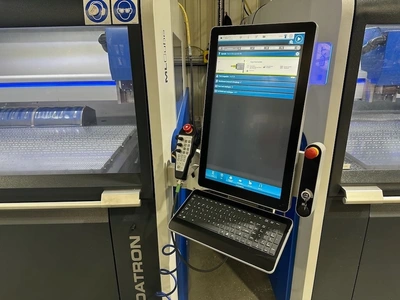

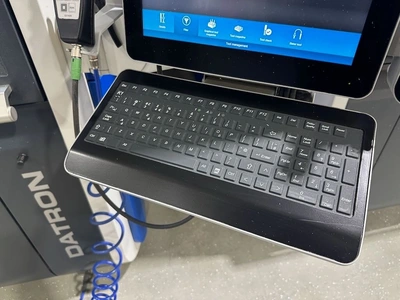

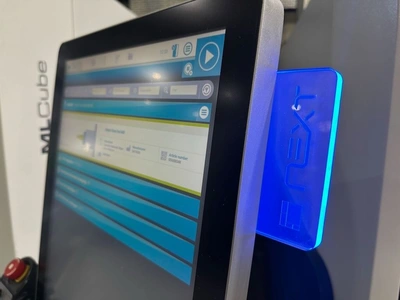

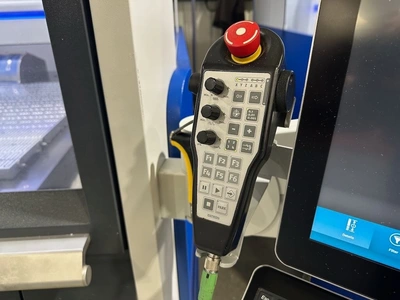

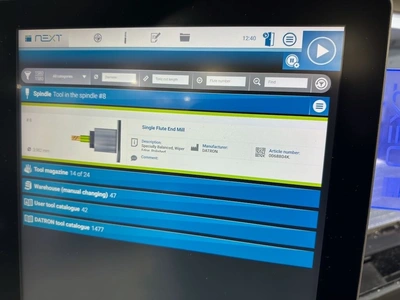

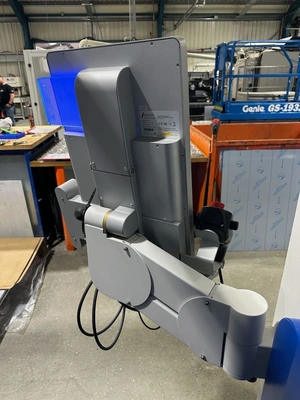

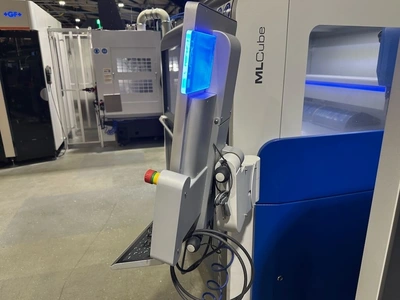

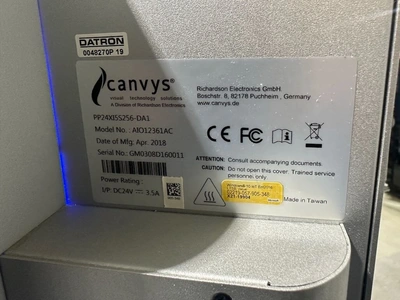

DATRON next touchscreen CNC control
Integrated tool length measuring system
Z-height probing/part referencing
Table & construction

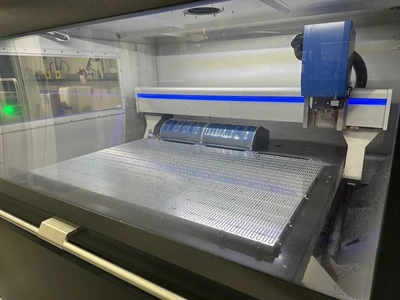

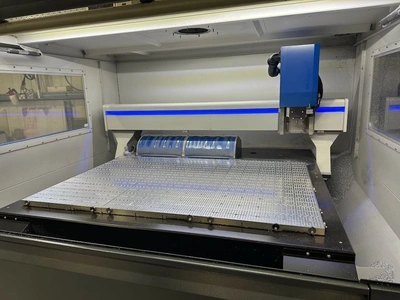

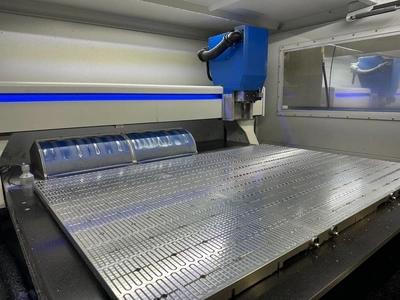

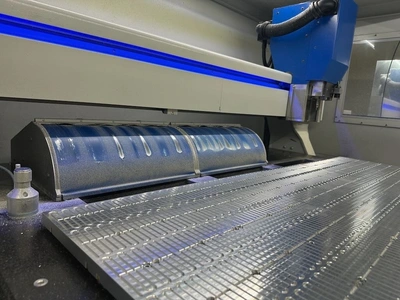

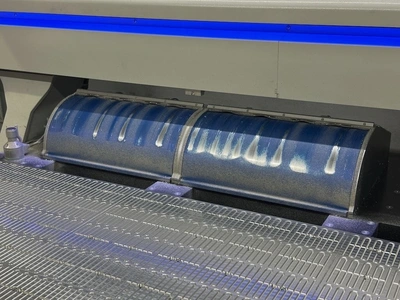

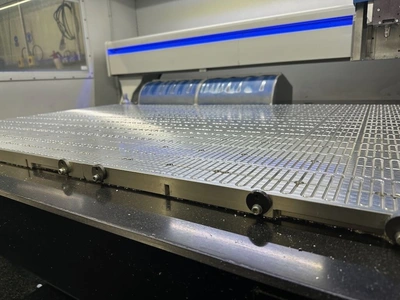

Polymer-concrete machine table for rigidity and accuracy

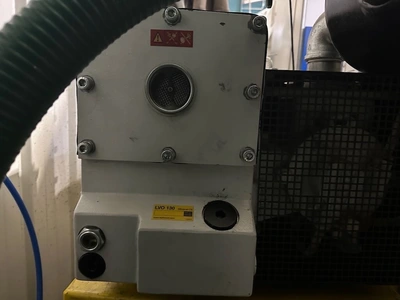

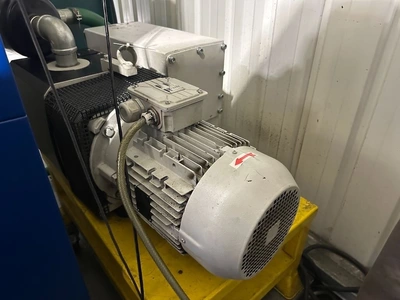

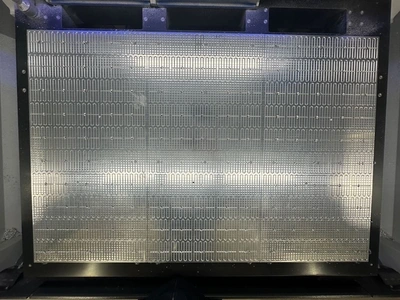

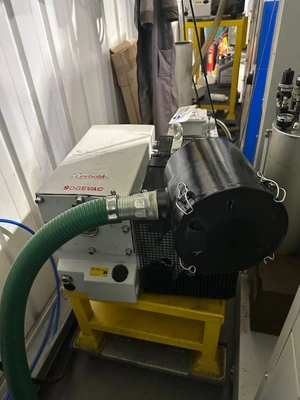

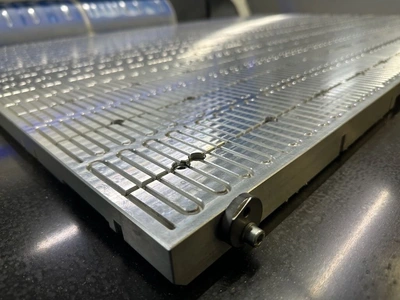

Designed for vacuum table or clamping systems
Ideal for sheet material, aluminium plate, plastics and composites
Speeds & general specification
Rapid feed rate: up to 22 m/min
Approximate machine footprint: 2,410 x 2,280 x 1,950 mm
Approximate machine weight: 2,500 kg

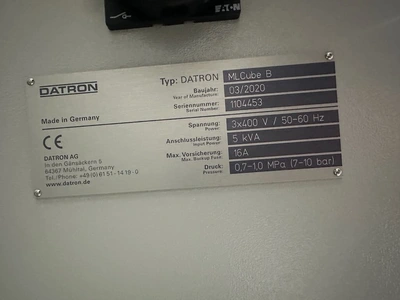

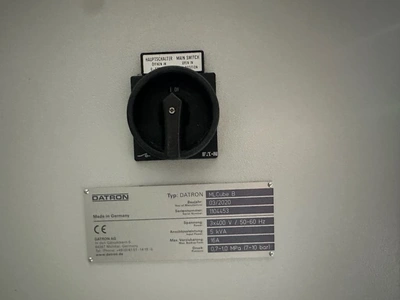

400V 3-phase power supply
Typical applications
Ideal for:
Aluminium plate machining
Front panels and enclosures
Large flat components
Nested parts production
Plastics and composite materials
Precision subcontract machining
