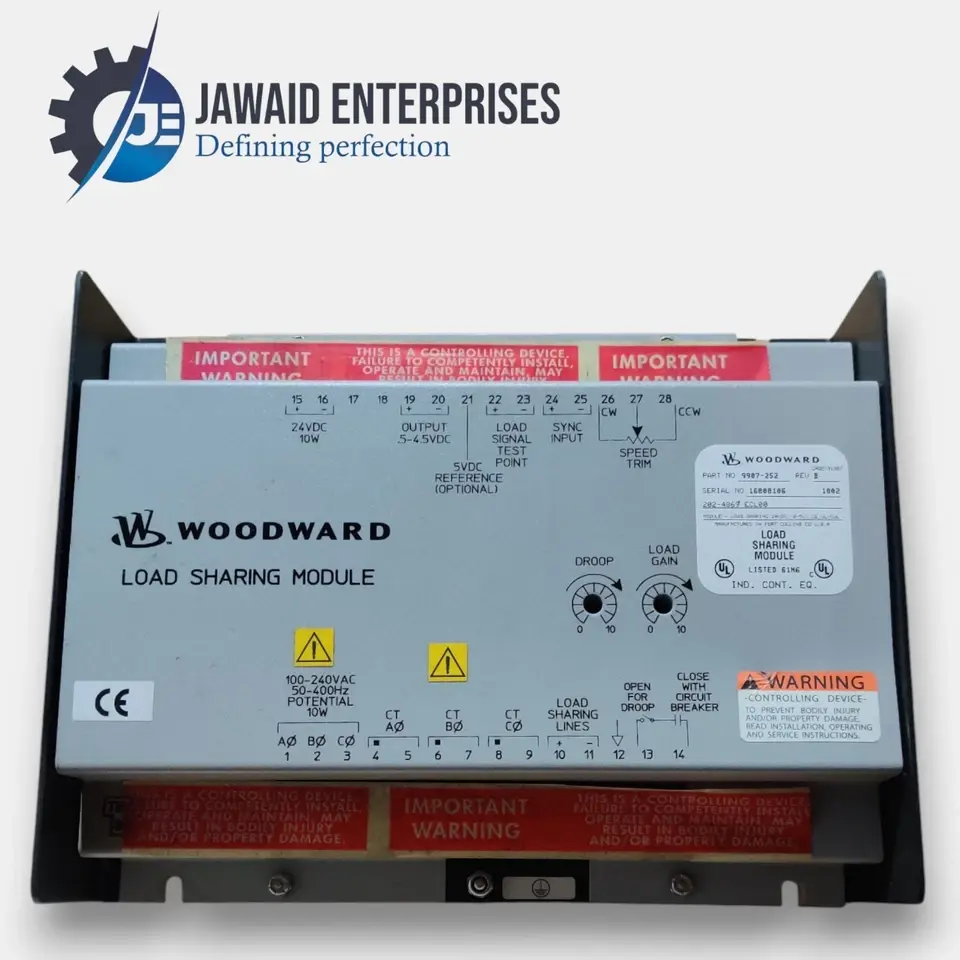

USED WOODWARD 9907‑252

Woodward 9907‑252 Load Sharing Module (CAT # 202‑4869): 24 VDC load share controller for generator paralleling with droop & isochronous support.
Description
Description
The Woodward 9907‑252 Load Sharing Module is an industrial‑grade control unit designed to coordinate and distribute load among multiple generators or engine systems. It provides isochronous and droop load sharing, allowing efficient power sharing in parallel generator sets and ensuring stability and balanced loading. It’s compatible with both Woodward and non‑Woodward control systems and works with synchronizers like the Woodward SPM‑A.
Key Features
Ensures Balanced Load Sharing: Provides reliable load distribution among multiple generators.
Isochronous & Droop Control: Supports both modes for flexible operation.
Compatible with Synchronizers: Works with Woodward SPM‑A synchronizer inputs.
Wide Voltage Range: Designed for 24 VDC systems (operates from 18–32 VDC).
Environmental Resilience: Tested at high humidity and wide temperature range.
Part Number: 9907‑252
Equivalent CAT Part #: 202‑4869
Product Type: Load Sharing Module
Brand: Woodward
Country of Origin: USA
Power Supply: 18–32 VDC (Nominal 24 VDC)
Load Sharing Input: 0–3 VDC
Analog Output Range: +0.5 to +4.5 VDC
Sync Input: Compatible with Woodward SPM‑A
PT Inputs: 95–130 VAC (line-to-line)
CT Inputs: 3–7 A RMS
Droop Range: 0‑11 % speed reduction
Dimensions: 273.6 × 59.2 × 214.1 mm
Operating Temperature Range: ‑40 °C to +70 °C (‑40 °F to 158 °F)
Humidity: Tested at 95 % non‑condensing
