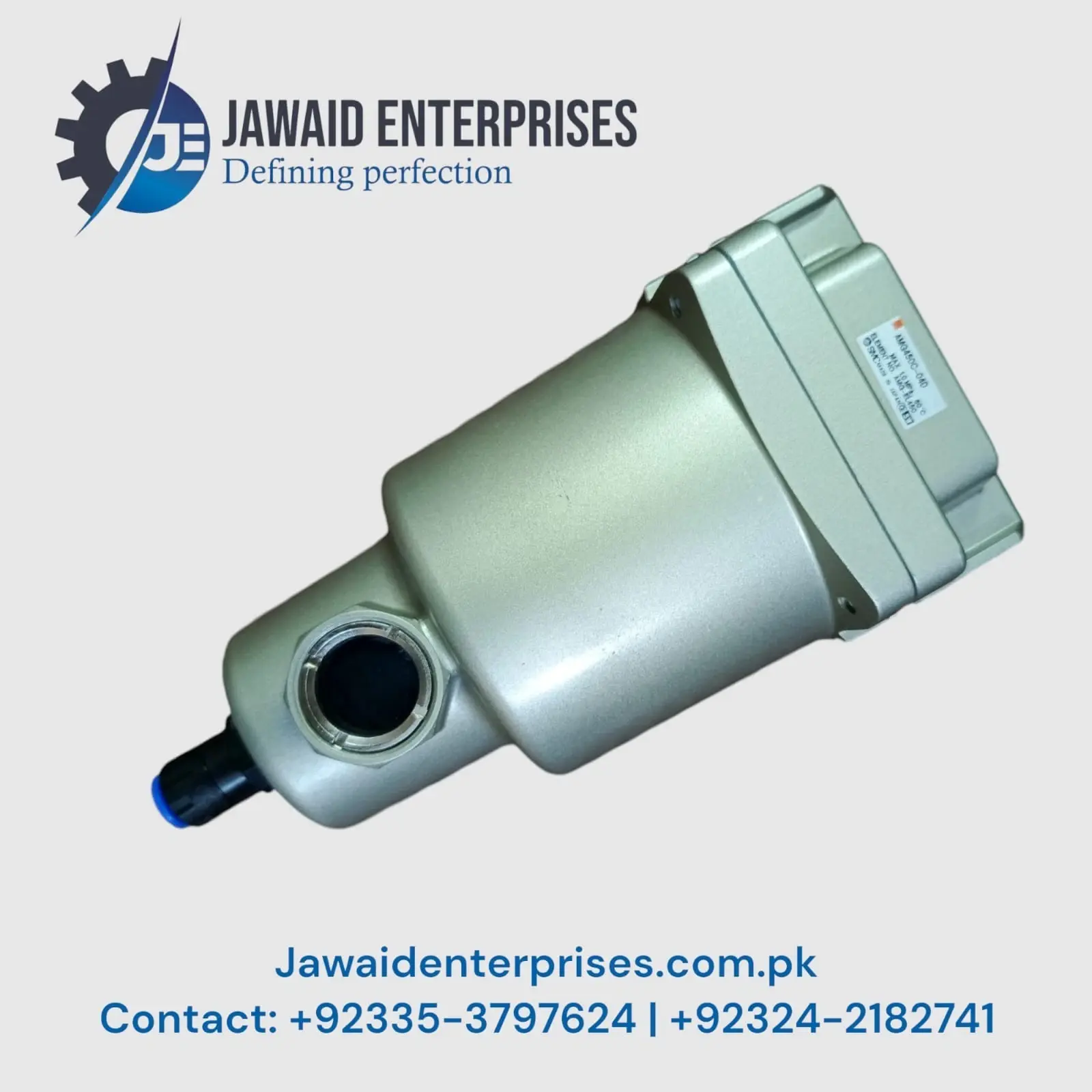

USED SMC AMG450C‑04D

SMC AMG450C‑04D Water Separator — compressed air droplet separator with 99 % water removal and auto drain, Rc 1/2 port, ~2200 L/min flow.
Description
The SMC AMG450C‑04D Water Separator is a high‑efficiency compressed air droplet separator from the SMC AMG Series designed to remove water droplets from compressed air lines, helping protect downstream pneumatic equipment and improve system reliability. Its internal separation element removes water with up to 99 % efficiency, and the built‑in auto drain ensures continuous operation without frequent manual draining.
Water Droplet Removal: Efficiently separates and removes water droplets from compressed air with up to 99 % removal rate.
Auto Drain Function: Normally open (N.O.) auto drain port helps discharge accumulated water automatically.
AMG Series Quality: Part of SMC’s AMG Series designed for compressed air preparation systems.
Compact & Lightweight: Ideal for installation in air lines with limited space.
Wide Operating Range: Works effectively across typical compressed air pressures and temperatures (5 °C to 60 °C).
Part Number: AMG450C‑04D
Type: Water Separator / Droplet Separator
Series: AMG (SMC)
Connection Size: Rc 1/2 (Port 04)
Rated Flow: ~2200 L/min (ANR)
Water Removal Rate: 99 %
Auto Drain: Normally Open (N.O.)
Max. Operating Pressure: ~1.0 MPa
Operating Temp Range: 5 °C to 60 °C
Proof Pressure: ~1.5 MPa
Element Replacement Interval: ~2 years or when pressure drop reaches 0.1 MPa
Material: Aluminum body with internal separator element (standard rubber/fittings)
