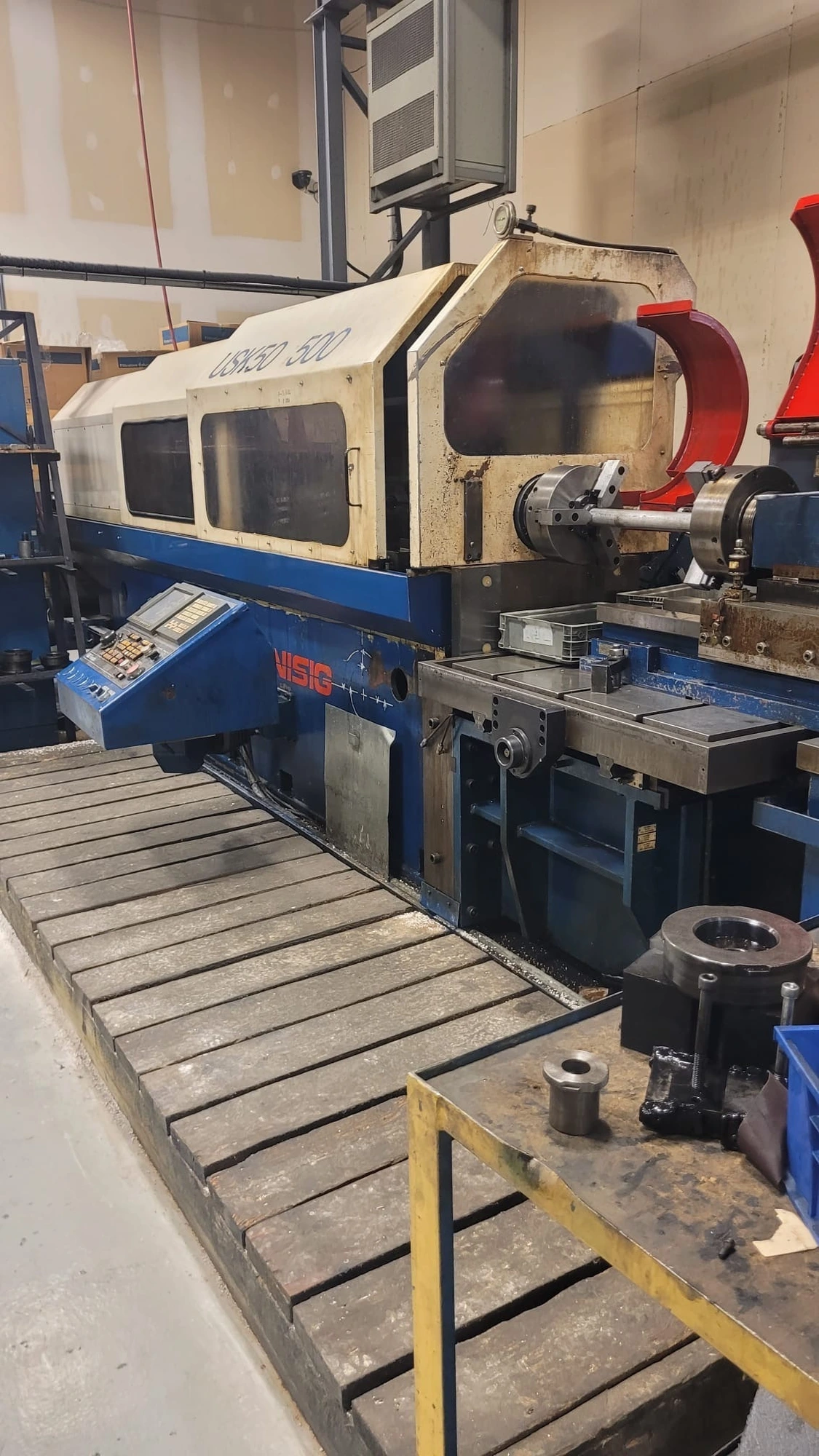

USED UNISIG USK50-1500
Overview
Unisig USK50-1500 2" x 60" CNC Gundrill, GE 3 Axis Fanuc CNC, Counter Rotation, 2" x 60" Capacity, 3 Jaw Chuck, Chip Conveyor, Coolant Filtration, Misc Tooling, T-Slotted Knee Table which the Workpiece is fixtured to. It has the capacity to automatically and productively drill .188"-2.0" diameter holes, 60" deep in many different types of materials
Specs
Unisig USK50-1500 2" x 60" 3 Axis CNC Gundrill
# Spindles 1
Drilling Diameter Range 0.188" - 2.0"
Drilling Depth 60.0" (with 6 whip guides)
Counter Rotation Slide Travel 60.0"
Z Axis Headstock Travel 100.0" (with no whip guides)
Feed Force 3043 lbs
Feed Rate 0.01-20.0 IPM
Rapid Traverse 250 IPM
Drilling Headstock Speed 0-6000 RPM Inf Variable
Drilling Headstock Power 15 HP
Drilling Headstock Power 30 HP OPT
Knee Table 40" x 60" L/R-F/B
Subtable Size 36" x 22" L/R-F/B
Top of Table to Drill Center 2" - 14"
Max Table Load 3,300 lbs
X-Axis Travel 28"
Y-Axis Travel 12"
Dimensions 190" x 145"
Weight 19500 Lbs
Coolant System
Volume Variable 30 GPM
Pressure Variable 1500 PSI
Filtration Dual Bag Filters
High Pressure Pump 15 HP
Coolant Capacity 300 Gal
Clean Tank 200 Gal
Dirty Tank 100 Gal Transfer Pump 3HP
Equipped With
GE 3 Axis Fanuc CNC, Counter Rotation, 2" x 60" Capacity, Guide Bushings, 3 Jaw Chuck, Chip Conveyor, Coolant Filtration, Misc Tooling, T-Slotted Knee Table which the Workpiece is fixtured to. It has the capacity to automatically and productively drill .188"-2.0" diameter holes, 60" deep in many different types of materials. Also available Sunnen Guspro Path-6 Horizontal Power Assist Tube Honing Machine (2007)
