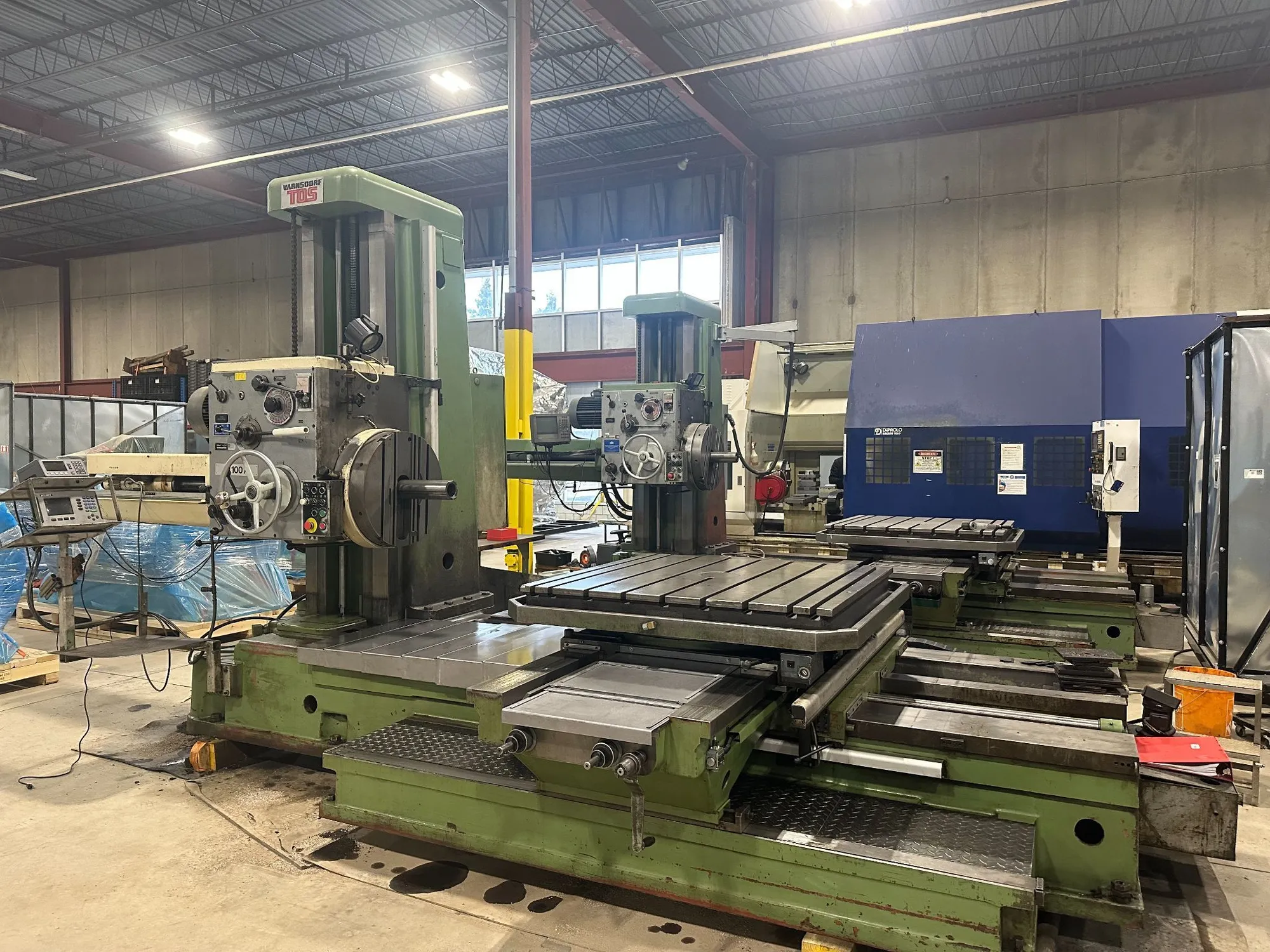

1996 TOS VARNSDORF W100A Horizontal Boring Mill: 4" spindle, 50 taper, 63"x44"x35.43" XYZ travel, 15 hp motor, 1,120 RPM. Features 4-axis ACU-RITE DRO, new Heidenhain DRO for B-axis, power draw bar, built-in facing head, coolant. Ready for purchase.
| SPINDLE DIAMETER | 4" | 101.6 mm |
| SPINDLE TAPER | 50 TAPER | 50 TAPER |
| X-AXIS - TABLE CROSS TRAVEL | 63" | 1,600.2 mm |
| Y-AXIS - VERTICAL TRAVEL OF SPINDLE | 44" | 1,117.6 mm |
| W-AXIS - SPINDLE TRAVEL | 35.43" | 899.92 mm |
| TABLE WIDTH | 49.2" | 1,249.7 mm |
| TABLE LENGTH | 49.2" | 1,249.7 mm |
| TABLE LOAD CAPACITY | 6600 lb | |
| SPINDLE MOTOR | 15 hp | 11.2 kW |
| SPINDLE SPEED | 1,120 RPM | 1,120 RPM |
| Weight | 34,000 LBS | 34,000 LBS |
4-AXIS ACU‑RITE DRO DISPLAY & SCALES
NEW HEIDENHAIN DRO DISPLAY FOR B‑AXIS TABLE WITH ROTARY ENCODER TO .001 DEGREE
NEW X‑AXIS COVERS
NEW Z‑AXIS COVER
50 TAPER POWER DRAW BAR WITH VARIOUS PULL STUDS / RETENTION KNOBS
BUILT‑IN FACING HEAD
COOLANT
MACHINE IS WIRED FOR 575V/3/60
AVAILABLE FOR IMMEDIATE INSPECATION & PURCHASE
