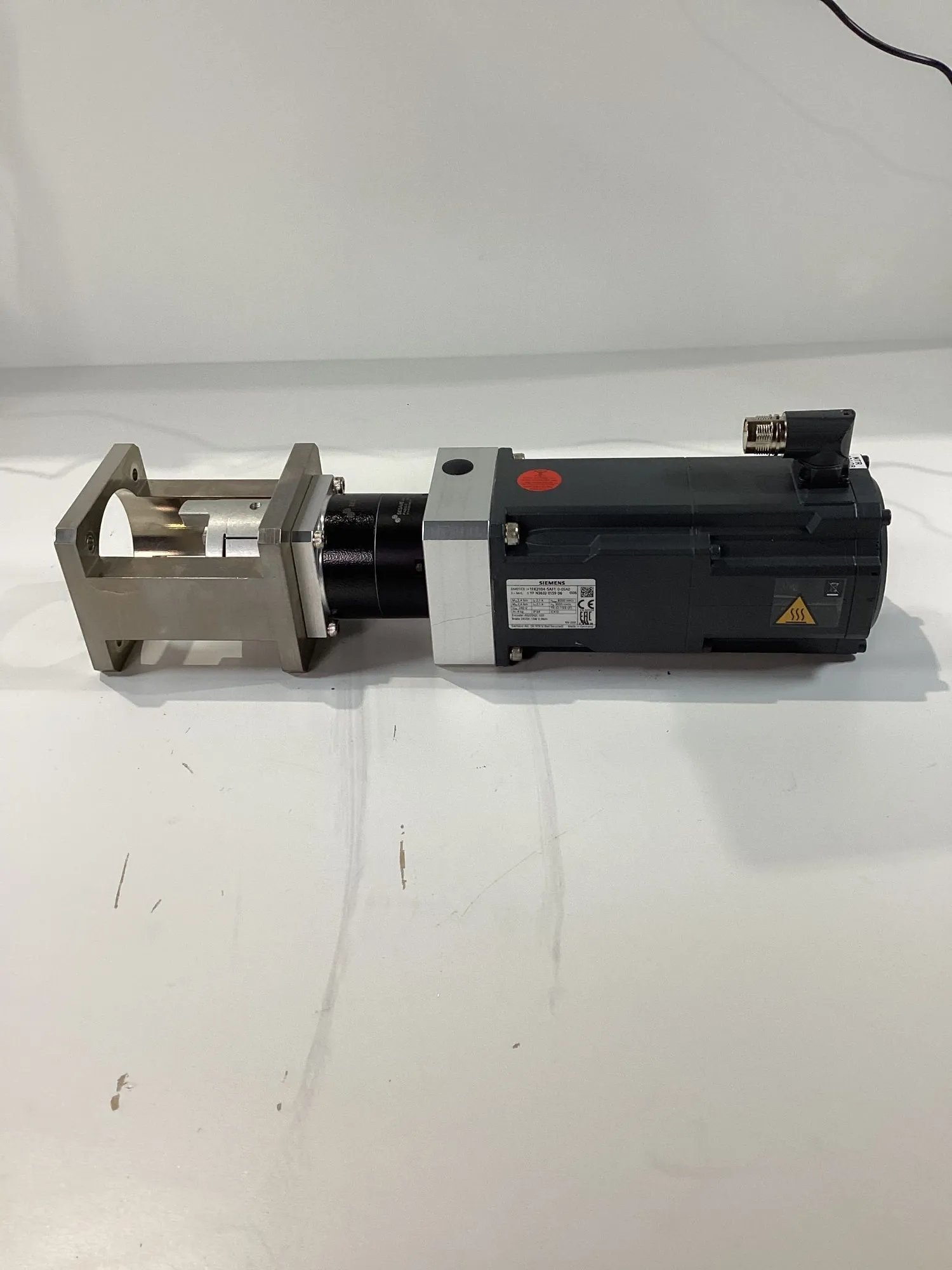

USED SIEMENS 1FK2104-5AF10-0SA0
Overview
Description
This listing is for a USED Siemens SIMOTICS servo motor, part number 1FK2104‑5AF10‑0SA0. It is designed for precision motion control applications in industrial automation and CNC systems. This unit is categorized as a 3‑phase AC servo motor and includes integrated encoder feedback for accurate speed and position control. Nameplate data confirms 3000 rpm rated speed, 6000 rpm maximum speed, and IP64 protection.
Specifications
| Dimensions | 15X4X5 | 15X4X5 |
|---|---|---|
| Weight | 13LBS | 13LBS |
Manufacturer: Siemens
Series: SIMOTICS 1FK2
Part Number: 1FK2104‑5AF10‑0SA0
Condition: USED
Motor Type: AC Servo Motor
Phase: 3‑Phase
Rated Torque (M0): 2.4 Nm
Rated Current: 2.1 A
Rated Speed (nN): 3000 rpm
Maximum Speed (nmax): 6000 rpm
Rated Voltage: 240 V
Protection Rating: IP64
Thermal Class: 155 (F)
Cooling Method: IC410
Encoder: AS22DQ G01 (as marked)
Standards / Compliance:
EN 60034
CE Marked
EAC Marked
Country of Manufacture: Germany
