USED WYSONG MTH 60-72

WYSONG MTH 60-72 CNC Hydraulic Press Brake offers 60T capacity, 72" length, and 6" stroke. Room for precision with Autogage CNC99 back gauge. Ideal for bending up to 6' x 10 Ga. Mild Steel. Condition: Used. Compact dimensions: 110"L x 67"W x 105"H.

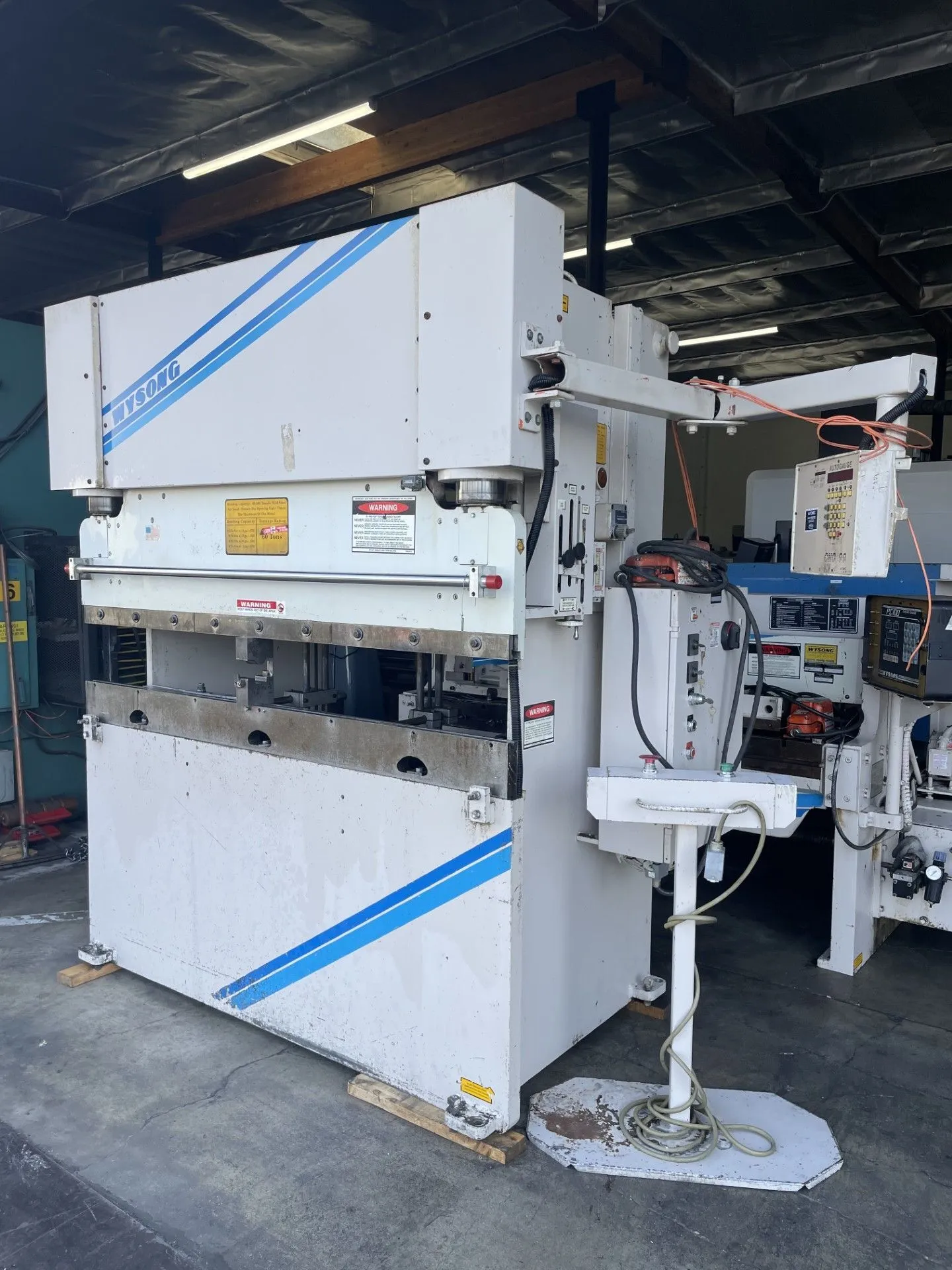

WYSONG MTH 60-72 CNC Hydraulic Press Brake #8164 #1

SPECIFICATIONS:
Tonnage: 60 Tons
Overall Length: 72"
Between Housing: 62"
Bending Capacity, 6' length: 6' x 10 Ga. Mild Steel
Bending Capacity, 5' length: 5' x 7 Ga. Mild Steel
Stroke: 6"
Adjustment: 9"
Shut Height: 9"
Open Height: 15"
Throat Depth: 6"
Approach Speed: 300 IPM
Pressing Speed: 20 IPM
Return Speed: 215 IPM
Oil Capacity: 15 Gallons
Motor: 7.5 HP, 1760 Rpm
Volts: 208-230/460
Amps: 22.2-21.6/10.8
Approx. Dimensions: 110" x 67" x 105" H
Weight: 6,200 lbs

EQUIPPED WITH:
Die Rail
Autogage CNC99 Back Gauge
