USED CONAIR DM-1

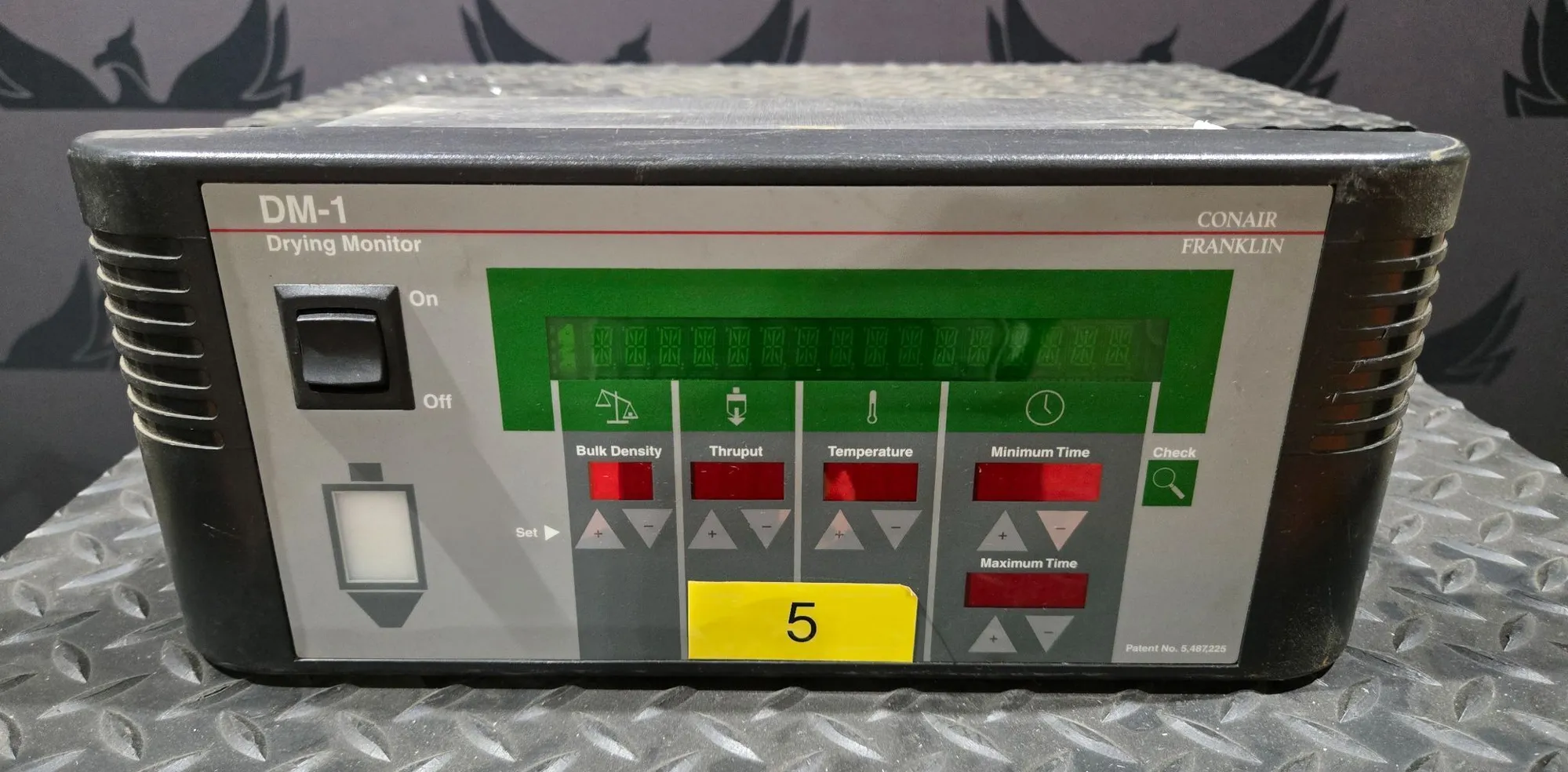

This listing is for a USED Conair Franklin DM‑1 drying monitor, designed for monitoring and managing resin drying processes in plastics manufacturing environments. The DM‑1 provides real‑time monitoring of key drying parameters and supports dewpoint measurement, external alarm output, and RS‑485 (DM‑Net) communications for integration into centralized monitoring systems. Nameplate data confirms 100/250 VAC single‑phase operation at 50/60 Hz, with a 1.5 A full‑load current rating. The unit features a front‑panel display with keypad controls and multiple rear‑panel interfaces for probes, printers, and network connectivity.

Manufacturer: Conair Franklin
Model: DM‑1
Condition: USED

Product Type: Resin Drying Monitor / Process Monitor

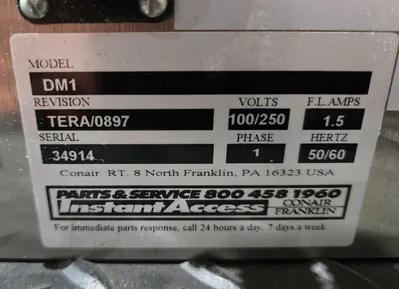

Revision: TERA/0897
Serial Number: 34914

Electrical:
Voltage: 100 / 250 VAC
Phase: Single Phase
Frequency: 50 / 60 Hz
Full Load Amps: 1.5 A

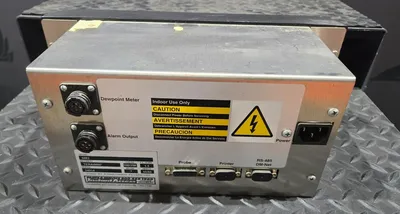

Rear‑Panel Interfaces (Verified from Photo):
• Dewpoint meter input
• Alarm output terminal
• RS‑485 communication (DM‑Net)
• External probe port
• Printer output port

Country of Manufacture: USA
