USED 1999 MITSUBISHI Diamond 32

Mitsubishi Diamond 32 BTS Heatset Web Offset Press
4-Color | 38" Single Web | 32-Page Production

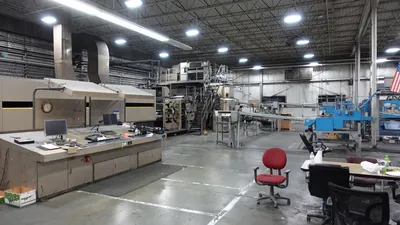

Mitsubishi Diamond 32 BTS lithographic offset press system configured as a four-color, 38" single-web heatset press.

1999 Mitsubishi Diamond 32 (4) Unit (1) Web Offset Press System
45.5” (1156mm) Cutoff x 38” (965mm) Width

Manufacturer: Mitsubishi
Model: Diamond 32
Year: 1999
Configuration: Single Web Heatset
Print Units: (4)
Cutoff: 45.5” (1156mm)
Web Width: 38” (965mm)
Plate Change: Semi-Automatic (SAPC)

(1) Mitsubishi flying splicer model 40 width 50 diameter rolls
(1) Integrated single pass constant tension infeed
(1) WPC Web guide for lateral web adjustment located at the infeed

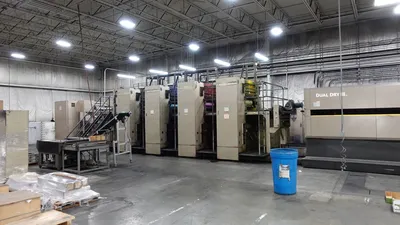

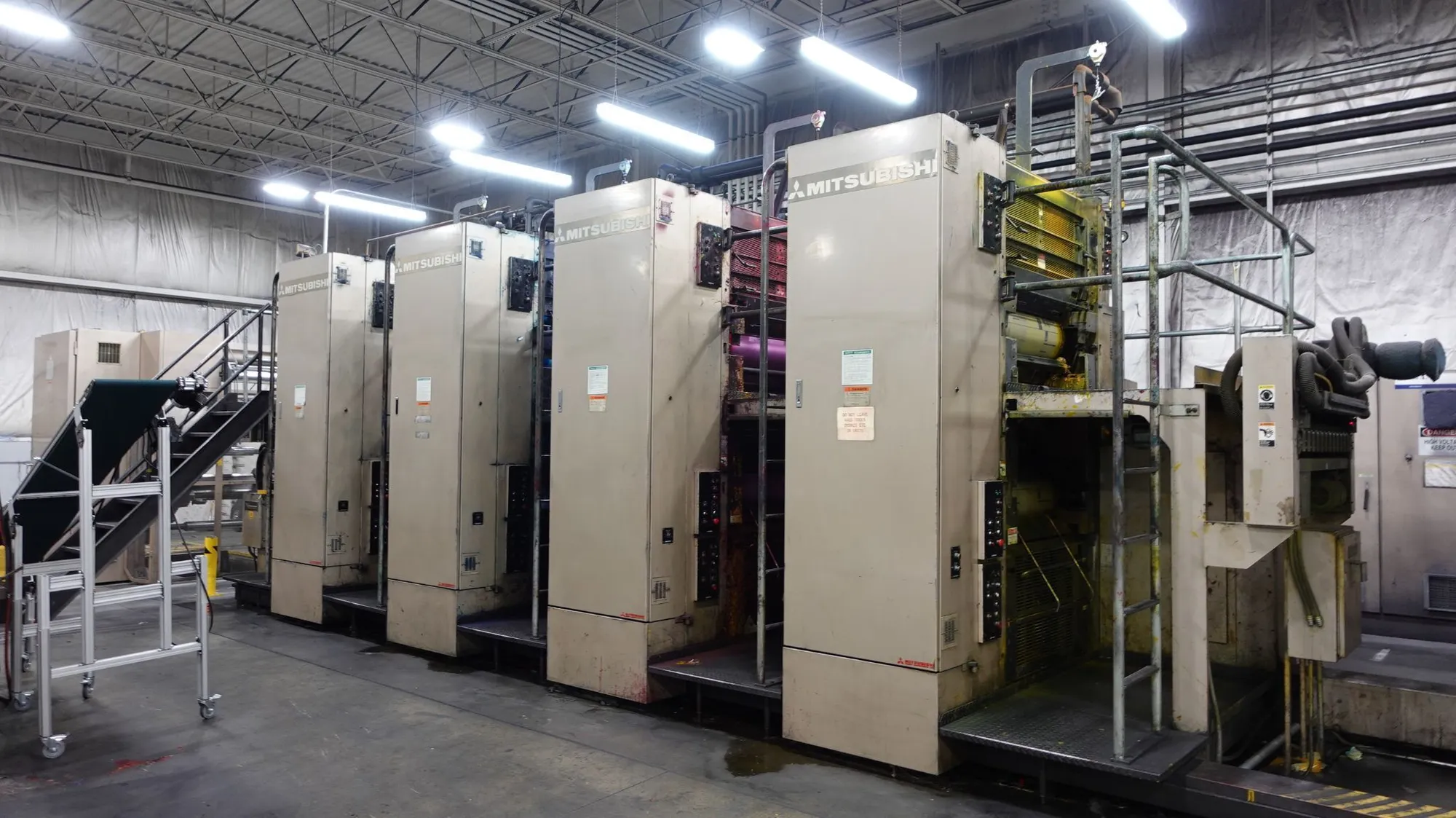

(4) Mitsubishi Diamond 32 Printing units, Semi-Automatic Plate Changers (SAPC), double around plate and blanket, remote inking and continuous dampening
(1) web catcher device

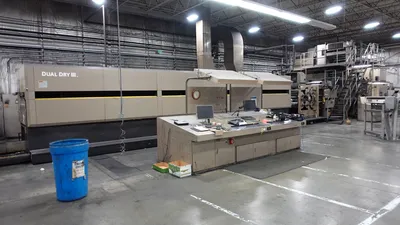

(1) Megtec Dual Dry III single pass gas fired dryer system, approx. 39’ in length
(1) Megtec smoke tunnel
(1) AWS Fountain solution recirculator
(1) web brake detector system
(1) WPC CCR Color To color register
(1) GMI Color Quick closed loop color for 4 unit 38” wide
(1) WPC web guide for lateral web adjustment located at the chillstand
(1) WPC Cutoff control – 4 ribbon control
(1) WPC silicone applicator
(1) Baldwin Perforator Unit
(1) folder air cooler

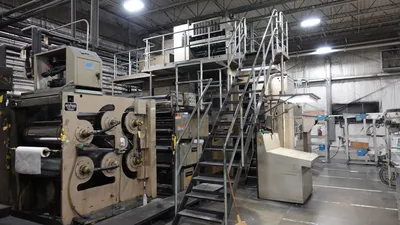

(1) Mitsubishi 6 roll chill roll stand
(1) Mitsubishi Folder superstructure with angle bars

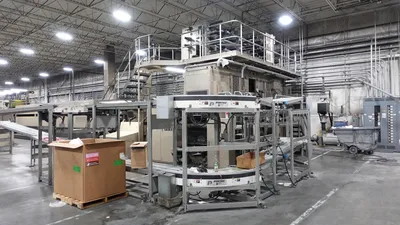

(1) Mitsubishi D32 combination folder for production of 32-page magazine, tabloid size, digest size, delta or delta-chop formats
