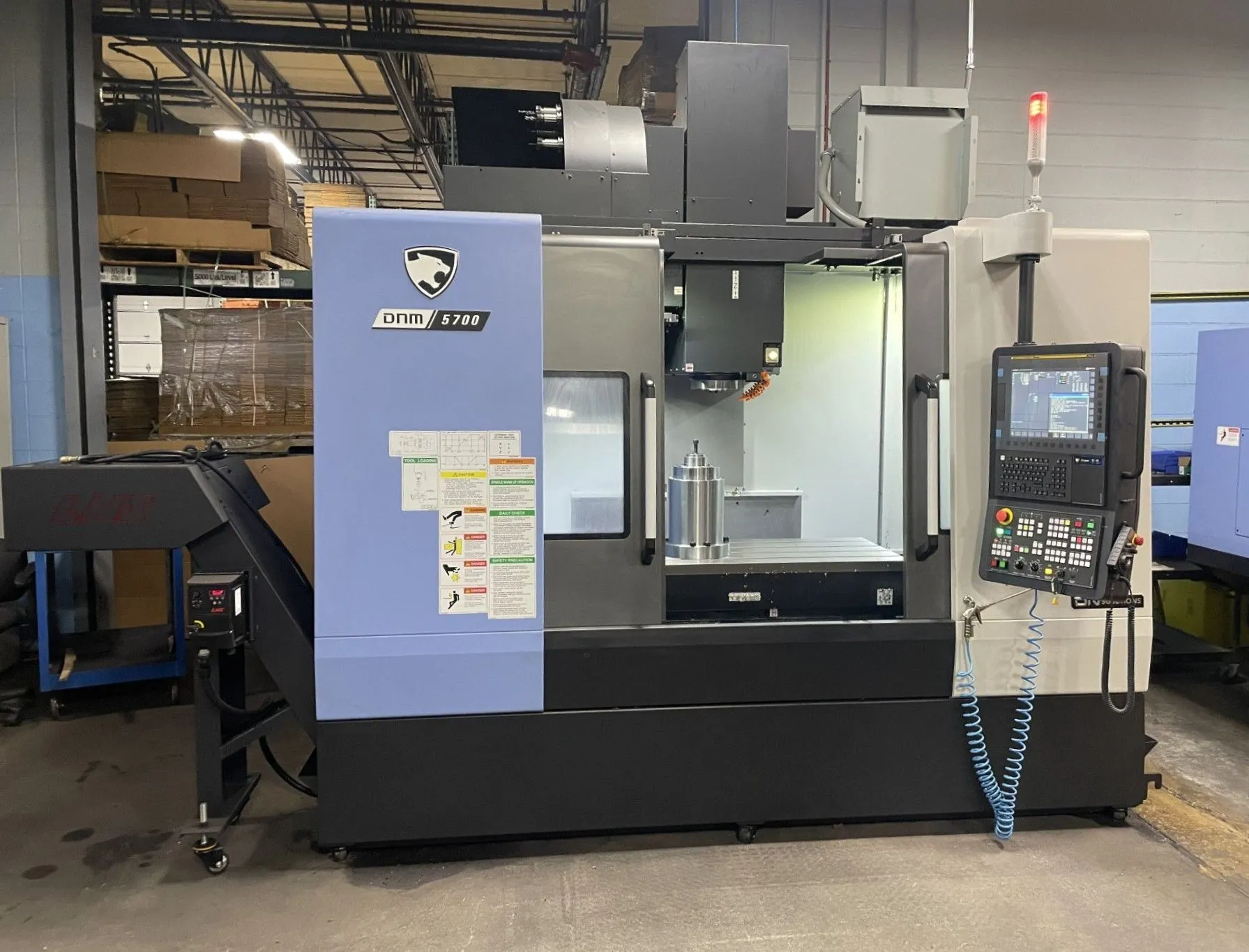

Like New, Samchully 4th Axis Rotary Table, Big Plus CAT 40, 12,000 RPM, Through-Spindle Coolant, Renishaw Probing. Only 500 Cutting Hours. Purchased and installed new in 2025, this originally owned 2023 DN Solutions DNM 5700 CNC vertical machining center is in plant, under power and available immediately.
| TABLE LENGTH | 51" | 1,295.4 mm |
| TABLE WIDTH | 22" | 558.8 mm |
| TABLE CAPACITY | 2,205 lb | 1,000.2 kg |
| X-AXIS TRAVEL | 41" | 1,041.4 mm |
| Y-AXIS TRAVEL | 22" | 558.8 mm |
| Z-AXIS TRAVEL | 20" | 508 mm |
| SPINDLE SPEED | 12,000 RPM | 12,000 RPM |
| SPINDLE MOTOR | 25 hp | 18.6 kW |
| SPINDLE TAPER | CAT 40 (BIG PLUS) | CAT 40 (BIG PLUS) |
| TOOL CAPACITY (ATC) | 30 | 30 |
| RAPID TRAVERSE - X AXIS | 1,417 in/min. | 36 m/min. |
| RAPID TRAVERSE - Y AXIS | 1,417 in/min. | 36 m/min. |
| RAPID TRAVERSE - Z-AXIS | 1,181 in/min. | 30 m/min. |
| ROTARY OR TRUNNION | Yes | Yes |
| Dimensions | 132" x 122" x 118" | 132" x 122" x 118" |
| Weight | 14330 | 14330 |
DN SOLUTIONS - FANUC i-SERIES CNC CONTROL
SAMCHULLY S-250F4 4TH AXIS ROTARY TABLE
OMP60 RENISHAW PROBING SYSTEM
THROUGH-SPINDLE COOLANT
12,000 RPM SPINDLE
THROUGH-SPINDLE AIR
LNS CHIP CONVEYOR
** ORIGINAL OWNER
** MACHINE MANUFACTURED DATE: JULY, 2023
** MACHINE CUTTING PRIMARILY ALUMINUM
** AS OF MARCH, 2026 - CUTTING TIME: 322 HOURS
** MACHINE PRICE NEW AS EQUIPPED: $185,000
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
