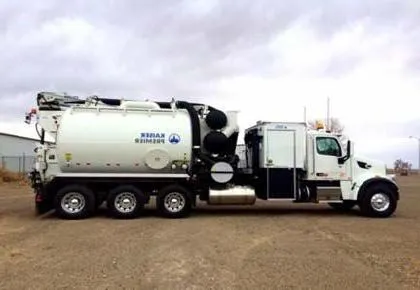

NEW 2026 KAISER PREMIER CV200

DEBRIS & WATER TANK
CYLINDRICAL DESIGNED DEBRIS/WATER BODY, 1/4" A36 MINIMUM TANK THICKNESS
12.8 CUBIC YARD DEBRIS TANK
2300 US GAL WATER TANK
HYDRAULIC DUMP DOOR LOCKING SYSTEM, ADJUSTABLE

ELECTRIC OVER HYDRAULIC BOOM
12" INSPECTION/SAMPLING PORT WITH LADDER ACCESS
DUAL SPRAY BARS
REAR DUMP DOOR AUTO SAFETY PROP LOCK FOR OPERATOR SAFETY

2" WATER FILL WITH BACTERIA BREAK
3" & 4" WATER FILL PORTS
6" OVER HEAD WATER FILL, W/ANTI SLOSH VALVE
WATER TANK SIGHT GLASSES (4)
FIXED TANK
SLOPED DEBRIS FLOOR
BOOM ASSEMBLY

HYDRAULICALLY POWERED UP/DOWN, LEFT/RIGHT, EXTEND/RETRACT BOOM
BOOM CONTROL ON WIRELESS REMOTE, MANUAL VALVE BANK AT REAR OF MACHINE

6" DIG TUBE
(2) 6" DIG TUBE EXTENSIONS
340 DEGREES OF BOOM ROTATION
HYDRAULIC DUMP DOOR OPEN/CLOSE SYSTEM

TOP GUN BOOM, NO BOOM HOSE ASSEMBLY REQUIRED
DIGGING DEPTHS UP TO 20' WITH OUT ADDITIONAL PIPE
WATER PUMP & WASH SYSTEM
HYDRAULIC DRIVEN TRIPLEX PUMP
STANDRAD: CAT PUMP 660 - 10GPM @ max. 3000 PSI
OPTIONAL: CAT PUMP 3560 - 20GPM @ max. 3000 PSI
VARIABLE PRESSURE AND FLOW ACHIEVED BY ELECTRONIC-OVER HYDRAULIC CONTROLS ON REMOTE AND CONTROL PANEL

DIRECT DRIVE TRANSFER CASE WITH AIR SHIFT
HOSE 1/2" X 75' WITH OPERATING PRESSURE OF 3000 PSI, RATED TO 4500 PSI
(3) 1/2" DIG WANDS/EXTENSIONS @ 6' LENGTH
SINGLE, DOUBLE, AND ROTATING NOZZLE TIPS
AIR PURGE WATER SYSTEM
POWERED RETRACT HOSE REEL
BANJO WATER STRAINER
GLYCOL SYSTEM
TRANSFER CASE OIL COOLER CIRCUIT (AUTOMATIC/MANUAL)
INTEGRATED CYCLONE WITH 4" DRAIN AND DUAL WASHOUT
8" VACUUM BREAKER/THROTTLE, HYDRAULICALLY ACTUATED

8" I.D. WIRE REINFORCED RUBBER/GUM SUCTION HOSE
HANDHELD WIRELESS REMOTE CONTROL FOR BOOM, WATER PUMP CONTROL, ENGINE SPEED, VACUUM BREAKER, DUMP DOOR,
UNLOADING, AND E-STOP
CONTROL PANEL LOCATED INSIDE, HEATED/INSULATED VANBODY ENCLOSURE
CONTROL PANEL MOISTURE RESISTANT/SEALED
PASSIVE TEMPERATURE MONITORING WITH ALARM
WATER RECIRCULATION ON THE GO
HYDROSTATIC WATER PUMP DRIVE WITH CHARGE FILTER
GEAR PUMP FOR CONTROLS AND POSITIONING EQUIPMENT WITH PRESSURE FILTER
POWDER COATED FABRICATED COMPONENTS AND TANK
STEEL HYDRAULIC TANK LOCATED INSIDE VANBODY WITH SIGHT GLASS/THERMOMETER AND IN TANK HYDRAULIC RETURN
FILTER
LED LIGHTS. 3 WORK LIGHTS ON REAR OF TRUCK, 2 MID BODY, 2 ON END OF BOOM WITH CORD REEL
LED LIGHTS. STOP/TURN & REVERSE
PULL POINTS FRONT AND REAR
SAFETY LANYARD ANCHORS (8)
ELECTRONIC, HIGH DECIBEL SAFETY BACK UP ALARM
STEEL FENDERS/STORAGE TRAYS

CHASSIS
KENWORTH T880
CUMMINS X15
ALLISON 4500RDS AUTOMATIC TRANSMISSION
TRIDRIVE
FULL CHASSIS SPECS AVAILABLE UPON REQUEST
KAISER PREMIER MODEL CV200
EPPS BOILER - 700,000 BTU
DOUBLE ACTING BULLDOZER CYLINDERS, 50 TON
OPTION: ROBUSCHI RBDV 145 BLOWER (6250 CFM, 27")
OPTON: CAT PUMP 3560 (20gpm)
BOOM AND TURRET GREASE BANK
LADDER
BACKUP CAMERA
LEVEL 2 - HEATING IN THE VANBODY AND HEATED VALVES
TURBO FLUSH
CV SERIES WEIGHT MONITORING SYSTEM
KENWORTH T880
CUMMINS X15
ALLISON 4500RDS AUTOMATIC TRANSMISSION
TRIDRIVE
