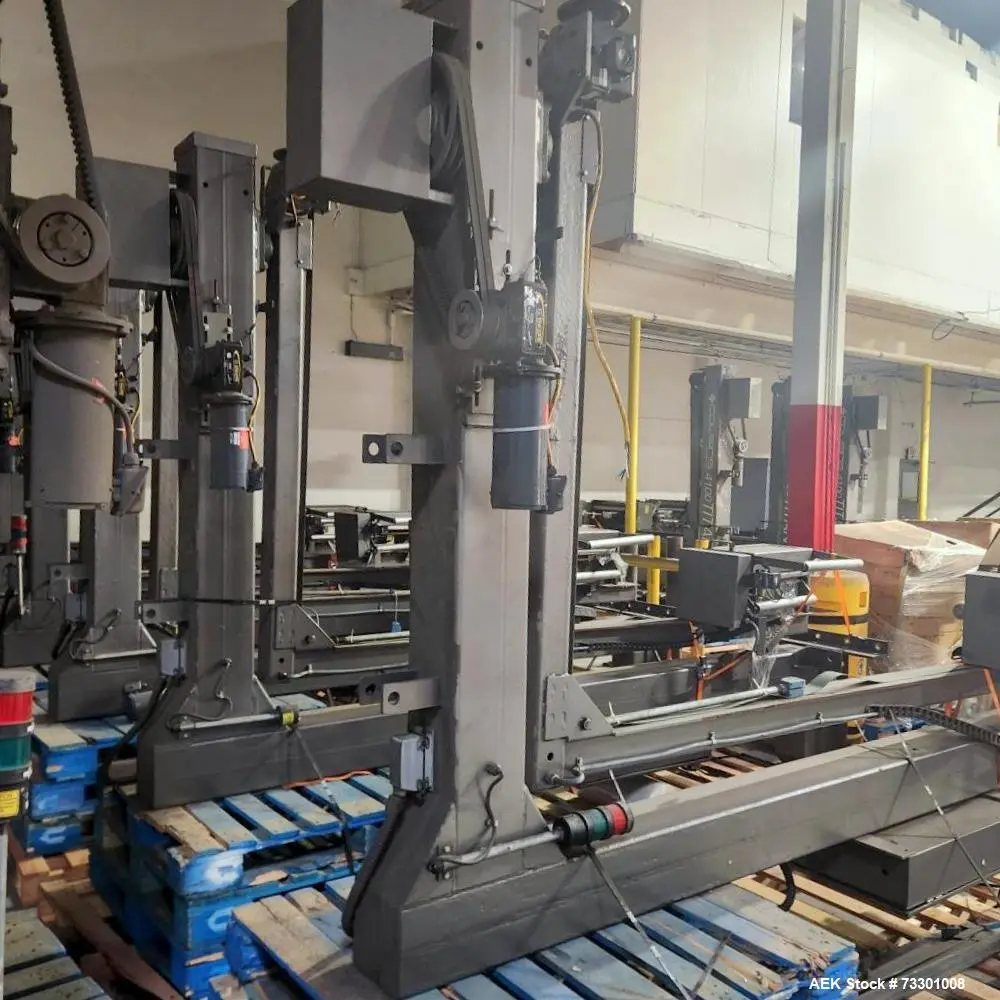

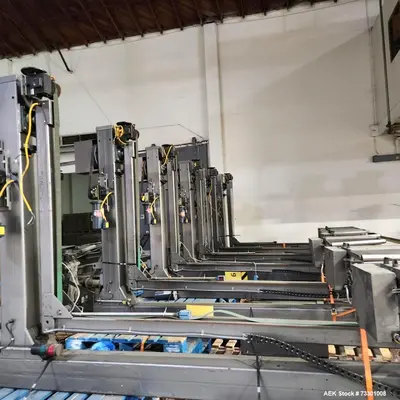

USED COUSINS TITAN 4100-35-FA

Used Cousins Packaging Automatic Stretch Wrapper, Model Titan 4100-35-FA. Rated up to 35 loads/hour; 50" L x 50" W x 86" H max. load size; 24" W x 24" L x 24" H min. load size; Double flange bearing support system; Twin V-belt drive pulleys with belt tensioner; Super Rapid Thread 20" capacity pre-stretch film carriage; Special film threading device; 33-313% fixed stretch capability; 1-12 RPM rotational speed c/w soft start acceleration; 1/2 HP DC variable speed motor; Panasonic PLC. 1/60/115V.

Used Equipment Facts About This Machine
Manufacturer Information:

Manufacturer: Cousins

Model: Titan 4100-35-FA

Condition: Used

Description:
The Cousins Titan 4100-35-FA Automatic Stretch Wrapper is a high-performance, fully automated pallet wrapping system designed for efficient load containment and stability. Capable of handling up to 35 loads per hour, this machine is ideal for industrial, warehouse, and logistics applications.
With a maximum load size of 50" L x 50" W x 86" H and a minimum load size of 24" W x 24" L x 24" H, this unit provides versatile wrapping capabilities for a variety of pallet sizes.
The system features a Super Rapid Thread 20" capacity pre-stretch film carriage, along with a special film threading device for efficient film loading and reduced waste. Offering fixed stretch capabilities from 33% to 313%, this machine ensures secure wrapping while optimizing film usage.
Powered by a 1/2 HP DC variable speed motor, the Titan 4100-35-FA provides 1-12 RPM rotational speeds with a soft start acceleration, ensuring smooth, controlled operation. The Panasonic PLC control system offers precision automation and easy integration into production lines.
This unit includes a twin V-belt drive system with belt tensioners and a double flange bearing support system, ensuring durability and long-term reliability.
Specifications:

Load Capacity: Up to 35 loads per hour

Load Size Capacity:

Max: 50" L x 50" W x 86" H

Min: 24" W x 24" L x 24" H

Film System:

Super Rapid Thread 20" capacity pre-stretch film carriage
Special film threading device
Fixed stretch capability: 33-313%

Rotational Speed: 1-12 RPM with soft start acceleration

Motor: 1/2 HP DC variable speed motor

Drive System: Twin V-belt drive pulleys with belt tensioner

Bearing System: Double flange bearing support system

Control System: Panasonic PLC

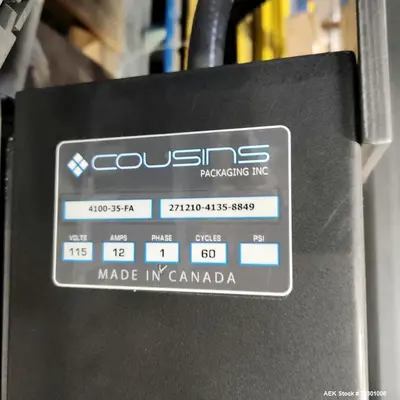

Power Requirements: 1/60/115V

Applications:

Warehouse & Distribution: Palletized load containment for shipping

Manufacturing & Logistics: Secure wrapping for industrial goods

Food & Beverage Industry: Stretch wrapping for packaged food products

Retail & Consumer Goods: Wrapping pallets for secure transportation

Common Product Uses:

Automated stretch wrapping for palletized loads
Industrial shrink wrapping to reduce damage during transport
High-speed wrapping system for warehouse operations
Secure film wrapping with variable stretch control
