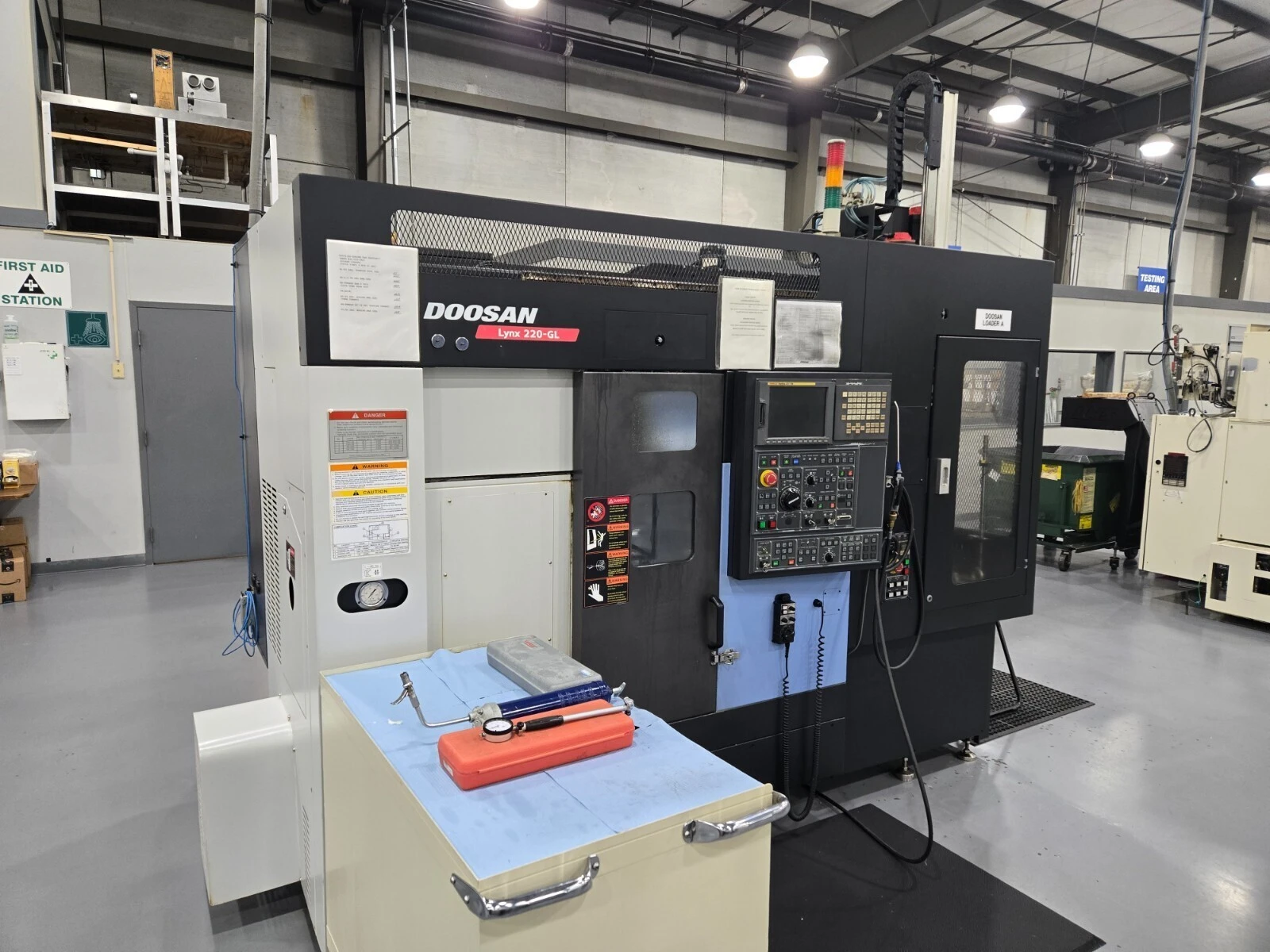

USED 2008 DOOSAN LYNX 220 GL

Ohio, United States
1,220Listings|569Followers
Overview
CNC Lathes

This 2008 Doosan Lynx 220 GL CNC lathe has 20.1" of swing, a 12.6" max cutting diameter, and a 6,000 RPM spindle. It runs a Fanuc 21i-TB control and comes with a gantry loader, chip conveyor, and parts catcher.

Specs
Swing
20.1"
510.54 mm
Machining Length
12.7"
322.58 mm
# Axis
2
2
Chuck Size
6"
152.4 mm
Power
20.1 hp
15 kW
Max RPM
6,000 RPM
6,000 RPM
Turning Dia
12.6"
320.04 mm
Control
CNC (Fanuc)
CNC (Fanuc)

Turret Stations: 12
Spindle Bore: 2.08"
Distance Between Centers: 12.6"

Equipped With

Fanuc 21i-TB Control
Gantry Loader
Chip Conveyor
Coolant Thru Spindle (65 PSI)
Parts Catcher
Rigid Tapping
Tool Presetter
