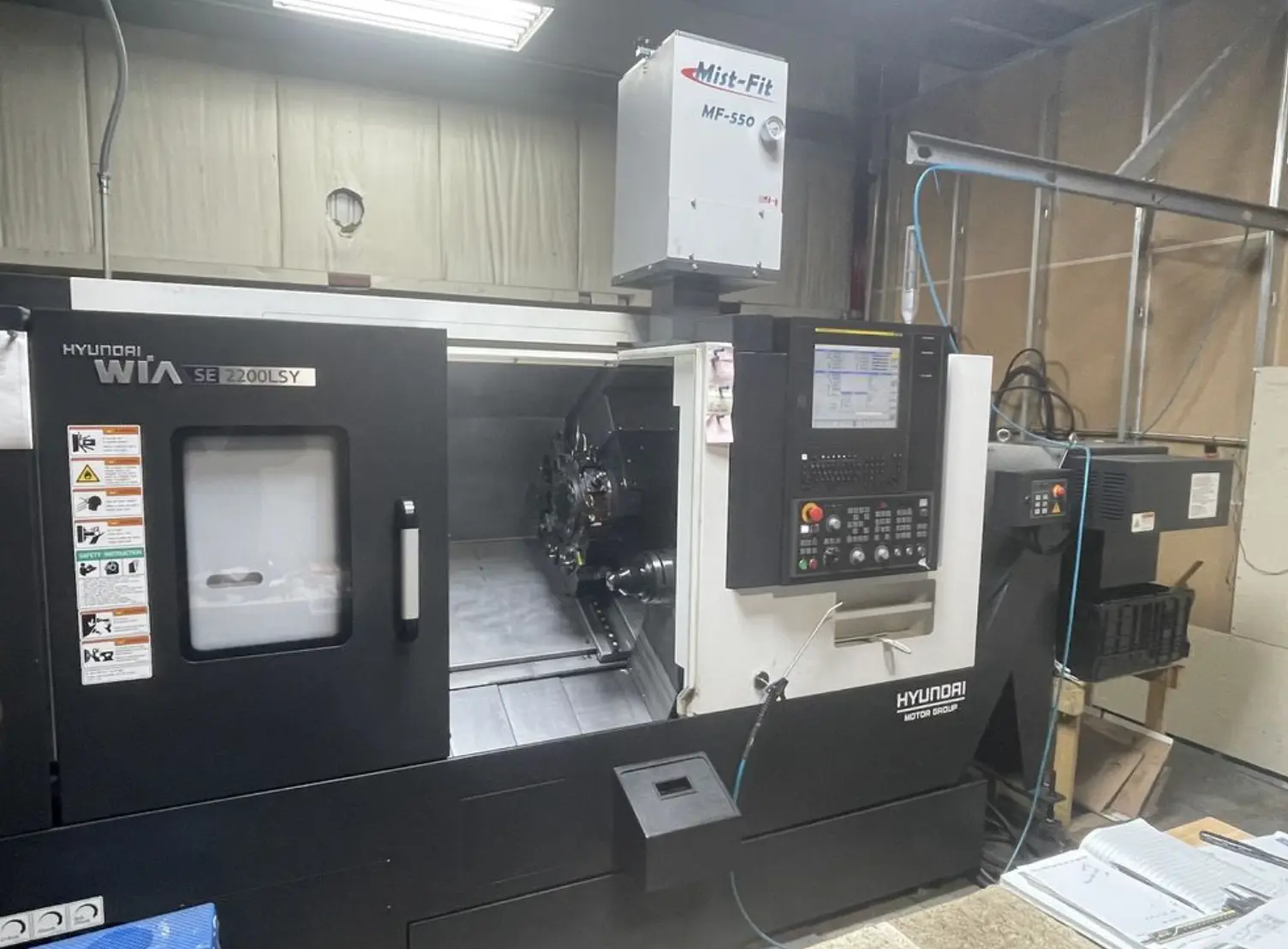

USED 2020 HYUNDAI WIA SE2200LSY
Overview
Description
Used 5-Axis CNC Lathe; 8” main and 5” sub chucks, 4.33” Y-axis travel, 11.811” max turning diameter. Equipped with Fanuc Oi-TF+, chip conveyor, high-pressure coolant, mist collector, washdown gun, and barfeed.
Specifications
| # Axis | 5 | 5 |
|---|---|---|
| Swing | 23.6" | 599.44 mm |
| Machining Length | 22" | 558.8 mm |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.6" | 66.04 mm |
| Power | 15 hp | 11.2 kW |
| Max RPM | 4,500 RPM | 4,500 RPM |
| Turning Dia | 11.8" | 299.72 mm |
| Tailstock | No | No |
| Control | CNC (Fanuc) | CNC (Fanuc) |
Main Chuck Size:8″
Sub Chuck Size:5″
Swing Over Bed:23.62″
Swing Over Carriage:23.62″
Max Turning Diameter:11.811″
Max Turning Length:20.078″
Y Axis Travel:4.33″(+-) 2.16″
Spindle Bore – Main / Sub:2.36″ / 1.65″
Bar Capacity – Main / Sub:2.55″ / 1.25″
Spindle Power – Main:15hp/11hp
Spindle Power – Sub:7.5hp / 3.7hp
Spindle Speed – Main / Sub:4,500rpm / 6,000rpm
C-Axis Indexing:0.001 degree
Rapid Traverse Rates – X/Y/Z:30/10/36
Equipped With
Fanuc Oi-TF+ Control w/ Helical Interpolation, Composite Control (enables C & A to move together in milling mode), Chip Conveyor, MP Systems High Pressure Coolant, Mist Collector, Wash Down Gun, LNS Quick Load Servo 80 S2 Barfeed.
