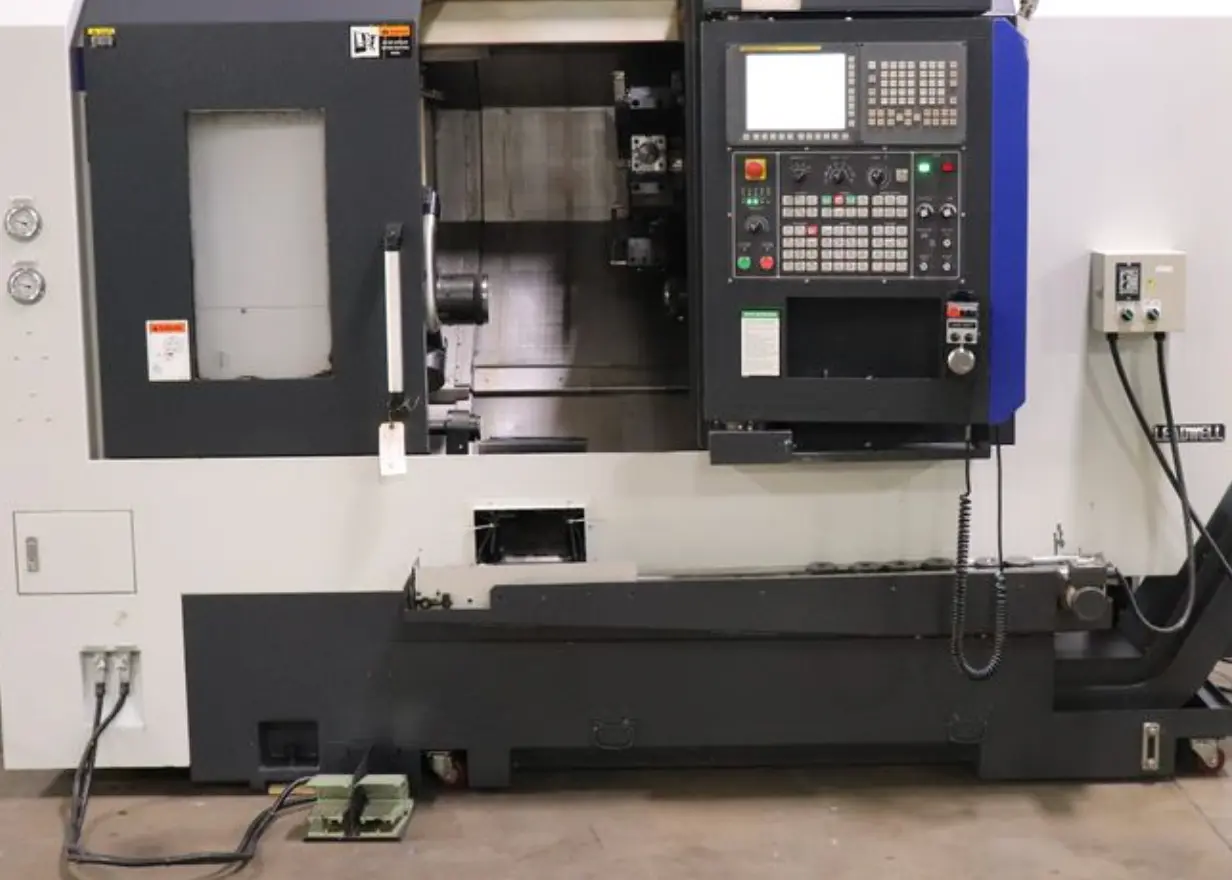

USED 2018 LEADWELL T-7SMY
Overview
Description
5-Axis CNC Lathe, used. Features a max work swing of 24.8″, 4500 RPM spindle, Fanuc OI-TF control, live turret, and sub-spindle. Equipped with servo bar feed, coolant system, chip conveyor, and more.
Specifications
| # Axis | 5 | 5 |
|---|---|---|
| Swing | 24.8" | 629.92 mm |
| Machining Length | 21" | 533.4 mm |
| Chuck Size | 8" | 203.2 mm |
| Bar Capacity | 2.5" | 63.5 mm |
| Power | 25 hp | 18.6 kW |
| Max RPM | 4,500 RPM | 4,500 RPM |
| Turning Dia | 15.4" | 391.16 mm |
| Tailstock | Yes | Yes |
| Control | CNC (Fanuc) | CNC (Fanuc) |
Max Work Swing:24.8″
Swing Over Cross Slide:21.3″
Max. Turning Diameter:14.9″
Max Turning Length:18″
Max. Workpiece Weight:375 Lbs.
X-Axis Travel:8.1″
Z-Axis Travel:17.7″
Y Axis:+/- 1.97″ (3.94″ Total Travel)
B Axis Travel:(Sub-Spindle)19.7″ (16.93″ with parts catcher)
C Axis on Main & Sub-Spindle:0.001° (360,000 degrees)
Spindle Nose:A2-6
Chuck Diameter & Bar Capacity:8″ / 2.5″
Spindle Bore:3.0″
Spindle Speed:4500 RPM
Sub Spindle Nose:A2-5
Sub-Spindle Chuck Diameter & Bar Capacity:6″ / 1.63″
Sub-Spindle Spindle Bore:2.0″
Sub-Spindle Spindle Speed:6000 RPM
Turret Tool Stations:12
Indexing Time Tool-to-Tool:1.0 Sec.
Live Tooling Speed: 5,000 RPM
Electrical:220V/3PH
Equipped With
Fanuc OI-TF CNC Control, Edge Technologies Rebel V-65 Servo Bar Feed, Live Tool Turret, Qnty. 4 Live Tool Holders, Coolant System, Keyarrow Chip Conveyor, Hydraulic Turret Clamping, Parts Catcher, Tool Setter
