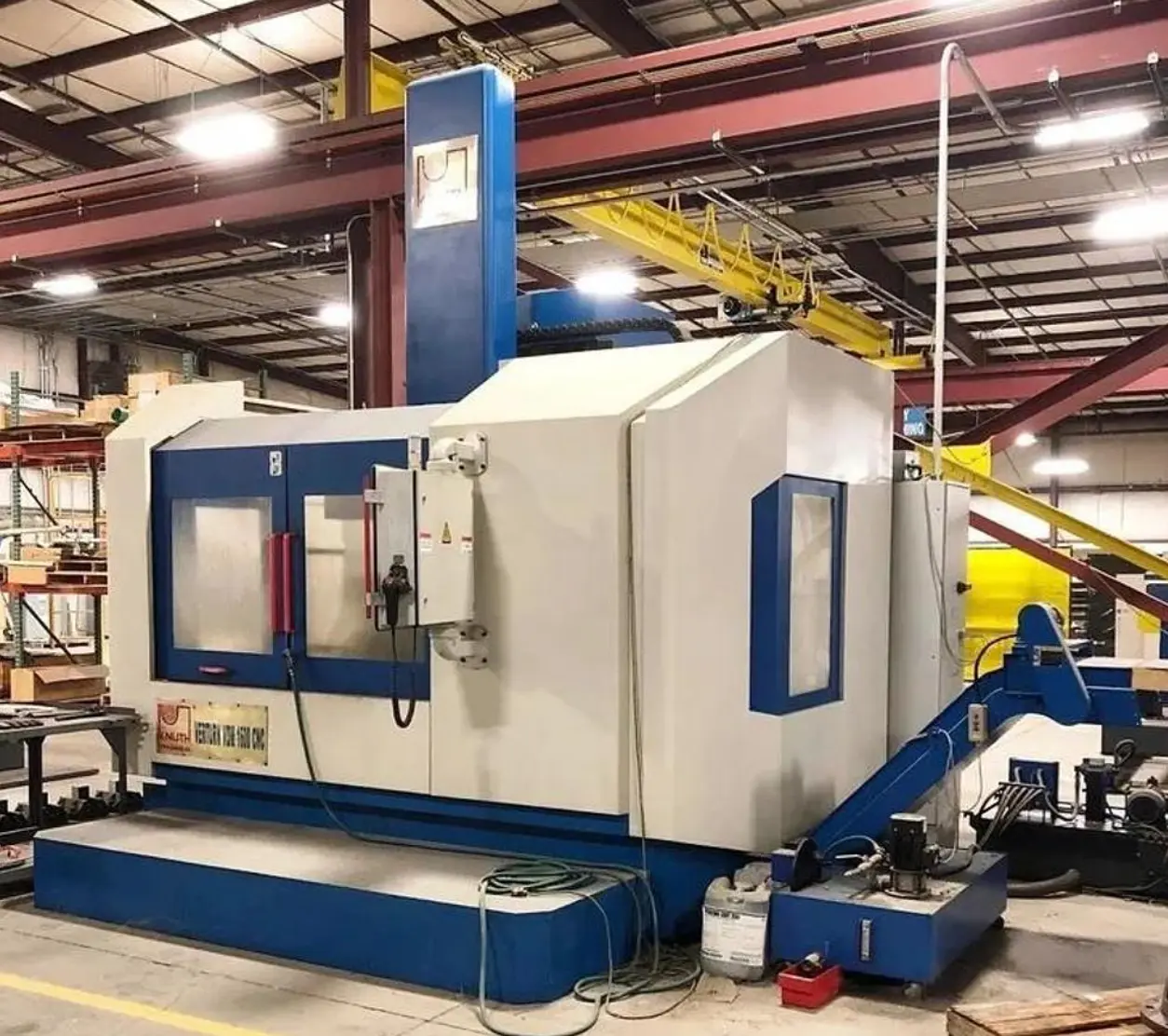

USED 2015 KNUTH VERTURN VDM 1600 CNC

2015 KNUTH VERTURN VDM 1600 CNC, ideal for heavy-duty tasks with a 63" swing and 60 hp. Equipped with Siemens 840D SL Controller, offering precision with X/Y/Z travel and rapid feeds.

Table Dia:55″; 1,397 mm
Swing: 63″; 1,600.2 mm
Work Ht-U/R: 47″; 1,193.8 mm
RPM: 200 RPM
Turning Dia: 63″
X Axis Travel: 40″
Z Axis Travel: 31″
W Axis Travel:33″
Work Piece Weight (max): 11,000 lbs
Speed Range:.5 – 200 RPM
Torque Max: 23,600 ft lb
Lathe Chuck Dia: 55″
Rapid Feed X axis: 236 IPM
Rapid Feed Z axis: 236 IPM
Feed W axis: 17 IPM
Tool Weight: 55 lbs
Main Motor Drive: 60 HP

Siemens 840D SL Controller
